Automatic lining machine


¡¡

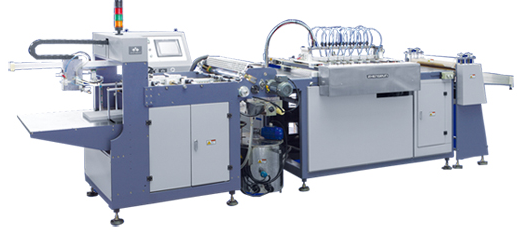

   YFD-AFM 540S Automatic lining machine







FEATURES:

¡¡

1¡¢ The feeder adopts back-push feeding system£¬which is controlled pneumatically, and its structure is simple and reasonable

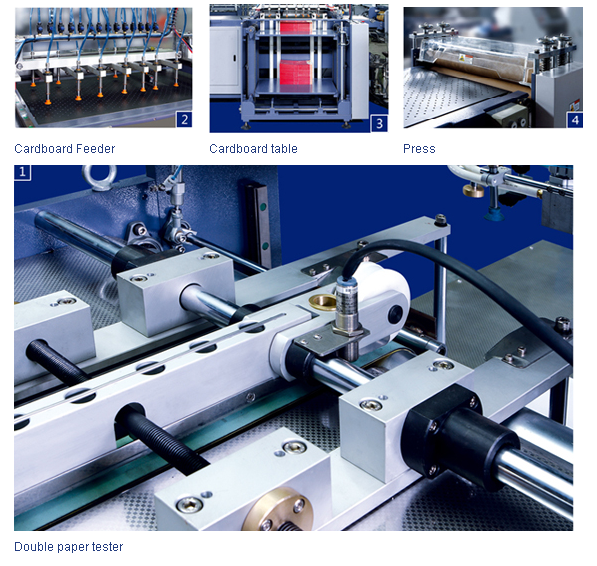

2¡¢ Adopt imported ultrasonic paper tester double to keep two pieces of paper from entering Into the machine at the same time

3¡¢ The cardboard feeder is controlled by linear guide line and servo motor, its location is correct and quick

4¡¢ In order to improve working speed£®cardboard table adopt on -line feeding

5¡¢ It adopts PLC control£¬featuring in simple operation. The troubles arm displayed directly on the HMI, which helps the operator easily remove them.

¡¡



¡¡

¡¡

MAIN TECHNICAL PARAMETER



Paper Size (A¡ÁB)



MIN:100¡Á100mm

MAX:540¡Á800mm

Paper Thickness
Cardboard Tickness (T)

100¡«200/m2
1~3mm

Finished Product Size (W¡ÁL)

MAX:540¡Á800mm
MIN:100¡Á100mm

Max Quantity of Cardboard
Precision

1 pieces
¡À0.50mm

Product Speed
Motor Power

¡Ü25sheets/min
4kw /380v¡¡3phase

Heater Power
Machine Weight

6kw
2200kg

Machine Dimension(L¡ÁW¡ÁH)

5600¡Á1700¡Á1860mm



¡¡

¡¡
