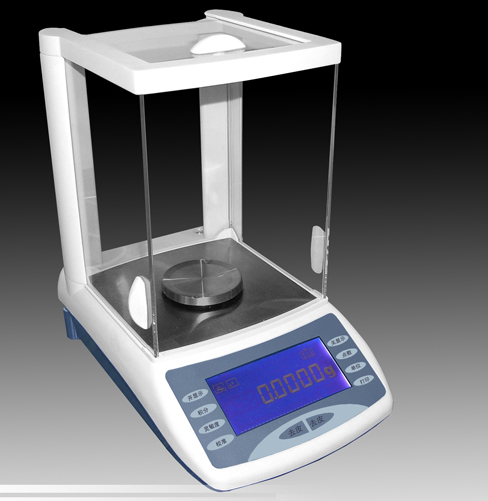

Electronic Balance
FA Series
Electronic Analytical Balance
Model£ºFA Series
|
Specifications
|
|
FA Series Electronic
Analytical Balance is the
most advanced electronic
balance. Accuracy,
stability, multi-function
and automation of
performance satisfy the
requirements of all quality
analysis in laboratories.
The balance employs high
performance single-chip
MCS-51 as the microprocessor
control and is provided with
standard signal output
interface for directly
connecting with printers,
computers and other
equipment. |
|
Characteristics |
|
Model |
FA1004N |
FA1104N |
FA1604N |
FA2004N |
FA2104N |
FA2104SN |
|
Capacity |
0-100g
0-110g
0-160g 0-200g
0-210g 0-60/60-210g |
|
Reading Accuracy |
0.1mg |
0.1/1mg |
|
Pan Diameter |
f80mm |
|
Output Interface |
RS232C |
|
Overall Dimensions |
324mm´217mm´335mm |
|
Net Weight |
7kg |
|
Power Supply |
220V/50Hz ,
110V/60Hz |
|

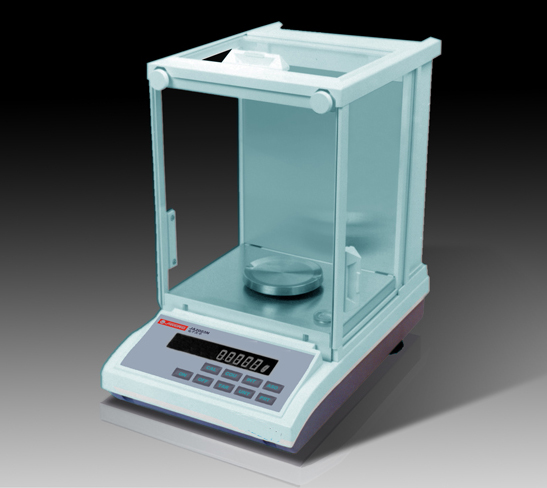

JA-N Series
Electronic Analytical Balance
Model£ºJA-N Series
|
Specifications
|
|
JA-N Series Electronic
Analytical Balance is the
most advanced electronic
balance. Accuracy,
stability, multi-function
and automation of
performance satisfy the
requirements of all quality
analysis in laboratories.
The balance employs high
performance single-chip
MCS-51 as the microprocessor
control and is provided with
standard signal output
interface for directly
connecting with printers,
computers and other
equipment. |
|
Characteristics |
Functions:
Taring
Accumulating
Fault alarm
Hanging weighing
Auto-calibration
Range transfer
Adjustable integrated time
Adjustable sensitivity
Units selection (g. carat.
oz)
Counting
Print
RS232C, output interface.
¡¡
Model
|
JA1003N
|
JA1203N
|
JA2003N
|
JA3003N
|
JA5003N
|
Capacity
|
0-100g
|
0-120g |
0-200g |
0-300g |
0-500g |
Reading Accuracy
|
1mg
|
Pan Diameter
|
f80mm
|
Output Interface
|
RS232C
|
Overall Dimensions
|
324mm´217mm´335mm
|
Net Weight
|
7kg
|
Power Supply
|
220V/50Hz ,
110V/60Hz
|
|

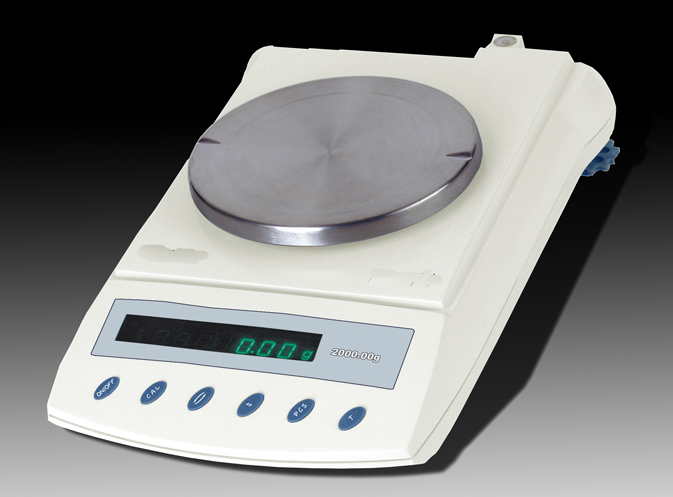

JH Series
Electronic Precision Balance
Model£ºJH Series
|
Specifications
|
|
JH Series Electronic
Precision Balance is a
balance essential to
laboratory quality
analysis and quality
control. It is
characterized by wide
range and high accuracy.
It can meet the
requirements of fine
weighing in various
operating environments.
The balance is provided
with standard signal
output interface for
directly connecting with
printers, computers and
other equipment. |
|
Characteristics |
Functions:
Taring
Accumulating
Fault alarm
Auto-calibration
Print
RS232C output interface.
¡¡
Model
|
JH1102
|
JH2102
|
JH2101
|
JH3101
|
JH4101
|
JH5101
|
JH6101
|
Capacity
|
0-1100g
|
0-2100g |
0-2100g |
0-3100g |
0-4100g |
0-5100g |
0-6100g |
Reading Accuracy
|
10mg
|
100mg
|
¡¡ |
Pan Diameter
|
f160mm
|
200mm´180mm
|
Output Interface
|
RS232C
|
Overall
Dimensions
|
360mm´230mm´77mm
|
Net Weight
|
5kg
|
8kg
|
Power Supply
|
220V/50Hz
|

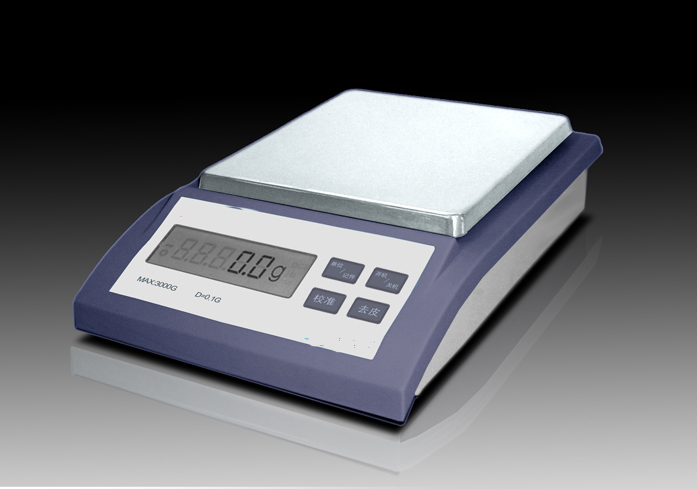

YP-N
Electronic Balance
Model£ºYP-N
|
Specifications
|
|
YP-N Electronic
Balance is new
advanced product
consisting of a
strain gauge
transducer and a
microcomputer.
It adopts SMT
surface
technology and
LCD display,
with a high
stability and
multi-functions.
It uses AC/DC
current and have
an over-load and
low-voltage
alarm system.
|
|
Characteristics |
Functions:
l
High sensitivity
l
Automatic
calibration with
automatic
calibration
program
l
Full range tare
l
Standard output
interface
l
Unites selection
l
Quick response
l
Automatic zero
track
¡¡
Model
|
YP102N
|
YP202N
|
YP601N
|
YP1201N
|
YP2001N
|
YP3001N
|
Capacity
|
0-100g
|
0-200g |
0-600g |
0-1200g |
0-2000g |
0-3000g
|
Reading
Accuracy
|
10mg
|
¡¡ |
100mg
|
200mg
|
Pan
Diameter
|
f110mm
|
f130mm
|
Overall
Dimensions
|
245mm´185mm´68mm
|
Net
Weight
|
1.8kg
|
Power
Supply
|
AC220V
¡À10%
1W DC
9V
|
¡¡
|
¡¡ |
|
|
