Flame Photometer

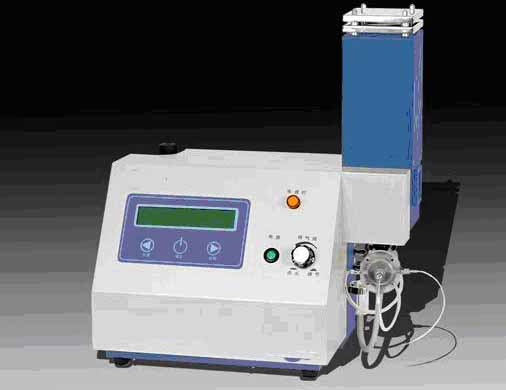

FP6410 Flame Spectrophotometer

Model£ºFP6410

Characteristics

A lot of new technology and new materials are adopted. Such features as LCD

display, menu-type instruction operation, curve storage, flameout protector and

outside printout are enabled by the application of top grade embedded mono-chip

computer circuit.



1.       Linear range: K: 0~30mg/|;

Related coefficient: bigger than 0.999

2.       Measuring range:

K: 0~10mmo|/L, Na: 0~200mmo|/L

3.       Reproducibility: (GV%):K: 1.5%(5mmo|/L or 50mmo|/L) , Na: 1.0%(140 mmol /L)

4.       Linear error: K: 2%; Na: 2%:

Response time: not longer than 8s

5.         Solution consumption: 4ml /min; flameout detection, automatic gas cut-off function

6.         RS232 interface, available to be connected with computer

FP640 Flame Photometer

Model£ºFP640

Characteristics

l        FP-640 flame photometer is an improved instrument based on the original model.

l        A digital display to show clear measurement results. Improved gas path system suitable for various fuels, easy to operate and with stable readings.

l        It meets the requirements of medical clinical test. In addition to new added functions of testing high contented K and Na, it has the detection function of Li salt taken by the mental patients.

l        Complete set including a main instrument, an air compressor, accessories and spare parts



Specifications

¡¡

Range

K:0¡«199

Na:0~199

Li:0~199

Sensitivity



K:0.2¦̀g/mL

Na:0.2¦̀g/mL

Linearity



K:0.2¦̀g/mL

Na:0.7¦̀g/mL

Drift

less than 3% within 15s

Reproducibility

3%

Aspiration rate

<6mL/min

Fuel supply

Gasoline or L.P.G.

¡¡
