Granular packing machine

DXDK-300 Multi-function automatic packing machine



Applications:

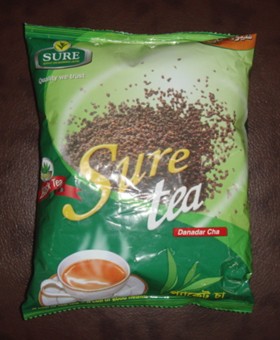

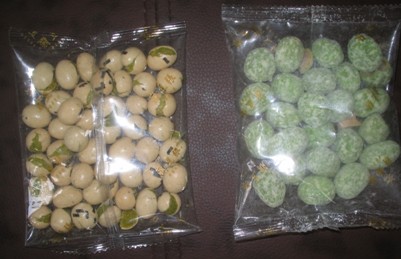

The machine is suitable for packing all kinds of irregular solid (granular, powder piece) and ointment, such as washing powder, coffee tea sugar, peanut, oatmeal and inflation foodstuffs etc The processes of bag making, measuring, filling sealing cutting and counting can be done automatically And also this machine could pack the M shape bag, which is very popular in the market now Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE PET/PE NYLON etc.

Features:

1. All stainless steel cover meets to GMP standard.

2. Equipped with antipollution and dustproof device.

3. Automatic adjustment of pouch size and filling range.

4. Equipped with Nitrogen and air filling system. The max filling range is 1500ML.

5. The operation facility is controlled by American intel computer, all function is displayed with digital

    screen.

6. Equipped with easy open system.

7. Color Belt printer and conveyor are as an option.

Technical Data

Type

DXDK-300

Bag size

L:70~180MM/W40~155MM

Capacity

35~60bag/min

Max Filling range

~150ml

Power

220V50HZ1.9KW

Weight

260kg

Dimension LXWXH

820*695*1740mm
