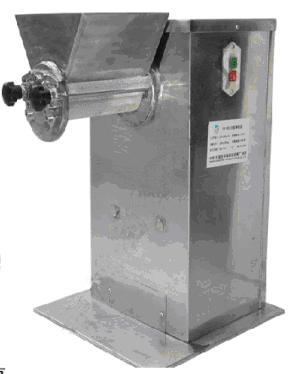

• Oscillating Granulator

Product type: YYK-90
Application: From powder processing as grains
Technical parameters:
Rotary drum diameter: 90 mm
Swing range: 360＜
Hob speed: 46r/min
Feed size: 300x240 mm
Output: 35-90 kg/h
Power: 1.1 KW 1440 r/min 380V
Overall dimension: 750x460x670 mm
Weight: 125KG
　

　

• Drying box

Product type: YKH-75
Application: Granule stoving
Technical parameters:
1. working temperature: room temperature above 10-300≧
2. Voltage: 220V
3. Power: 5KW
4. inside dimensions: 500〜600〜750mm
5. Overall dimension: 900〜1100〜1200mm
6. Weight: 140 kg
Note: this machine is not applicable for volatile, inflammable and explosive stuffs.
