The Complete Green Tea production line

(form farm to store for tea bag )

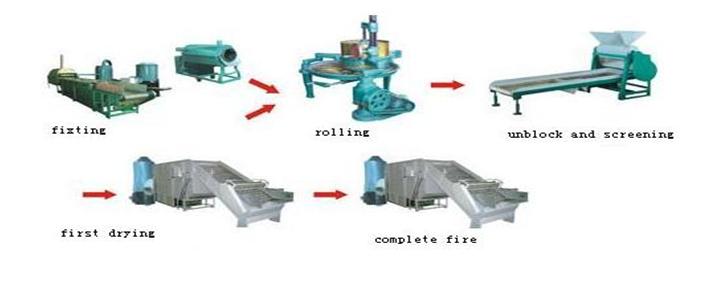

The complete Green tea production line Processing Procedure


Process:

1 Fresh tea leaves to dry tea to tea fannings

1)This is the first step called fixing.

2)This is the second step called fixing.

3)This is the third step called roasting

4)This is the fourth step called smashing. This machine can make your tea become powder. We called it green tea powder.

2 Filling, heat sealing ,threading ,labeling,and over wrapping

1)This is the fivth step called packing, involve the filling, heat sealing ,threading ,labeling, and over wrapping. Threading need the thread, Labeling need the tag, over wrapping need the envelop material and adhesive.

2)this is the sixth step called over-wrapping.this step need the cellophane


Machinery Show


Fixing Machine

Technical Data:

Part No

Main power

Output per hour

outsize (L×W×H) (mm)

6TCST-30

11.81kw

20-35kg/h

1855×485×1180

6TCST-40

19.09kw

55-80kg/h

2205×700×1400

6TCSZ-40

0.59kw

40-50kg/h

2205×700×1400

6TCST-60

1.3kw

150-180kg/h

4180×980×2190

6TCST-70

3.15kw

200-250kg/h

5070×1100×2620

6TCST-80

3.5kw

250-300kg/h

4600×1100×3500

6TCZS-50

5.48kw

30-60kg/h

5700×560×1350

6TCZS-150

10.07kw

80-150kg/h

6920×810×1600

6TCZS-300

12.37kw

150-300kg/h

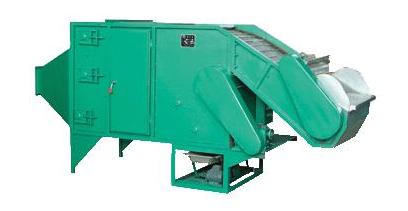

Drying Machine

Technical Data

Model

Outsize
(LxWxH)(mm)

Output
(kg/h)

Main power
(kw)

6TCHB-3.0

3100×840×1400

10-20

1.6

6TCHB-6.0

4853×1524×1650

≥25

0.75

6TCHB-10

5760×1530×1650

40-60

0.75

6TCHB-16

6380×1530×2000

≥30

1.1

6TCHB-20

6710×1780×2100

≥35

1.1

6TCH-30

6400×2120×2400

160-180

10.1

CTN6CHB-3.0

3100X840X1400

≥12

0.8kw


Rolling Machine

Technical Data

Model

Main power

Output
(kg/h)

Outsize
(LxWxH)(mm)

Pulverizer





Technical Data



Model

Capacity
Kg/h

Main shaft speed
Rpm

Pulverizing Fineness
Mesh

Motor Power
Kw

Machine Weight
Kg

Outsize
(LxWxH) (mm)

T180

75-100

4200

50-150

2.2

70

500x420x1250

T250

100-250

4200

50-150

5.5

180

650x600x1350

T320

250-300

4200

50-150

7.5

250

750x700x1450

T350

200-550

4200

50-150

11

400

850x800x1650

T400

300-800

4200

50-150

15

700

1050x1000x2

Tea bag machine



Technical Data

Part NO. English name Functions
CCFD6 Tea bag machine Out-inner bag are finished directly at the same time.
DXDC8Ⅰ Tea bag machine No  outside envelop, the tea bags are put in the box directly.
DXDC8Ⅱ Tea bag machine Out-inner bag are finished directly at the same time.
DXDC8IV Tea bag machine Out-inner bag are finished directly at the same time.
DXDC15 Tea bag machine Out-inner bag are finished directly at the same time.
  Auto-boxing device
AB01

  Date printing equipment-01
DP01

  Stirrer
ST01

  Output-counter
OC01


Over-wrapping machine

Technical Data

  Part NO. English Name   Unit Functions
BT-110 Over Wrapping Machine
     PC
one mould will be free with the machine
BT-400C-I Over Wrapping Machine
     PC
one mould will be free with the machine
BT-250A Over Wrapping Machine
     PC
one mould will be free with the machine
BT-2000B Over Wrapping Machine
     PC
one mould will be free with the machine
BT-2000A Over Wrapping Machine
     PC
one mould will be free with the machine
BT350-A Over Wrapping Machine PC one mould will be free with the machine
  Mould For BT-350A PC Define
  Printing Device PC Define

 Materials


Part NO English name  Unit
BP01 heat filter paper KG
BP02 Non-heat filter paper KG
BT01 Thread ROLL
BT02 Tag  KG
BT03 Envelop KG
BC01 Colloidal KG
BB01 BOPP20/VM_PET12/PE(1kg1000/bags) KG
CE01 Cellophane KG
PE01 PET yarn
(with thread and tag)
(6000pc/roll,6roll/box)
PC
WPC01 Without spinning cloth
(with thread and tag)
(6000pc/roll,6roll/box)
PC
