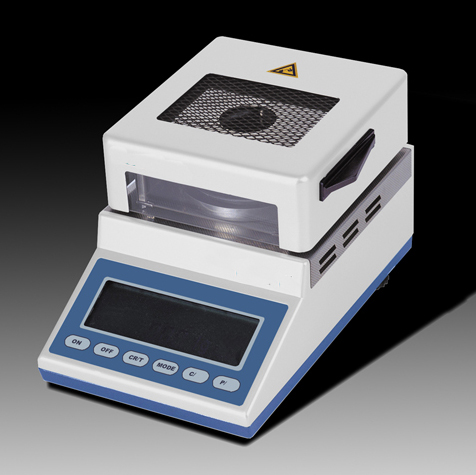

Moisture
Determination Meter
DHS16-A
Multi-functional Infrared Moisture
Analyzer
Model£ºDHS16-A
|
Specifications
|
|
DHS16-A Multi-functional
Infrared Moisture Analyzer
is composed of an electronic
balance and a heating
device. It adopts
electric-magnetic balance
and infrared heating
technology and a single-chip
microprocessor. With perfect
and complete functions, it
is durable, small and easy
to operate. It has the
functions of weighing,
temperature and time
setting, manual and
automatic heating selection
and adjustable display
parameters. Provided with
RS-232 interface, 8
parameters can be output
with 4 output modes for
selection. Therefore, the
instrument is widely used in
the fields of
pharmaceutical, food,
tobaccos, grains and
chemicals, et |
|
Characteristics |
|
Model |
DHS16-A |
|
Reading Accuracy |
0.001g |
|
Capacity |
0-100g |
|
Temperature Range |
Ambient to 160¡ãC |
|
Temperature Control
Accuracy |
¡À1¡ãC |
|
Moisture Measuring
Readability |
0.01% |
|
Moisture Measuring
Repeatability |
0.2%(sample³2g) |
|
Time Setting |
0-120 min |
|
Analytical Mode |
Manual, Automatic |
|
Control Mode |
Program control |
|
Display Parameter |
8 kinds |
|
Pan Diameter |
f
90mm |
|
Overall Dimensions |
325mm´195mm´195mm |
|
Power Supply |
220V+22V (50Hz)
or110V¡À11V
(60Hz)
220V-33V (50HZ) |
|
Net Weight |
6kg |
|

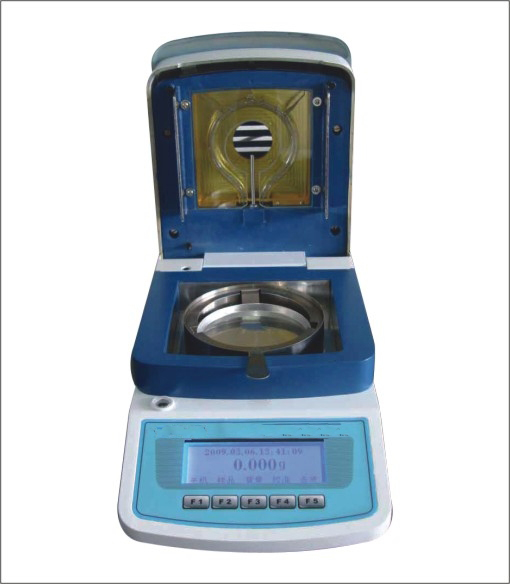

Strain Halogen
Moisture Analyzer (YLS16A)
Model£ºYLS16A
|
Specifications
|
|
The YLS16A Drying Moisture
Meter is a moisture tester,
which is easy to use and the
result is accurate. It has
following features: 1£© The
instrument applies the
technology of electronic
balance, halogen radiation
and temperature controlling.
2£© The instrument is small
in size, the operation is
easy and the functions are
complete. 3£© The heating
rate is rapid and the
instrument is evenly heated.
4£© The big LCD screen has a
blue and white switchable
background. The reading is
clear and easy to read out.
5£© The internal functional
keys can calibrate weight,
temperature and time; three
switch-off modes: manual,
time-controlled and
automatic; for the sample
unit, there are keys for
setting and the buzzer sound
indicating the heating
finish. 6£© The internal
database can store 50 pieces
of sample data. 7£© If the
instrument is connected to
RS232 serial printer, it can
print out 9 types of
parameters. 8£© During the
drying process, the
instrument will display all
the testing data. 9£© The
instrument can be widely
used in pharmaceuticals,
food and beverage, tobacco,
grain and chemicals either
as a precision instrument in
the laboratory, or for
routine test of purchased
goods or doing process
control in the factory.
|
|
Characteristics |
|
Main Technical
Specifications
|
Balance Capacity
|
20g |
|
Actual Scale
Division (Precision) |
2mg |
|
Readability |
0.01~0.1% |
|
Heating Source |
Halogen |
|
Heating Temperature
Range
|
60~160¡æ (adjustment
increment: 1¡æ) |
|
Heating Time Range |
0min~99min
(adjustment
increment:1min) |
|
Analysis Mode |
Manual,
Time-controlled,
Auto |
|
Data Storage
|
50 pcs |
|
Display Parameters |
9 Types: sample
weight before
drying, sample
weight after drying,
closing mode, time
left for heating
(min), heating
temperature, water
loss rate, drying
rate, wet weight
rate, and moisture
regain rate. |
|
Weight for external
calibration |
20g |
|
Diameter of Balance
Pan |
100mm |
|
Dimensions |
345mm¡Á190mm¡Á155mm |
|
Net weight |
4.6Kg |
|

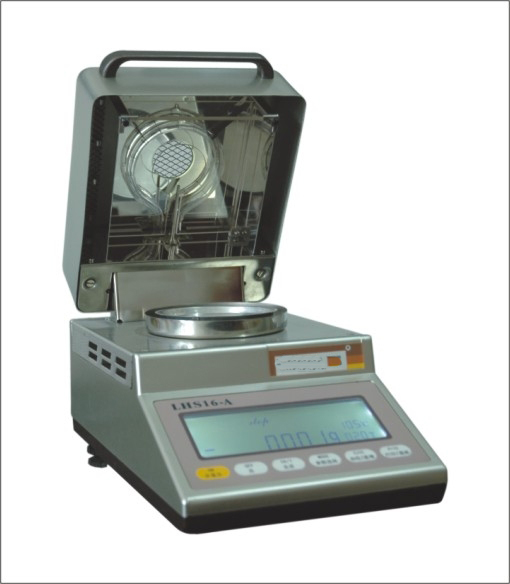

Electromagnetic
Balance Halogen
Moisture Analyzer
Model£ºLHS16-A
|
Specifications
|
|
LHS16-A Drying Moisture
Meter is also called halogen
moisture analyzer. The
instrument is a new product
which applies the technology
of electronic balance,
halogen radiation and
temperature controlling. The
instrument is robust and
small in size, the operation
is easy, the functions are
complete and the quality is
reliable. Under the control
of single-chip
microcomputer, it has
various functions, such as
weight calibration,
temperature and time
setting, manual or auto
heating selections,
adjustable display
parameters, and buzzer sound
indicating heating finish,
etc. With RS232 serial
printer or computer, the
instrument can print out 8
types of parameters and has
4 output modes for
selections. The instrument
is fast and can perform a
testing within few minutes.
The instrument is widely
used in pharmaceuticals,
food and beverage, tobacco,
grain and chemicals, either
as a precision instrument in
the laboratory, or for
routine test of purchased
goods or doing process
control in the factory. |
|
Characteristics |
|
Model |
LHS16A |
Time-controlled
Range |
1-120min |
|
Reading precision |
0.001g |
Analysis Method
|
Manual, Auto |
|
Weight Range |
0~100g |
Control Method |
Program Control |
|
Temperature Range |
Room temperature~160¡æ |
Display Parameters |
8 types |
|
Temperature Control
Precision |
¡À1¡æ |
Diameter of Balance
Pan |
90mm |
|
Readability |
0.01% |
Dimensions |
345mm¡Á190mm¡Á155mm |
|
Repeatability
|
0.2%(Sample¡Ý2g) |
Power Voltage |
220V(50Hz) or
110V¡À11V(60Hz) |
|
¡¡ |
|
