Photometer & Colorimeter

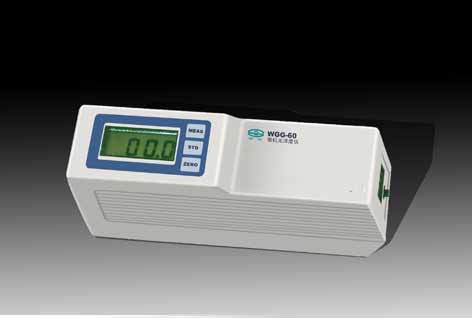

WGG-60 Micro Processor Glossmeter

Model：WGG-60

Characteristics

l Measurement of light-reflecting capability of sample surface.

l Used in all lines of business using paints and coatings such as furniture, paint-spraying, home-appliances as well as plastic products and packaging, etc.

Specifications

l Measurement range: 0-120 glossiness.

l Minimum value: 0.1 glossiness

l Accuracy: ±2 glossiness

l Weight (net): 2.3 kg

l Overall dimensions: 260mm ´ 60mm ´ 120mm

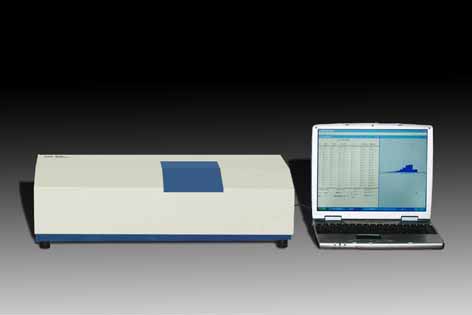

WJL Laser Granulometer

Model：WJL

Characteristics

l Compact in structure, small in volume and easy to operate.

l Automatic measurement control by computer based on Mie scattering theory.

l Widely used for laboratory analysis and quality control in the fields of materials, chemical industry, pharmacy, fine ceramics, paper-making, cosmetics and metallurgy with grain as production materials or intermediates.

Specifications

l Measurable particle range: 0.5-200mm

l Measurement time: Sampling:0.5s + several seconds for calculation

l Measurement accuracy: £±6% (weight medium position D50)

l Repeatability: £±6% (weight medium position D50)

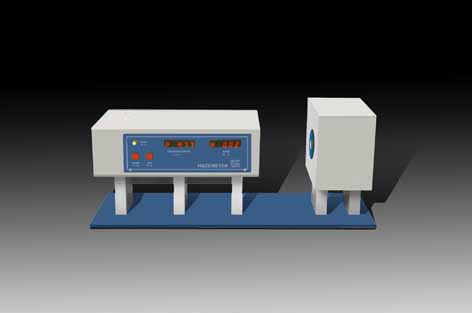

WGT-S Hazemeter

Model：WGT-S

Characteristics

l Measurement of transmittance and haze of the parallel plane sample of all transparent and semi-transparent (plastic board or sheet).

l Measurement of turbidity of liquid sample (water and beverage).

l In conformity with the standard of GB 2410-80, ASTMD 1033-61(1977), JISK7105-81.

l Microcomputer control and easy to operate.

l Display of transmittance and haze at the same time.

l Printer interface.

Specifications:

l Measurement range:

Transmittance: 0-100 %

Haze: 0-30%

l Accuracy:

Transmittance: £1 %

Haze: when £0.5%: £±1 %; when >0.5%: £±0.3 %

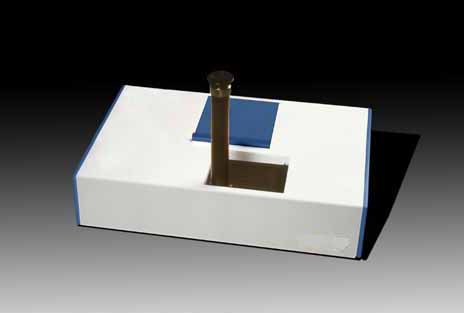

WSL-2 Tintometer

Model：WSL-2

Characteristics

l Visual measurement of color matching to determine material color.

l Design in conformity with internationally accepted color scale of Lovibond.

l Simple structure and easy to operate.

Specifications

l Measurement range:

Red R0.1-R79.9 Lovibond

Yellow R0.1-R79.9 Lovibond

Blue R0.1-R49.9 Lovibond

Neutral 0.1- 3.9 Lovibond

l Minimum Reading: 0.1 Lovidond

l Weight (net): 12.5kg

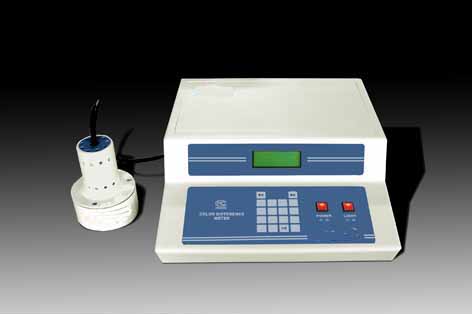

WSC-S Colorimeter and Color Difference Meter

Model：WSC-S

Characteristics

l Automatic measurement of the reflected color of substances in forms of board, powder and grain.

l LCD display.

l RS-232 interface and printer interface.

Specifications

l Illumination geometric conditions: o/d

l Sample light source:

Combination of CIF standard illuminant D₆₅ and 10° wide viewing field, X₁₀Y₁₀ and Z₁₀.

l Accuracy:DY £3, Dx £0.02, Dy £0.02,

l Repeatability:s _u(Y)£0.5, s _u(x)£0.003, s (y)£0.003

l Stability:D(Y) £0.6

l Weight (Net):17kg

l Overall dimensions: 410mm ´ 370mm ´ 160mm

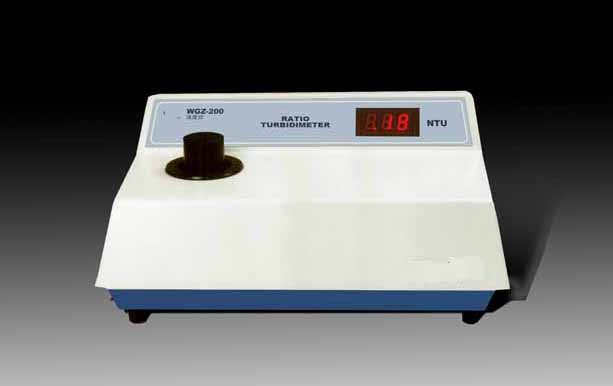

WGZ-200 Ratio Turbidimeter

Model：WGZ-200

Characteristics

l Measurement of light scatter and decay of the insoluble particles suspended in water or transparent liquids.

l Quantitative analysis of particle contents.

Specifications

l Measurement range::0.00-199NTU

l Minimum Reading NTU:0.01(0.00-1.99), 0.1 (2.0-19.9), 1 (20-199)

l Weight (Net):8 kg

l Overall dimensions::358mm ´ 323mm ´ 160mm
