Seed laboratory
specialized equipment
¡¡

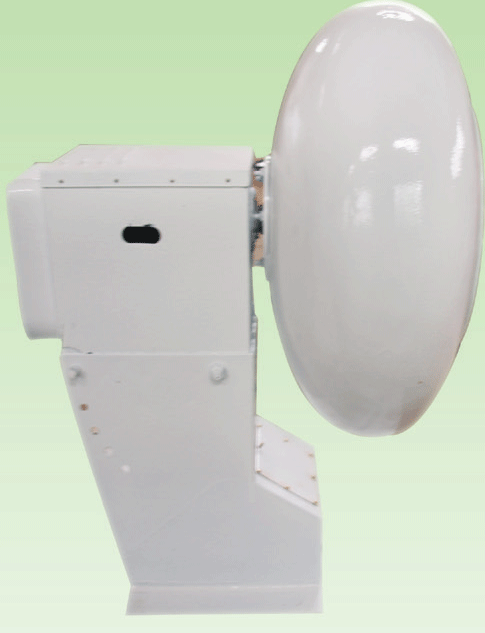

5ZW-3 type seed pill graining test
bench
¡¡
Equipment
uses
Product used
for smaller particles, appearance is not
uniform, the seeds of poor liquidity
surface coating must be the thickness of
the pill, agents, the formation of grain
seed as the core, the seeds for the
growth and development of various
materials for coating grain, make the
round shape size and weight of the seeds
are increased, improve the liquidity of
seeds.
Equipment performance
characteristic
Seed pill graining experiment platform
is using tilt installation pill graining
the earthen bowl uniform motion, drive
along the the earthen bowl ¡¯seeds in its
wall scrolling up and down, make the
seed fully mixing and mixed . To the
surface spraying a certain amount of
liquid, the surface even wetting; when
to add a certain amount pill graining
agent which is prepared in advance ,
they are mixed up and down between seeds
and pill graining agent ,fine powder of
pill graining agent evenly coated in the
surface of the seed, the formation of
seed as the core, with certain thickness
pill graining agent layer coated round
particles, through several spray liquid
and investment pill graining agent,
particle size shape is continuously
increasing, and achieve the effect of
pill graining. The machine control panel
has the button of begin and stop, with
Angle adjustment and fixed facilitate,
according to different materials
properties, adjust the earthen bowl
body, improve the pill graining
efficiency.
Equipment technical parameters
Production capacity£º0.5-2kg/h;
Motor power£º0.55kw£»
Working voltage£º380V/50Hz£»
Angle range£º0-45¡ã£»
Shape dimension£º960¡Á800¡Á700mm¡£¡¡ |
¡¡ |
