Seed laboratory
specialized equipment
5XE-50 type of seeds wind screening
test-bed
¡¡
Equipment
uses
Products used for grain seed, forage
grass, flower seeds, vegetables, herbs
seeds and other granular material of
seeds for sorting and remove impurities
and dust.
Equipment performance
characteristic
 |

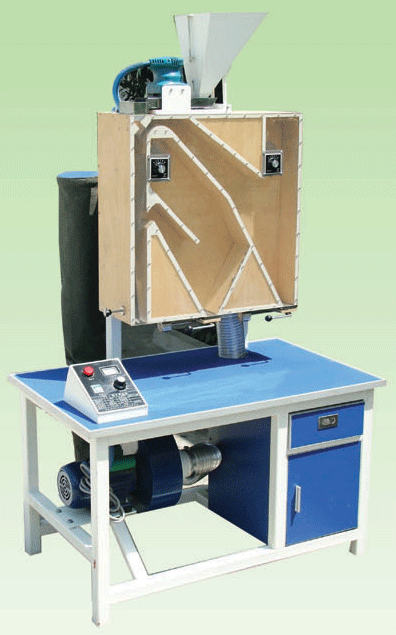

The seeds wind screening machine
make use of the seed suspended
characteristics, with the help
of seed gravity characteristics
and wind speed to sort all kinds
of seeds, raw material
separation in the seeds into
heavier good grain (good seed),
light impurity and the dust
three parts, easy to use
screening equipment to heavier
grains are in size. Seeds of wood
structure for the wind
separator, panel for organic
glass, easy to observe the
material in the movement of box
in the separation test ; Feeding
organization adopt
electromagnetic vibration
feeder, can according to the
different nature of materials,
adjust feeding speed and feed
rate of the materials uniform,
smoothly to the wind screening
box. In wind screening cabinet
panel has two air volume
adjustment knob, used to adjust
air suction, make the light
impurity and dust to their
respective abandoned settlement
respectively product to achieve
the optimal separation chamber
in effect. |
Equipment technical parameters
Production capacity£º50kg/h;
Motor power£º0.37kw£»
Working voltage£º220V/50Hz£»
Rated speed£º2800r/min£»
Shape dimension£º1000¡Á750¡Á1680mm¡£ |
¡¡ ¡¡
¡¡
¡¡
¡¡ |
¡¡ |
