Seed laboratory
specialized equipment
Equipment
uses
Seed
sorting table test bed for the cleaning
of the seeds of further separation after
the same proportion, but the vibration
effects of different materials, removal
of poor germination of grain, mixed
grain and gravel, broken shells and
other waste materials, to improve the
final product quality. The machine can
be used for cleaning wheat, barley, rice
and sunflower seeds and other materials.
Equipment performance
characteristic
|
 |

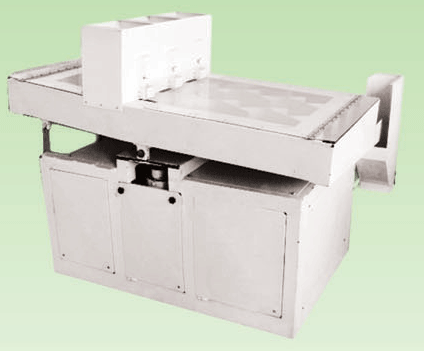

Seed table
sorting test bed, the main use
of grain density and hardness of
the grain surface tension
difference after cleaning the
seeds for sorting. Work surface
for the rectangular structures
along the length of the table,
set up three independent
internal transition separation
channel;according to the table
on the rail horizontal
reciprocating motion, the impact
of various materials and wall
surfaces during the elastic
differences, so that the surface
of elastic good material in the
channel gradually to high-end
direction, the surface of the
poor material gradually to less
low-end direction, but flexible
in order to achieve densities
similar to the separation of
different materials.Channel
above the transparent glass
plate, you can always observe
the movement of material in the
channel state. Work surfaces and
countertops along the length of
the dip frequency of
reciprocating motion are
adjustable to meet different
requirements of seed sorting. |
¡¡
Equipment technical parameters
¡¡
Production
capacity£º10kg/h;
Motor power£º0.37kw£»
Working voltage£º220V/50Hz£»
Mesa dip Angle£º0-3¡ã£»
Vibration frequency£º0-600times/min£»
Shape dimension£º630¡Á1600¡Á1115mm.
|
¡¡ ¡¡
¡¡
¡¡
¡¡ |
¡¡ |
¡¡
|
