Gravity separation test bed for all
types of cleaning the proportion of
seeds after separation to remove one of
the re-mixed (gravel, soil particles)
and not full (moth-eaten, moldy) grain,
to get plump robust seeds.
¡¡
Equipment performance
characteristic

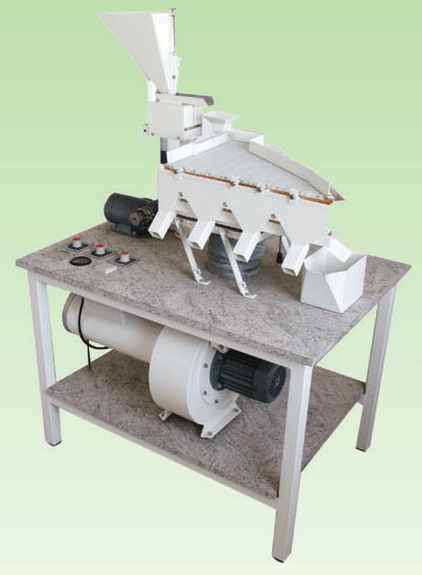

Gravity separation test bed
itself, the main use of grain
density differences of various
types of cleaning seeds after
sorting. Work surface for the
triangular structure, the feed
position in the seed aluminum
punching a larger number of
seeds to facilitate the rapid
stratification; and the relative
position of the feed side of the
machine at right angles to the
main discharge side, followed by
mild hybrid, mixing zone, good
seed; in the main discharge side
with a number of adjustable
baffle made of metal, according
to sorting effects, adjust the
distribution of various
materials; work surface vertical,
horizontal angle, vibration
frequency table, the bottom of
the fan flow, etc. are
adjustable to meet different
dimensions, different density
requirements of the seed
sorting, seed density on the
batch to obtain the proportion
of the distribution for in-depth
the proportion of seed
characteristics provide the
basic data. Proportion of the
dimensions on the distribution
of in-depth study results
provide basic data for seed
grading.¡¡
¡¡
Equipment technical parameters
Production
capacity£º50kg/h;
Motor power£º0.37kw£»
Vibration power£º0.13kw£»
Working voltage£º220V/50Hz£»
Vibration frequency£º0-600times/min£»
Mesa dip Angle£º0-3¡ã£»
Shape dimension£º1000¡Á700¡Á1440mm.
