Tempered Glass
¡¡
Product introduction

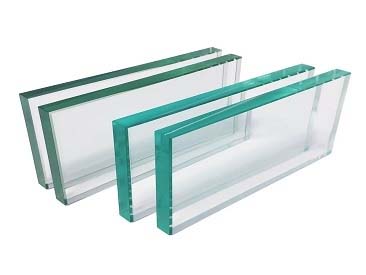

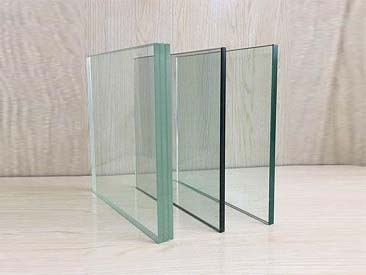

Tempered glass is heated
to the softening temperature of the
glass even after the rapid cooling, so
that the glass surface to obtain
compressive stress of the glass. During
the cooling process, the tempered glass
will be quickly solidified due to
external, but internal cooled slowly.
Therefore it increases the strength and
thermal stability of the glass.
Performance
characteristic:
1. High strength
2. Safety
3. Bearing the heat shock
Half toughened glass
Half toughened glass is
also called heat strengthened glass,
tempered glass and its production
process basically the same: it is heated
to near the glass softening temperature
after cooling from uniform. In the
cooling process, due to the smaller
cooling air pressure, cooling rate
slower than the cooling rate of glass,
which the intermediate layer and the
temperature coefficient of the surface
is relatively small, resulting in the
density difference between layers is
relatively small, resulting in pressure
values
should
be less.
Performance
and
characteristics:
1. High Intension
2. Heat resistant
toughened glass
3. Half tempered glass
has not the self-blast phenomenon.
Quality standard:
accord with BSEN12501£1-2000
British standard and ASTMC1048 standard
of the United States of America.
Specifications: Maximum
size: 3000mm¡Á6000mm
Minimum size: 300mm¡Á460mm;
Thickness range: 4mm¡ª25mm
¡¡
Product
introduction

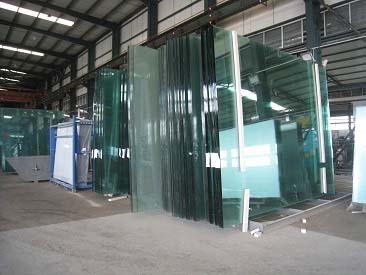

Curved tempered glass
is that the original float glass to be
heated to its softening temperature so
that the glass bending, and then cooled
down rapidly by special facility.
Hot curved tempered glass
Hot curved tempered glass is that the
original float glass to be heated to the
softening temperature, by weight or
external force to bend and shape
throughout the natural cooling to be
glass products.
Performance
characteristic:
Safety, impact
strength, thermal stability is same as
the flat tempered glass, the wind
pressure resistant strength and
deflection performance are better than
the flat tempered glass.
Curved tempered glass is mostly applied
to the arc shape of glass curtain wall,
ceiling lighting, sightseeing elevator,
indoor arc glass partition, glass
railing, indoor decoration, furniture
etc.
Hot curved tempered glass is used for
furniture, cabinets, double curved
surface and the cone type building.
Product
variety:
Colored
float glass, colored coating film and
low-E and its composite hollow,
laminated glass products.
Color: white, ultrawhite, green, blue,
grey, tea, coated glass.
Curved tempered glass processing
specifications:
The largest size: 2440mm x 4200mm
The minimum size: 600mm x 400mm
The minimum bending radius: 800mm (5-6mm
thickness) 1000mm (8-12mm thickness)
1500mm (15-19mm thickness)
Maximum height of arch: 700mm
Thickness: 5mm-19mm
Hot curved tempered glass processing
specifications:
Maximum size: 2440mm x 5000mm, arc
slotted angle <90¡ã
Processing thickness: 4mm-19mm
¡¡
LOW-E
production
line
Introduced the world's
advanced synchronization technology
LOW-E production line can produce single
and double silver LOW-E, solar control
film, the maximum size 2540mm ¡Á 6000mm,
with colorless, transparent color,
silver gray, light gray, light blue,
light green, blue, gold, burgundy and
other colors, different shades of each
color and a color, a color to achieve
diversification to meet the requirements
of building the appearance of different
colors.
Quality Standard:
GB/18915.2 (coated glass national
standards)
Double silver LOW-E glass
Product Features
Double silver LOW-E glass
is a kind of LOW-E glass coating system
structure and it is more complex. It
highlights the glass on the solar heat
radiation masking effect and it is a
clever combination of high light
transmission glass with low solar
radiation through.
Characteristics:
1. High visible light
transmittance: natural light good
2. Lower shading
coefficient SC: effectively limit solar
heat by radiation, especially through
the near-infrared thermal radiation
3. Lower U-value: more
effective in limiting the background of
the summer outdoor heat Radiation into
the interior, better insulation in
winter.
Application
Regional restrictions are not suitable
for large areas of different climatic
characteristics.
Off-site processing and can be tempered

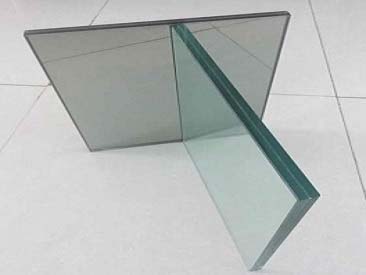

LOW-E glass LOW-E glass
An ordinary film system structure, the
metal silver film is its main feature
film. Its soft texture, combined with
other film weak, thus requiring a short
time after the film must use synthetic
insulating glass. LOW-E glass through
the improvement of film structure,
enhance the film adhesion and film
structure stability, which can be
manufactured off-site processing of
LOW-E glass can be tempered with the
LOW-E glass.
LOW-E glass product category: composite
glass: the glass can be combined with
other low-E coating made of hollow
(laminated) glass, and combinations of
composite products. It can provide
colorless, transparent, silver, blue,
light blue, light green and other
colors. There are different shades of
each color and tone to achieve a wide
range of colors to meet different design
requirements.
Dimensions
Standard Glass Size: 2440mm ¡Á 3660mm;
produce large plate glass size: 2540mm ¡Á
4500mm Thickness: 3mm-19mm
¡¡

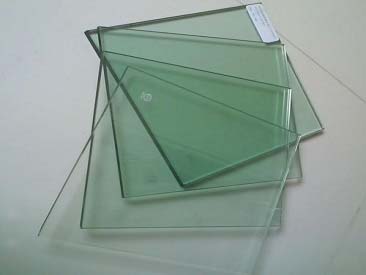

Coated Glass also is
known as reflective glass. Coated glass
is coated on the glass surface of one or
more layers of metal, alloy or metal
compound film to change the optical
properties of glass, to meet certain
requirements. Coated glass according to
the different characteristics of
products can be divided into the
following categories: heat-reflective
glass, low-E glass, Low-E, conductive
film glass.

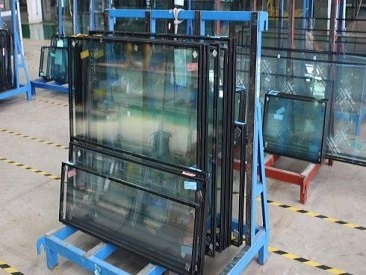

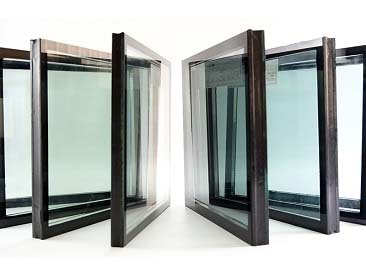

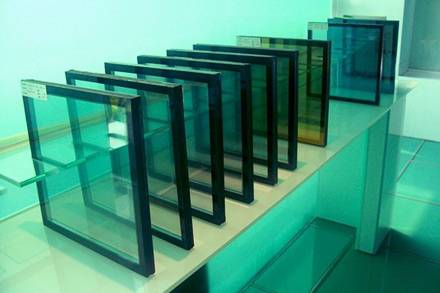

Insulating glass is composed of two or
more pieces of glass inside the aluminum
box filled with molecular sieve
adsorbents interval of a certain width
of the space, then the edge of
high-strength adhesive sealant made of
glass components. The company has Number
of imported insulating glass production
line, choose high-quality float glass
sheet and hollow auxiliary materials,
insulating glass to ensure excellent
performance and have the following
characteristics:
Thermal properties: the
lower the U value (heat transfer
coefficient), inert gas is more
effective
Optical properties:
according to actual needs, a very
flexible choice of different sunlight
projection and reflection
Compartment properties:
insulating glass generally reduces the
noise 30 dB, while the inert gas can be
based on the original and then reduced
by 5 decibels
Anti-condensation
properties: the state of the insulating
glass than the dew point (-40
¡æ) lower to
-65 ¡æ, ensure
that the insulating glass seal and
extend the life of insulating glass.
Sealing: aluminum frame
(frame interval) once formed butyl
rubber and polysulfide rubber or plastic
structural double sealed to ensure the
sealing and insulating glass to extend
the life of insulating glass.
¡¡
¡¡
Product Introduction

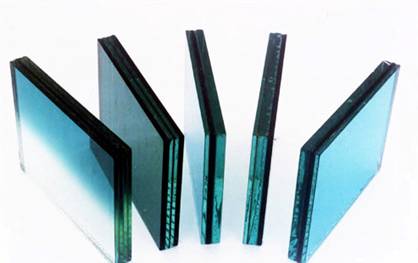

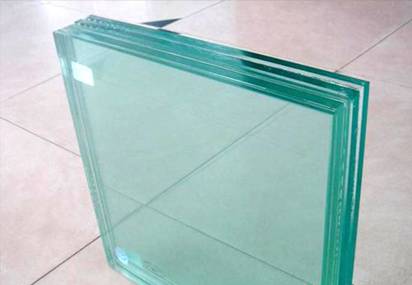

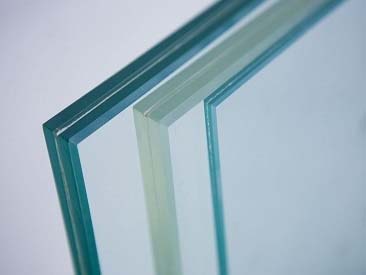

Laminated glass is
introduced between the glass folder
tough polyvinyl butyral (PVB)
intermediate modulus, high temperature
high pressure processed into composite
glass. Toughness of PVB glass is very
good, in the laminated glass broken by
external violent impact, and the film
will absorb a lot of impact energy, and
make rapid decay, so the laminated glass
is difficult to breakdown. Even
laminated glass broken, glass fragments
basic on the adhesion of the film,
laminated glass to keep the entire piece
of debris does not fall off, so it is a
real sense of safety glass. Film made of
transparent PVB laminated glass, its
appearance and basic installation is no
different from ordinary glass, and
durable.
Characteristics of
laminated glass:
1. Safety: Installation of laminated
glass in buildings subject to any
external shocks. Even the glass is
broken while the laminated glass will be
still maintaining the original integrity
of the framework. Person inside and
outside the building would not hurt by
the flying glass debris.
2. Anti-hurricane and earthquake: Even
the glasses are broken while they will
remain in situ and not drop to ground.
3. Bullet proof: A multi-Layer sandwich
can create multiple levels of
bullet-proof, explosion-proof glass.
4. UV: the sun's ultraviolet rays are a
great impediment, every UV rate of 99%
or more, to avoid ultraviolet radiation.
5. Noise resistance: PVB film hinders
the role of sound waves, thus reducing
noise.
Application
For the characteristics of laminated
glass, it is widely used in building
windows and doors, walls, ceiling,
elevated floor, furniture, windows,
counters, aquariums, large areas of
glass curtain wall.
Product Specifications: Maximum size:
3210mm ¡Á 6000mm
Total thickness: 5mm-60mm (curved clamp
size depends on bent glass size.)
Quality standard: ASTMC1172 U.S.
standards
AS/NZS2208 Australian Standard
¡¡
Product introduction

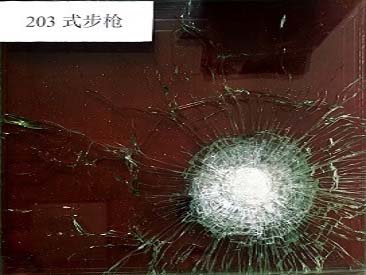

Bullet-proof glass is
described by the two or more glass
(inorganic or organic glass) with a
middle layer of PVB film in a certain
temperature, glued together under
pressure, within range of weapons can
stop bullets penetrate the human body
and property provide multi-layer
protective glass combination, a
bullet-proof, explosion-proof,
anti-theft feature, yet the
characteristics of ordinary laminated
glass is widely used in bullet-proof
glass: building: the financial system,
banks, Museum, jewelry, luxury villas;
car: heads of state, dignitaries, rich
with bullet-proof vehicles, bank A
variety of special armored car.
|
