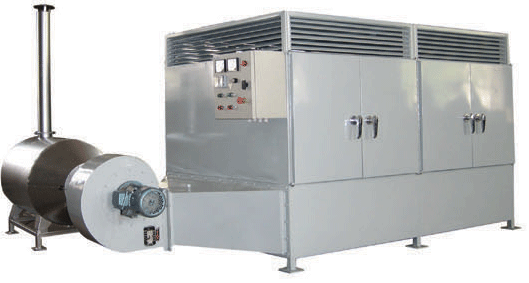

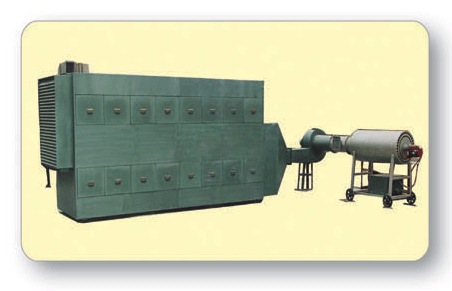

5HJ series multi-function
batch van dryers
Product Characteristics
One, the layered pile
up structure form, can be used for the
various of materials processing drying.
Two, using the
reversing of the drying process, we can
ventilation to make materials after
drying the moisture of the uniform.
Three, by adopting
indirect heat exchange of hot air stove,
without any pollution source of
material.
Four, fuel choice
range, can use coal, diesel and straw as
fuel, the fule cost is low when the
equipment is in operation.
Five, simple
operation, save work, time saving, the
labor intensity is small, the drying
time than natural air to save time many
times.
Product's Technical Parameters
|
5HJ series multi-function batch
van dryers
|
|
model |
5HJ-1.0 |
5HJ-1.5 |
5HJ-2.5 |
5HJ-3.0 |
5HJ-4.0 |
|
Effective volume
of materials (m*m*m) |
1.0 |
1.5 |
2.5 |
3 |
4 |
|
Take off the
water per hour (kg/h) |
4-6 |
6-10 |
10-15 |
12-18 |
16-24 |
|
Every hour of
coal-burning
(kg/h) |
3-5 |
4-6 |
6-10 |
9-15 |
12-20 |
|
Installed
capacity (kw) |
2.2 |
3.55 |
5.0 |
5.5 |
7.5 |
