Automatic Horizontal Pillow Wrapping
Machine
|
Flake Automatic
Packaging
Machine-TDXPZ-300W
¡¡ |
|
TDXPZ-300W |
Product Description
The
machine is suitable for
automatic packaging of flake
object such as medical
dressing, medical operation
instruments and latex glove;
It can be used for various
packaging materials such as
plastic film, plastic and
paper compound film, plastic
and aluminum compound film.
The
machine adopts
highly-integrated and
advanced PLC programmable
controllers, user-friendly
interface, and the seal
heating is tested by
temperature sensor module,
which after modulus
transforming and then send
to PLC to be deal with, so
as to get high precision of
temperature control.
The are
5 sets of driving motor
namely: servo motor driving
heat sealing desk to-and-fro
moving, 3 sets of stepping
motor say drive deliver
flake, draught and cross
cutting mechanism. The
output mechanism consists of
one three phase induction
motor drive the conveying
belt after frequency
conversion speed adjusting,
and the conveying belt can
be output at every 5 or 10
pieces with interval, which
make it more convenient for
encasing and recording.
|
Specifications |
TDXPZ-300W |
|
Voltage(V/Hz)
|
380/50 220/60
(3PH)
|
|
Seal Power(W)
|
5000 |
|
Driving Power(w)
|
3500 |
|
Production Speed (pcs/min)
|
20 |
|
Temperature Range
(¡æ) |
0~300 |
|
Number of Printing
|
10 |
|
Air Pressure (Mpa)
|
0.6 |
|
Max.Carton
Size(W¡ÁH¡ÁL)(mm)
|
520¡Á280
|
|
Dimension (L¡ÁW¡ÁH)(mm)
|
6619¡Á1863¡Á985 |
|
Net Weight(kg)
|
750 |
|
|
|
Automatic Horizontal Pillow
Wrapping Machine-TDXDZ-250
Series
¡¡ |
|

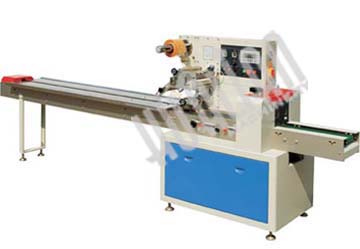

TDXDZ-250B
|
Product Description
It is
suitable for the solid object
with regular form. Such as
biscuit, bread, sweet, everyday
thing and and industrial part
and so on. The bulk cargos is
put in a box and form a regular
object, then to be packed.
Structure
features:-
Touching controller with
person-machine interface,
parameter enacted quickly, high
speed and high efficiency.
Adopting the tracing technology
through photo electricity, with
digital input and sealing and
cutting position nicely.
Self diagnosis failure function,
clear failure display.
Constant-temperature adjusting,
brainpower controlling and being
suitable for all kinds of
packaging materials.
Controlled by double frequency
conversion, the bag length can
be cut with the enacting To
finish by one step, saving time
and film.
Stopping the machine in selected
position, no sticking to the
knife and no waste packaging
film.
TDXDZ-250D
can fix gas flusing equipment
(optional).
|
Specifications |
TDXDZ-250B
|
TDXDZ-250D
|
TDXDZ-250S
|
|
Voltage (V/Hz) |
AC 220/50 110/60
|
|
Power (KW) |
2.4 |
|
Film Width (mm) |
Max.250 |
Max.180 |
|
Length of Bag (mm) |
65-190 or 120-280
|
90-220 |
45-90 |
|
Width of Bag(mm) |
30-110 |
38-80 |
|
Height for Product(mm) |
Max.40 |
Max.60 |
Max.35 |
|
Diameter for Roll
Film(mm) |
Max.320 |
|
Speed for Packaging(bag/min) |
40-230 |
60-330 |
|
Dimension (L¡ÁW¡ÁH) (mm) |
3770¡Á640¡Á1450
|
|
Net Weight (kg) |
800 |
|
|
Automatic Horizontal Pillow
Wrapping Machine-TDXDZ-350
Series
¡¡ |
|
TDXDZ-350B
|
|
Product Description
It is
suitable for the solid object
with regular form. Such as
biscuit, bread, sweet, everyday
thing and and industrial part
and so on. The bulk cargos is
put in a box and form a regular
object, then to be packed.
Structure
features:-
Touching
controller with person-machine
interface, parameter enacted
quickly, high speed and high
efficiency.
Adopting the tracing technology
through photo electricity, with
digital input and sealing and
cutting position nicely.
Self diagnosis failure function,
clear failure display.
Constant-temperature adjusting,
brainpower controlling and being
suitable for all kinds of
packaging materials.
Controlled by double frequency
conversion, the bag length can
be cut with the enacting To
finish by one step, saving time
and film.
Stopping the machine in selected
position, no sticking to the
knife and no waste packaging
film.
Gas flusing equipment
(optional).
|
Specifications |
TDXDZ-350B
|
TDXDZ-350D
|
|
Voltage (V/Hz) |
AC 220/50 110/60
|
|
Power (W) |
2.6 |
|
Film Width (mm) |
Max.350 |
|
Length of Bag (mm) |
65-190 or 120-280 |
90-220 or 150-330
|
|
Width of Bag(mm) |
50-160 |
|
Height for Product(mm) |
Max.45 |
Max.60 |
|
Diameter for Roll
Film(mm) |
Max.320 |
|
Speed for Packaging
(bag/min) |
40-230 |
|
Dimension (L¡ÁW¡ÁH) (mm) |
4020¡Á745 ¡Á1450
|
|
Net Weight (kg) |
900 |
|
|
Down-Paper Automatic Horizontal
Pillow Wrapping Machine-TDXDZ-X
Series
¡¡ |
|
TDXDZ-250X
TDXDZ-350X |
Product Description
It is
suitable for packaging soft ,
strip and unorganized objects
such as towels , tissues ,
noodles , egg rolls , sausages ,
fish , ice-lollipop , soft
candies , biscuits , fresh
fruits , etc.
Structure features:
• Touching controller with
person-machine interface,
parameter enacted quickly, high
speed and high efficiency.
• Adopting the tracing
technology through photo
electricity with digital input
and sealing and cutting position
nicely.
• Self diagnosis failure
function, clear failure display.
• Constant-temperature
adjusting, brainpower
controlling and being suitable
for all kinds of packaging
materials.
• Double transducer control,
flexible bag length cutting,
operator needn¡¯t to adjust the
unloading working, saving time
and saving films.
• Stopping the machine in
selected position, no sticking
to the knife and no waste
packaging film.
|
Specifications |
TDXDZ-250X |
TDXDZ-350X |
|
Voltage (V/Hz) |
AC 220/50 110/60 |
|
Power (W) |
2400 |
2800 |
|
Film Width (mm) |
Max.250 |
Max.350 |
|
Length of Bag (mm) |
65-190 or 120-280
|
|
Width of Bag(mm) |
30-110 |
50-60 |
|
Height for
Product(mm) |
Max.40 |
Max.45 |
|
Diameter for Roll
Film(mm) |
Max.320 |
Max.320 |
|
Speed for packaging
(bag/min) |
40-230 |
|
Dimension (L¡ÁW¡ÁH)
(mm) |
3920¡Á670¡Á1320
|
4020¡Á720¡Á1320
|
|
Net Weight (kg) |
800 |
900 |
|
|
Automatic Horizontal Pillow
Wrapping Machine-TDXDZ-400
Series
¡¡ |
|
TDXDZ-400B
TDXDZ-450B |
Product Description
It is
suitable for the solid object
with regular form such as
biscuit, bread, sweet, everyday
thing and industrial part and so
on. The bulk cargos are put in a
box and form a regular object,
then to be packed.
Structure features:
• Touching controller with
person-machine interface,
parameter enacted quickly, high
speed and high efficiency.
• Adopting the tracing
technology through photo
electricity with digital input
and sealing and cutting position
nicely.
• Self diagnosis failure
function, clear failure display.
• Constant-temperature
adjusting, brainpower
controlling and being suitable
for all kinds of packaging
materials.
• Double transducer control,
flexible bag length cutting,
operator needn¡¯t to adjust the
unloading working, saving time
and saving films.
• Stopping the machine in
selected position, no sticking
to the knife and no waste
packaging film.
|
Specifications |
TDXDZ-400B
|
TDXDZ-400D
|
TDXDZ-450B
|
|
Voltage (V/Hz) |
AC 220/50 110/60
|
|
Power (KW) |
2.6 |
|
Film Width (mm) |
Max. 400 |
Max. 450 |
|
Length of Bag (mm) |
130-320 |
180-440 |
130-450 |
|
Width of Bag(mm) |
50-190 |
50-180 |
|
Height for Product(mm) |
Max.45 |
Max.60 |
Max.70 |
|
Diameter for Roll
film(mm) |
Max.320 |
|
Speed for Packaging
(bag/min) |
40-230 |
30-180 |
|
Dimension (L¡ÁW¡ÁH) (mm) |
4020¡Á770¡Á1450
|
4020¡Á820¡Á1450
|
|
Net Weight (kg) |
900 |
|
|
Reciprocating Automatic
Horizontal Pillow Wrapping
Machine-TDXDZ-W Series
¡¡ |
|
TDXDZ-350W
TDXDZ-450W |
Product Description
It is
suitable for the solid object
with regular form such as
biscuit, bread, sweet, everyday
thing and industrial part and so
on. The bulk cargos are put in a
box and form a regular object,
then to be packed.
Structure features:
• Touching controller with
person-machine interface,
parameter enacted quickly, high
speed and high efficiency.
• Adopting the tracing
technology through photo
electricity with digital input
and sealing and cutting position
nicely.
• Self diagnosis failure
function, clear failure display.
• Constant-temperature
adjusting, brainpower
controlling and being suitable
for all kinds of packaging
materials.
• Double transducer control,
flexible bag length cutting,
operator needn¡¯t to adjust the
unloading working, saving time
and saving films.
• Stopping the machine in
selected position, no sticking
to the knife and no waste
packaging film.
|
Specifications |
TDXDZ-350W
|
TDXDZ-450W
|
TDXDZ-600W
|
|
Voltage (V/Hz) |
AC 220/50 110/60
|
|
Power (KW) |
2.6 |
3.2 |
3.6 |
|
Film Width (mm) |
Max.350 |
Max.450 |
Max.600 |
|
Length of bag (mm) |
110-330 |
120-450 |
|
Width of bag(mm) |
30-110 |
50-160 |
50-200 |
|
Height for product(mm) |
Max.55 |
10-80 |
|
Diameter for roll
film(mm) |
Max. 320 |
|
Speed for packaging
(bag/min) |
30-120 |
20-75 |
|
Dimension (L¡ÁW¡ÁH) (mm) |
3670¡Á810¡Á1450
|
3980¡Á860¡Á1580
|
3980¡Á970¡Á1580
|
|
Net Weight (kg) |
800 |
960 |
1160 |
|
|
Without Pallet Automatic
Horizontal Pillow Wrapping
Machine-TDXDT-450
¡¡ |
|
TDXDT-450
|
Product Description
It is
Suitable for the batch
packing without pallet of
biscuit etc.
It is
characterized by reliable
quality and stable
performance, stepless speed
adjustment through a
frequency converter, photo
detection and dual tracking,
capable of effective and
accurate spots.
Its locating shutdown
function can effectively
prevent burnt film.
Its dual direction tracking
can greatly improve the
tracking precision, ensure
cutting accuracy and prevent
material waste. Without
pallet, seduce the pollution
save cost.
|
Specifications |
TDXDT-450
|
|
Voltage V/Hz)
|
AC 220/50 110/60
|
|
Power (W)
|
3000 |
|
Film Width (mm)
|
Max.450 |
|
Bag Length (mm)
|
80-240 |
|
Bag Width (mm)
|
35-70 |
|
Product Height (mm)
|
35-70 |
|
Film Roll Diameter
(mm)
|
Max.320 |
|
Packing Speed
(Bag/Min) |
30-80 |
|
Dimension (L¡ÁW¡ÁH)
(mm)
|
5000¡Á960¡Á1750
|
|
Net Weight (kg)
|
1300 |
|
|
