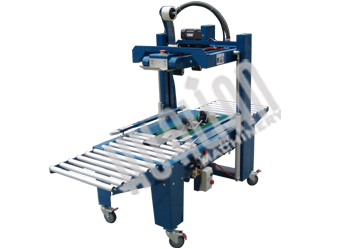

Pneumatic
Auto
Carton
Sealer-TFXJ-5050Q
¡¡ |
|
¡¡
TFXJ-5050Q |
|
Product Description
The
machine is mainly useful for the
sealing and packing of cartons,
which can be single-unit
operation or also equipped into
production line. It is used in
the fields of electrical
domestic appliance, foodstuffs,
general merchandise, medicine
and chemical industry.
|
Specifications |
FXJ-5050Q
|
|
Voltage(V/Hz)
|
AC 220/50 110/60
|
|
Power(W)
|
220 |
|
Max. Carton Size(W¡ÁH)(mm)
|
500 ¡Á 500 |
|
Min. Carton Size (W¡ÁH)(mm)
|
170 ¡Á 100 |
|
Speed(Sec/Turn)
|
24 |
|
Available Adhesive Tape
|
BOPP Water-free
Adhesive Tape PVC
Adhesive Tape
|
|
Height of Table(mm)
|
600-780 |
|
Width of Adhesive
Tape(mm)
|
48 60 76
|
|
Air compressor
|
2/3
Éý
|
|
Dimension (L¡ÁW¡ÁH)(mm)
|
1970¡Á660¡Á(1280-1460) |
|
Net Weight(kg)
|
150 |
|
|
Auto Flap Carton
Sealer-TFXJ-5050Z
¡¡ |
|
TFXJ-5050Z
|
Product Description
The
machine is mainly useful for the
sealing and packing of cartons,
which can be single-unit
operation or also equipped into
production line. It is widely
used in the fields of electrical
domestic appliance, foodstuffs,
general merchandise, medicine
and chemical industry.
The top , side and back flap of
the carton can be folded
automatically, with high speed &
smooth.
|
Specifications |
TFXJ-5050Z
|
|
Voltage(V/Hz)
|
AC 220/50 110/60
|
|
Power(W)
|
260 |
|
Max. Carton
Size(W¡ÁH¡ÁL)(mm)
|
500¡Á500¡Á600 |
|
Min. Carton Size (W¡ÁH¡ÁL)(mm)
|
130¡Á130¡Á180 |
|
Speed(m/min)
|
22 |
|
Width of Adhesive
Tape(mm)
|
48 60 76
|
|
Air Compressor
|
2/3 Litres at 5 bars
|
|
Dimension (L¡ÁW¡ÁH)(mm)
|
2720¡Á950¡Á(1200-1800)
|
|
Net Weight(kg)
|
180 |
|
|
Carton Edge Sealer-TJFX-5060
¡¡ |
|
¡¡
TJFX-5060 |
Product Description
This
machine is used for sealing the
edge slots of top-bottom
flapping. It can be equipped
onto automatic packing
production line.
|
Specifications |
TJFX-5060 |
|
Voltage(V/Hz)
|
AC 220/50 |
|
Power(W)
|
720 |
|
Air Compressor (Mpa) |
0.5¡«0.6 |
|
Min.Carton
Size(W¡ÁH¡ÁL)(mm)
|
300¡Á240¡Á180 |
|
Max.Carton Size (W¡ÁH¡ÁL)(mm)
|
600¡Á500¡Á500 |
|
Speed(m/min)
|
20 |
|
Available Adhesive Tape
|
BOPP Water-free
adhesive tape PVC
adhesive tape
|
|
Height of Table(mm)
|
700-850 |
|
Width of Adhesive
Tape(mm)
|
48 60 76 |
|
Weight of Packing
Object(kg) |
2.5-30 |
|
Dimension (L¡ÁW¡ÁH)(mm)
|
2300¡Á1300¡Á1650 |
|
Net Weight(kg)
|
400 |
|
|
Auto Flap Carton Bottom
Sealer-TDZF-5050
¡¡ |
|
TDZF-5050 |
Product Description
The end of
automatic folding and closure,
and supporting the use of
automated production lines.
|
Specifications |
TDZF-5050 |
|
Voltage(V/Hz)
|
AC 220/50 |
|
Power(W)
|
180 |
|
Air Compressor (Mpa) |
0.5¡«0.6 |
|
Speed(m/min)
|
22 |
|
Min.Carton
Size(W¡ÁH¡ÁL)(mm)
|
200¡Á160¡Á110 |
|
Max.Carton Size (W¡ÁH¡ÁL)(mm)
|
600¡Á500¡Á500 |
|
Available adhesive tape
|
BOPP Water-free
adhesive tape PVC
adhesive tape
|
|
Width of Adhesive
Tape(mm)
|
48 60 76 |
|
Dimension (L¡ÁW¡ÁH)(mm)
|
2000¡Á860¡Á1700 |
|
Net Weight(kg)
|
320 |
|
|
Gummed Tape Dispenser-TFX-800
¡¡ |
|
TFX-800 |
Product Description
The gum
tape machine is used for
sticking reinforced gummed tape.
The extended tape length can be
adjusted. The machine is easy in
operation and conforms to
environment requirements.
|
Specifications |
TFX-800 |
|
Width of Tape (mm)
|
20-80 |
|
Max. Tape Roll diameter
(mm) |
200 |
|
Dimension (L¡ÁW¡ÁH)(mm)
|
480¡Á330¡Á320 |
|
Weight (kg)
|
35 |
|
