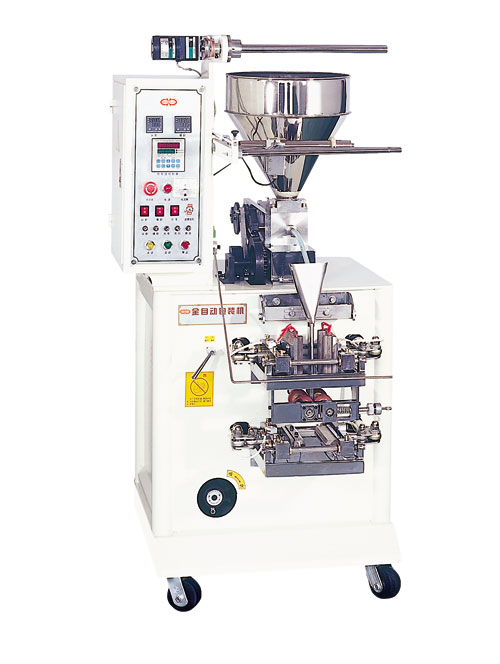

Fully Automatic Liquid Packer


Model-TJX006



Packing Effect


Introduction of Product

Model No.£ºTJX006

Name

Fully Automatic Liquid Packer

Purpose

Available for the packaging of food paste products and liquid products such as soup, seasoning, shampoo, beverage, oil, yoghourt etc. in the application of food, cosmetic, medicine and pesticide industry.

Feature

1. Environment-friendly and sanitary pump made of fully stainless steel.
2.Volumetric measuring with stepless adjustment for accuracy.
3.Easy adjustment for blanking weight, temperature then to packaging speed.
4.Nip roll film delivery structure even used for the film with little static .
5.Stepless speed adjustment without stopping the unit.
6. Step motor complete with photoelectric switch orientation with a view of length adjustment with not stopping the unit but high bagging accuracy.
7.Heat press lot No. (or print with ink ribbon according to customers' requirement)
8. Availably order for a entire machine fully made of stainless steel.

Technical parameters

Bag size

L:50-150mm
W:40-140mm

Bag shape

four-side seal bag

Measuring range

3-100ml

production capacity

25-50 bags/min

Dimension

(LXWXH)700*860*1750mm

Total Power

1.2Kw

Machine weight

280Kg

¡¡


¡¡
