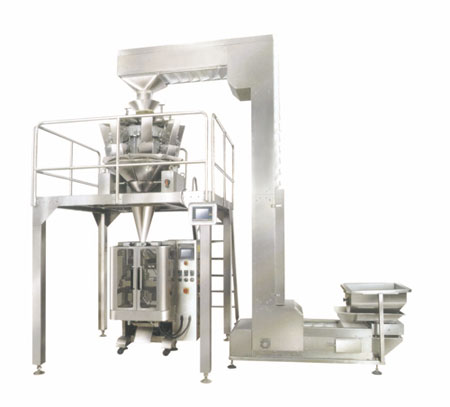

Upright Type Heavy-Duty Packaging Machine With Electronic Weigher


Model-TJX0013



Packing Effect


Introduction of Product


Model No.£ºTJX013

Name

Upright Type Heavy-Duty Packaging Machine With Electronic Weigher

Application range

  Applicable for packaging of granulated product and bar product and agglomerate product in packaging range of below 1200ml .

Feature

1.Chinese/English version touch screen display for easy operation.
2.PLC computer control system for convenient modification of any parameters without stopping the machine, ensuring running stability.
3. Able to store 10 groups of parameters, for easily changing material kinds.
4. Servo motor to draw the film, for accurate orientation.
5. Independent temperature control system up to accuracy of ¡À1¡æ
6. Separate horizontal and vertical temperature control, suitable for various laminated film, PE film etc materials.
7. Packaging diversification involved back sealing, stand pouch, multiple bags linkage, punching etc.
8. Bag-making, sealing, packing, date printing in a single pass.
9.Quiet operation with less noise.
10.Electronic weighing method for accuracy and lower cost.

Technical parameter

Bag length

80-300mm(L)

Bag width

50-200mm(W)

Film width

420mm

Packaging speed

5-60bags/min

Measuring range

150-1200ml

Air pressure

0.65Mpa

Air consumption

0.3m3/min

Power supply

220V/2.2Kw

Dimension

(L)1320mm x (W)950mm x (H)1360mm

Machine weight

540Kg

¡¡


¡¡
