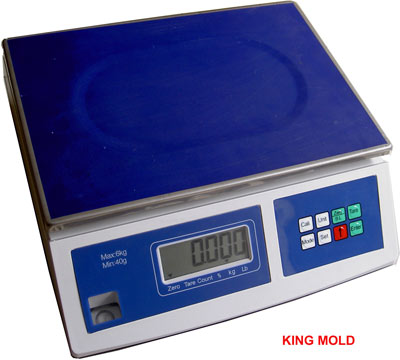

Weighing scale
YYTCS-Z
Series Electronic Weighing Platform
Scale
Features:
1.Rechargeable accumulator
inside, you can use the
scale during recharging.
2.Auto zero-setting when
switch on the scale.
3.Auto zero-tracing.
4.Switch among weighing,
counting, percentum.
Function of choosing Weight
range.
5.Power supply: AC 220V
(¡À10%) / 50 Hz, 110V/60HZ,
DC 6V / 4Ah (Rechargeable
accumulator inside).
6.Working temperature range:
0 ¡æ ~ +40 ¡æ/
7.Relative humidity: ¡Ü 85 %
RH
8.Platform size:
350*450mm£¬450*600mm£¬600*600mm |
Standard:
|
MODEL
|
CAP.(kg)
|
GRADUATION(d)
|
DIVISION(g)
|
ACCURACY
|
|
YYTCS---60Z
|
60
|
3000/6000 12000/30000
|
20/10/5/2
|
¢ó
|
|
YYTCS---150Z
|
150
|
3000/7500 15000/30000
|
50/20/10/5
|
¢ó
|
|
YYTCS---300Z
|
300
|
3000/6000 15000/30000
|
100/50/20/10
|
¢ó
|
|
YYTCS---600Z
|
600
|
3000/6000 15000/30000
|
200/100/40/20
|
¢ó
|

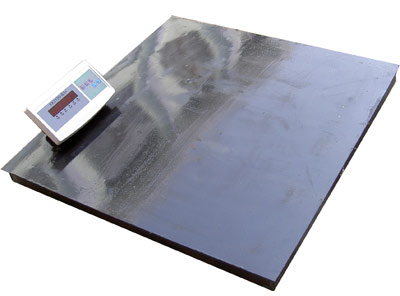

Floor
scale
Features:
* A
steel flat roof
* Four load cells,a junction
box
* B3+ indicator
* Height adjustable
Specification of the flat
roof:
1m¡Á1m
1m¡Á1.2m
1.2m¡Á1.2m
1.2m¡Á1.5m
1.5m¡Á1.5m
Or other special
specification |
Download:
Floor scale Operating Manual

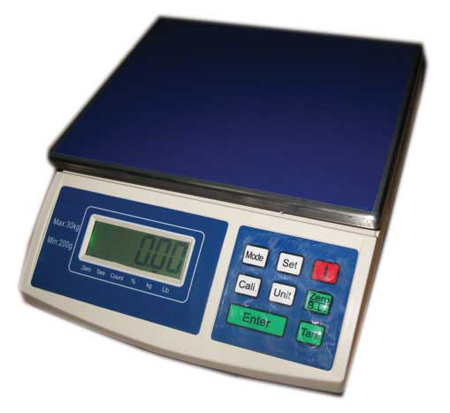

YYACS-Z Series
Queen Mold Electronic Weighing Scale
Features:
1.Rechargeable accumulator
inside, you can use the
scale during recharging.
2.Auto zero-setting when
switch on the scale.
3.Auto zero-tracing.
4.Switch among weighing,
counting, percentum.
Function of choosing Weight
range.
5.Power supply: AC 220V
(¡À10%) / 50 Hz, 110V/60HZ,
DC 6V / 4Ah (Rechargeable
accumulator inside).
6.Working temperature range:
0 ¡æ ~ +40 ¡æ/
7.Relative humidity: ¡Ü 85 %
RH |
YYACS-Z Series
Weighing Scale
Standard:
|
MODEL
¡¡
|
CAP.(kg)
|
GRADUATION(d)
|
DIVISION(g)
|
ACCURACY
|
|
ACS-3Z
|
3
|
3000/6000 15000/30000
|
1/0.5/0.2/0.1
|
¢ó
|
|
ACS-6Z
|
6
|
3000/6000 12000/30000
|
2/1/0.5/0.2
|
¢ó
|
|
ACS-15Z
|
15
|
3000/7500 15000/30000
|
5/2/1/0.5
|
¢ó
|
|
ACS-30Z
|
30
|
3000/6000 15000/30000
|
10/5/2/1
|
¢ó
|
Features:
1.Rechargeable accumulator
inside, you can use the
scale during recharging.
2.Auto zero-setting when
switch on the scale.
3.Auto zero-tracing.
4.Switch among weighing,
counting, percentum.
Function of choosing Weight
range.
5.Power supply: AC 220V
(¡À10%) / 50 Hz, 110V/60HZ,
DC 6V / 4Ah (Rechargeable
accumulator inside).
6.Working temperature range:
0 ¡æ ~ +40 ¡æ/
7.Relative humidity: ¡Ü 85 %
RH |
|
|
