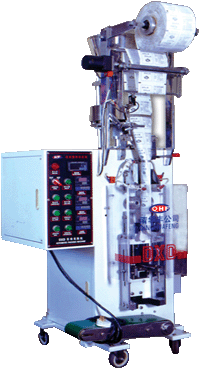

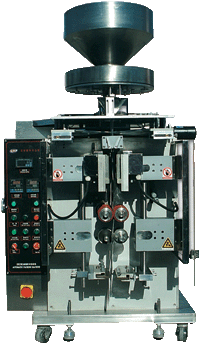

Granulate Products Automatic Packing
Machine
YDXDK600B
Granulate Products Automatic Multiple
lines Packing Machine
 |
|
YDXDK600B
four directions
seals shape, top
performance,
high speed and
flexibility
sachet packing
machine. It's
the best modern
machine.
Granulate
products,
powders and
liquids can be
packed and is
suitable for
everywhere.
Multiple line,
high speed and
long time
production is
best suitable
for big and
medium-sized
enterprises.
Meets the
highest GMP
standards;
prevents hidden
deposits of
product. All
corners are
easily
accessible for
cleaning. Top
automatic
control;
customized
solutions to
use, PLC or
instrument.
Hydraulic
coupling system
for sealing
pressure ensures
high quality
sachet without
noise and
vibration.
|
|
Specifications |
|
Performance
Type
|
unit
|
YDXDK600B
|
|
Production
capacity
(bags/min)
|
six
lines
|
Max
600
|
|
Volume
margin
|
ml
|
Max
250
|
|
Bag
size
|
ml
|
Max
250
|
|
Power
Voltage
|
mm
|
Max
250
|
|
Power
Consumption
|
6 KW
|
380V
3-phase
and
5
wire
system
|
|
Dimension
(mm)
|
width
×
depth
×
height
|
150×1860×1900
|
|
Net
Weight
|
kg
|
2300
|
|
|

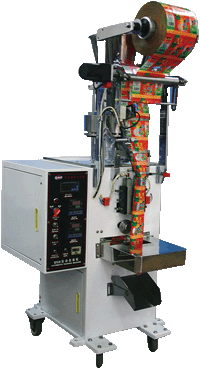

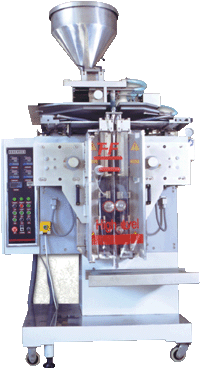

YDXDK160B
Granulate Automatic Multiple lines
Packing Machine
 |
|
The machine is
double or three
lines packing.
It complete
feed, making
sack, sealing,
cutting and
transportation
etc. Improved
packing speed
and med the
highest GMP
standards
prevents hidden
deposits of
product. It
suitable for
packing seed,
agricultural
chemicals,
biochemistry
products etc.
|
|
Specifications |
|
Performance
Type
|
YDXDK-160B
|
|
Production
capacity
(cycle/min)
|
30-60
|
|
Volume
margin
(ml)
|
one
line
1-100
，couble
lines1-50
，three
lines1-20
|
|
Bag
size
(mm)
|
(L)
30-160
(W)
30-180
|
|
Power
Voltage
(v)
|
380V50H
3-Phase
and
4-wire
system
|
|
Power
Voltage
(v)
|
2000
|
|
Dimension
(mm)
|
W150×
D1300×
H1700
|
|
Net
Weight
(kg)
|
700
|
|
|
YDXDK60.80/B
Granulate Products Automatic Packing
Machine
 |
|
This
machine is used
to package free
flowing
granulate
products such as
beans, seed,
medicine,
fodder, salt,
drying agent,
spice, tea etc.
into a bag.
Changing the
different cups
to control the
volume of bag
,allow the
filling packaged
products into
high speed
accuracy and
economy
available. |
|
Specifications |
|
Performance
Type
|
YDXDK60/B
|
YDXDK80/B
|
|
Production
capacity
(bags/min)
|
40-60
|
50-80
|
|
Volume
margin
(ml)
|
20-100
|
1.7-50
|
|
Bag
size
(mm)
|
(L)60-80(W)70-120
|
(L)50-150(W)50-100
|
|
Power
Voltage
(v)
|
350V
3-Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
1120（heating
180×4）
|
|
Dimension
(mm)
|
W625×D750×H1550
|
|
Net
Weight
(kg)
|
170
|
|
|
YDXDKZ60.80/B
Granulate Products Automatic Pillow
Packing Machine
 |
|
This series
machines are
suitable for
packing
pillow-shaped
granular
products. Automatically
accomplish
packing ,making
,filling
,cutting,
sealing and
counting.
|
|
Specifications |
|
Performance
Type
|
YDXDKZ60/B
|
YDXDKZ80/B
|
|
Production
capacity
(bags
/min)
|
40-60
|
50-80
|
|
Volume
margin
(ml)
|
20-100
|
1.7-50
|
|
Bag
size
(mm)
|
(L)60-80(W)50-120
|
（L）65-150（W）50-100
|
|
Power
Voltage
(v)
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
1120（heating180×4）
|
|
Dimension
(mm)
|
W750×D750×H1588
|
|
Net
Weight
(kg)
|
190
|
|
|

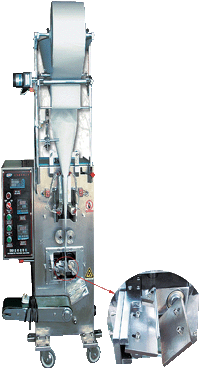

YDXDK80E
Granulate Products Automatic Packing
Machine
 |
|
This machines is
similar with
YDXDK/B, Which
can package
seeds, medicine,
fodder and so
on. However,
this machine has
advantage of
using whirly
cutting to
improve the
cutting and
packaging.
|
|
Specifications |
|
Performance
Type
|
YDXDK80E
|
|
Production
capacity
(bags/min)
|
40-100
|
|
Volume
margin
(ml)
|
17-50
|
|
Bag
size
(mm)
|
(L)50-150
(W)50-100
|
|
Power
Voltage
(v)
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
1120（heating180×4）
|
|
Dimension
(mm)
|
W625
×
D750
×
H1550
|
|
Net
Weight
(kg)
|
170
|
|
|

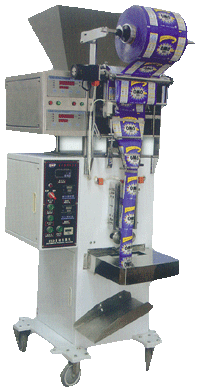

YDXDCKZ30B
Weight Granulate Products Automatic
Packing Machine
 |
|
This series
packing machines
also produce
pillow-shaped
package sack but
use electric
weight method.
They are
suitable for
packing loose
and ataxic shape
material such as
tea, expanded
food etc. These
machines can
automatically
complete
weighing. feed,
making sack,
sealing, cutting
and
transportation.
|
|
Specifications |
|
|
Performance
Type
|
YDXDCKZ30B
|
|
Production
capacity
(bags/min)
|
18-30
|
|
Volume
margin
(ml)
|
100-320
|
|
Bag
size
(mm)
|
(L)100-200
(W)80-140
|
|
Power
Voltage
(v)
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
2000（heating180×4）
|
|
Dimension
(mm)
|
W710
×
D825
×
H1830
|
|
Net
Weight
(kg)
|
210
|
|
|
YDXDK60.80/BD
Arbitrary number bags cut packing
machine
 |
|
This series of
machines are
same to
YDXDK80.60/B
machine of
packing, making
sack, filling,
sealing and
counting. The
difference is
the cutting is
the cutting off
number of bags
can be changed
by setting.
|
|
Specifications |
|
Performance
Type
|
YDXDK60/BD
|
YDXDK80/BD
|
|
Production
capacity
(bags/min)
|
40-60
|
50-80
|
|
Volume
margin
(ml)
|
20-100
|
1.7-50
|
|
Bag
size
(mm)
|
(L)60-180(W)70-120
|
(L)50-180(W)50-85
|
|
Power
Voltage
(v)
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
1200（heating180×4）
|
|
Dimension
(mm)
|
W625×D750×H1650
|
|
Net
Weight
(kg)
|
180
|
|
|

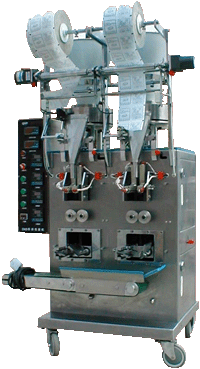

YDXDK60.80/-S Granulate
Automatic two lines Packing Machine
 |
|
The best
character of
this machine is
that: make two
self-governed
system into one
whole machine,
it can pack two
same or
different kinds
of granulate
at the same
time, this make
its production
capacity to two
times of the
single line type
machine (such as
YDXDK60B) .
|
|
Specifications |
|
Performance
Type
|
YDXDK60-S
|
YDXDK80-S
|
|
Production
capacity
(bags/min)
|
40-60
|
50-80
|
|
Volume
margin
(ml)
|
20-100
|
1.7-50
|
|
Bag
size
(mm)
|
(L)60-180(W)50-120
|
(L)65-150(W)50-100
|
|
Power
Voltage
(v)
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
2000（heating180×8）
|
|
Dimension
(mm)
|
W920×D460×H1700
|
|
Net
Weight
(kg)
|
230
|
|
|
|

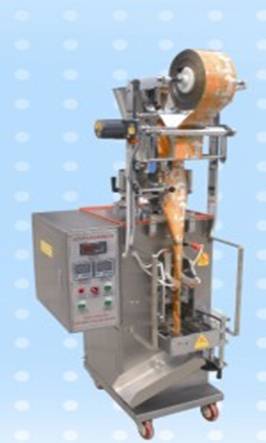

YDXDK60/80FXAutomatic
granule packaging machine
 |
|
The machine is
fully automatic
grain packing
machine, the
body of
stainless steel
with corrosion
resistance, wear
resistance and
easy to clean,
and suitable for
packing
medicine,
pesticide, seed,
feed, drying,
food spices, tea
and a free flow
of granular
products.
Yung-cup
measure,
according to
different weight
to different
types of content
replacement cup,
cup with
adjustable
capacity and
compatibility. A
complete bag,
filling,
sealing. By
changing the
sealing
structure, bags
can be made into
side sealing,
four sides
sealing,
pillow-shaped
seal (also known
as dorsal
closure), with
measurement
accuracy,
packing speed,
economical
advantages.
Pouch packaging
is the preferred
model .
|
|
Specifications |
|
Performance
Type
|
YDXDK60X
|
YDXDK80X
|
|
Production
capacity
(bags/min)
|
30-60
|
40-80
|
|
Volume
margin
(ml)
|
20-100
|
1.0-50
|
|
Bag
size
(mm)
|
(L)50-180(W)50-120
|
(L)4-150(W)30-100
|
|
Power
Voltage
(v)
|
380V
or
220V
|
|
Power
Consumption
(w)
|
1200W
|
|
Dimension
(mm)
|
W650×D700×H1600
|
|
Net
Weight
(kg)
|
170
|
|
|
|
