how to get packing product from material tea

How to get packing product from material tea

Material tea Crush Screen

packing product Overwrap Pack

A. Crush

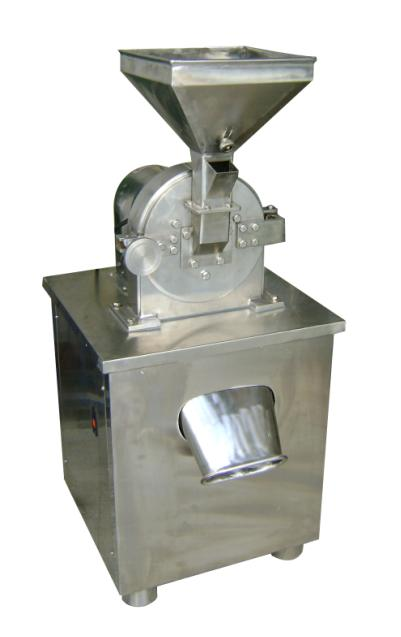

YYPT003 Crusher Machine

l The flow chart:

After slicing or cutting up, the material will automatic crushing under the action of impact which is through high speed revolving mobile chainring and screening the required material. The crusher part and dust cleaner are all made of high quality stainless steel. After advanced processing, the inner crushing machine is smooth and level so that the powder is more smoothy and the inner machine is easy clean. The mobile teeth are hard, durable, safty and reliable based on the special joiniting between high speed chainring and teeth. The machine is conform to GMP requirement.

Due that the high speed chainring has been level tested, the machine can without shaking during operation. More durable and reliable based that the locking devise between high speed chainring and transmission shaft.

l Technical parameters：

Model	Capacity	main shaft speed （r/min）	Crusher fineness	Power (kw)	Machine weight (kg)	（LWH）Machine size
180	75-100kg/h	4200 rpm	50-150	2.2	70	5004201250mm
250	100-250kg/h		50-150	5.5	180	6506001350mm
320	250-300kg/h		50-150	7.5	250	7507001450mm
350	200-550kg/h		50-150	11	400	8508001650mm
400	300-800kg/h		50-150	15	700	105010002100mm

B. Screen

YYPT019 Vibrating Screen

l Purpose:

The machine is suitable for classifying, screening and filtering different powder and grain product in different line such as pottery, food, pharmacy, chemical, powder, electronic, plastic cement, grind and similar line.

l Technical parameters

Screen Size	Output	Machine size（LWH）	Machine weight
M: 60cm L: 120cm	50kg/h	1.5X0.6X0.6m	100kg

C. Pack

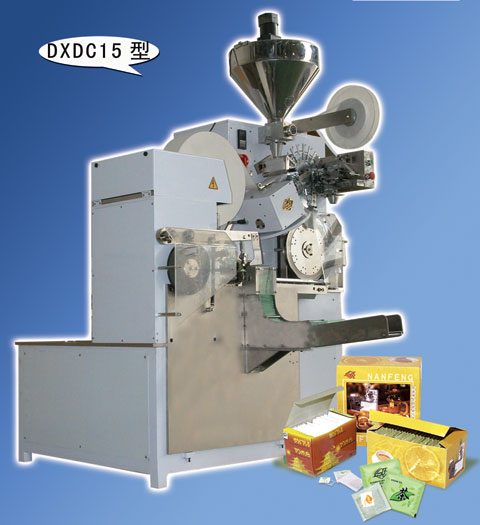

DXDC15 Tea bag machine

l Introduce：

This model is a new type heat-sealing, multifunction, automatic packing machine. This machine enlarges the capacity of tea bag and remains the automatic boxing device. It changes the sealing way of envelope making, improves the flexibility of envelope packing material. It ensure the realization of using multiple heat-seal laminated films in the envelope pack such as paper/aluminum/polyethylrne, etc. It provides you exquisite envelope pack which were airtight and fresh keeping.
Tea bag packing machine Model DXDC15is our newest model, and features filling, heat sealing, threading, labeling and over-wrapping functions. Meanwhile, it also has an adjustable loading system for filling different sized tea bags. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables use of different packaging materials. Main materials include paper/PE, plastic/foil/PE and plastic/PE.

l Technical parameters

Output	105±5bags/minute
Tea volume	0—4 gram red tea
Max. dosage	15cm3
Bag dimensions	65 x 62.5mm
Envelope dimensions	82 x 75mm
Tag dimensions	28 x 24mm
Thread length	210mm
Power supply	AC 380V / 220V
Total power	2.36kW
Weight	1210kg
Gross weight	1410kg
Overall dimensions	1.688 x 1.33 x 2.205m

More tea bag machines are on the website: http://www.teanet.com.cn/sino_tea_machinery.htm

There maybe needs Stirrer, Filter paper, Thread, Tag, Envelop, Colloidal and so on.

D. Overwrap

BT-350A Overwrapping machine

l Introduce：

Model 350A overwrapping machine is developed on basis of model BT-2000A and is applicable for a little big sized box such as mobile box ,cigarette box with 10 pack cigarette box etc. The difference from BT-2000 series and BT-350A is that BT-350A turret is only four part but the BT-2000 series turret eight part.

Features:

1/Functions: Anti-false and moisture-proof
2/Adjustable to different sizes

3/Speed Adjuster, temp. adjuster

4/ hopper feeding, Tear-tape device.

l Technical parameters

Model	BT-350A
Production capacity	10-25(packs/min)
Package size	Max film width<340mm
Voltage supply	220V 50Hz single phase
Voltage supply	380V 60hz three phase by special order
Electric heating	0.75KW
Power consume	4KW
Overall size	2800X950X1600MM(LXWXH)
N.weight	1000KG

More Overwrapping machines are on the website: http://www.mycotrade.com/english/packing_machine/vbkl4789bji.html

There maybe needs Mould for BT-350A, Printing device, Unsealing pull line, Cellophane and so on.
