The Line of Making Blister Tray

/Blister Package

NO.	Machine		Item	Marks
1	Vacuum Forming Machine(Thermoforming Machine)		DXS-700/1200A-1 or Other
2	Cutting Machine	Cutting Material Machine	C/1200	Choose one of them according to the actual conditions.
2	Cutting Machine	Supercharge Puncher Machine	HQZY-60 or HQZY-200	Choose one of them according to the actual conditions.
3	Air compressor		0.8m³/min	Allocated by the Demanding Party Oneself.

The samples:

PVC and PVC+ flock finishing sheet,Blister tray

PP Blister tray

DXS-700/1200A-1 Full-Automatic Computer Control High-Speed

Vacuum Forming Machine(Thermoforming Machine)

The type DXS-700/1200A-1 is a full-automatic computer-controlled high-speed vacuum forming machine. This machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, touch screen and digital displayed voltmeter adjustment. This full-automatic forming equipment for high efficiency plastic sheet material includes sending, calefaction, forming, cooling, mold unloading, truncation at one blow. This machine is an inward configuration and get reliable performance and handy operation.

Scope of application:

It is suitable for plastic sheet material of PS, HIPS, PVC, PET, PP, flocking sheet and produces varieties of packaging which are salvers, inner linings of products etc.. For example: curatorial injection salver, inner lining of oral liquid, inner lining of combined set, inner lining of cookies, one-off tableware etc…

Main Technical Parameters:

Length of molding (mm) 760-1200	Width of molding (mm) 500-700
Highness of molding (mm) <=165	Production speed(Time/h) 60-420
Power consumption of electric furnace (kw) 24Kw	power consumption of vacuum pump motor(kw) 3
Pump speed (m³/h)100	power consumption of air compressor 7.5Kw
Air displacement (m³/min) 0.8	Voltage (V/Hz) 380/220V 50HZ
Formal size (mm) 722013802490	Weight (Kg) 2800

DXS-700/1200A-1 Computer Control High Speed

Vacuum Forming Machine (Thermoforming Machine)

Specifications	1. Vacuum pump: BUSCH 100m³/h (Germany)
	2. Solenoid valve: SMC (Japan)
	3. control touch screen：SIEMENS
	4. PLC： SIEMENS
	5. Control relay: OMRON (Japan) others：DELIXI、 CHINT
	6. Cylinder： HENG YI PNEUMATIC ELEMENTS JOINT FACTORY
	7. Heating system：Sixty Infrared Ceramic Heating Bricks
	8. Temperature-adjusting system：sixty silicon control、solid regulator、dig-display voltmeter
	9. Automatic Spray Gun：POLY(Taiwan), eight
	10.Transducer： SCHNEIDER (France) Reducing Motor：Taiwan
	11. Code device: NEMICON (Japan)
Key Features	1. Width of molding can be adjusted freely on customer’s request from 500 to 700mm.
	2. Reducing motor is introduced here to feed under the error of 4mm. Length set can be realized by programming on touching screen, expediently and precisely.
	3. Shocking mold unloading：1~20 per second free adjustment, adjustable amplitude, two times mold loading, reversely blowing mold unloading, secure products not to deform and easily mold unloading.
	4. Customers can select combining mold (up to 20 combining specs) or fixed spec mold.
	5. Machine is controlled by PLC system, with a 5.7 inches touching screen, handy manipulation. Two vacuuming, vacuum advancing and two mold loading features are also available.
	6. Advance ending sheet can avoid over temperature of first feed, utilizing sheet efficiently and reducing wastes.
	7. Automatic Spray Gun of POLY in Taiwan has many features: fast forming, easy mold unloading, wind cooling with brake.
	8. Close heating body adopting dig-displayed voltmeter, silicon control, solid regulator, can utilize heat efficiently; make power conservation and stable temperature possible.
	9. Guide post receives hardness treatment. With composite bearing, it need not oil supply, which can reduce package contamination, keep the machine neat.

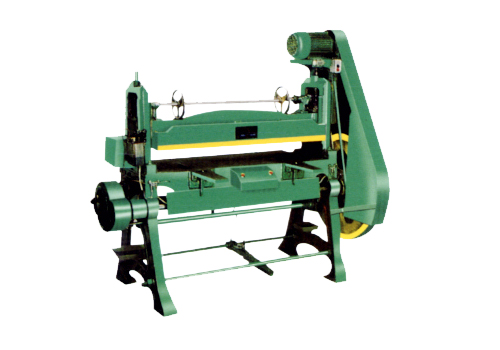

C/1200 CUTTING MACHINE:

Spec	116
Size	1160mm
Strength of washing and cutting	70kn
highness of press plank	48mm
Speed of press	70time/min
Min distance of up and down pressing plank	65mm
Power adjust of highness of press plank	95mm
Hemline size of press plank	1152×388mm
Power of machine	2.2Kw
Worktable of machine	1167×415mm
Formal size	1700×950×1600mm
Weight	1200kg

HQZY-60/200 SUPERCHARGED PUNCH

HQZY Series Punch adopts drive technology which changs hydraulics

into supercharge. The working stroke is controlled by pneumatic, when the

cutter touches the products, the pressure supercharge to cut,then the mould

plate returned. The stacking and cutting station is cycled to work.

APPLICATION AREA:

HQZY series machine have lower consumption, lower voice, accurate fixed position,

long-life mould and easy operation etc. It is suitable to press punch, bending,

forging the plastic products in the package, light industry, electronics and

hardware fields.

PARAMETER:

Model HQZY-60 HQZY-200

General stroke 100mm 100mm

Working stroke 5mm 5mm

Supercharge ratio 1：22 1：72

Air consumption 0.0095m³/min 0.054m³/min

Power consumption 100w/hr 100w/hr

Mould size maximum 510*670mm 700*1300mm

Air pressure 0.6-1.0Mpa 0.6-1.0Mpa

Power 220V 50HZ 220V 50HZ

Speed force 824-1374Kgf 1752-2920Kgf

Returning force 1580-2638Kgf 4500-7540Kgf

Punch force 38.4-66T 128-220T

Weight 2000Kg 6000Kg

Dimension 1220*1200*2050(mm) 3420*1500*2100(mm)
