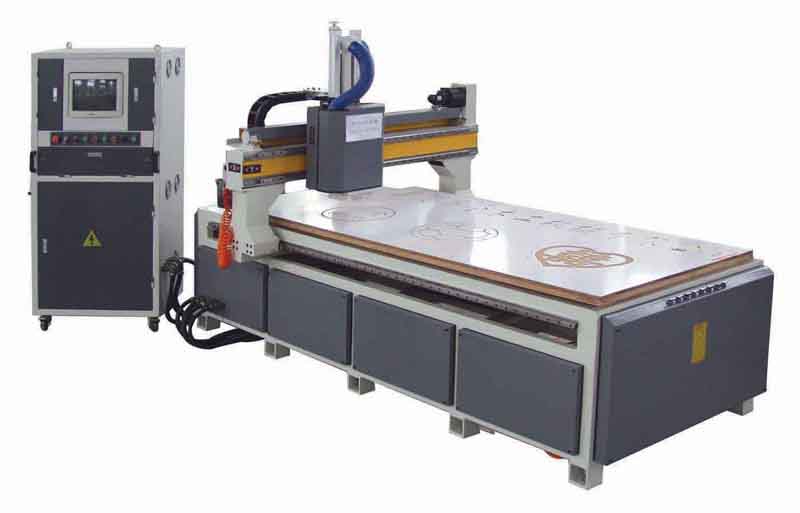

YMXK5813×25 Cnc-router
| The CNC-Router is the
high-technology product of mechanotronics
mechanical-electrical integration, with the
most advanced CAXA technology and CNC curving
technology. It is widely used in plane and
curve processing of industry mold,
architecture model, wooden gates,
advertisement cutting words, artifacts, and
decorations automatically under process. With
auto blades-adjusting performance, when pushed
lightly, it can get the origin of processing
material. With special point-pacing CNC
function, it can adjust the position of blade
points exactly. It can adjust the processing
speed and blade operating speed during
processing, and has memory capacity of 2MB,
which help users to finish their work fast. |
|
|
Information
1. Working Route
X Axle: 2500mm
Y Axle: 1300mm
Z Axle: 260mm
2. Working Table Size: 2500×1300mm
3. Max Moving Speed
X Axle: 15m/min
Y Axle: 15m/min
Z Axle: 15m/min
4. Spindle Speed:
60-2400r/min
5. Driving Mode: servo
driving
6. Arbor Diameter:
Ф6.3,
Ф12, Ф12.7mm
7.Power:
Vacuum Pump: 5.5KW
Lubrication Motor: 0.1KW
Cooling Pump: 0.125KW
Spindle Motor: 4.5KW
X Axle Motor: 1.3KW
Y Axle Motor: 0.85KW
Z Axle Motor: 0.75KW
General Motor: 13.125KW
8. Weight: 3000KG
9.Overall Dimensions: length×width×height=3220×1830×2040mm |
|
|
