DPB-250E Blister Packing
Machine
OFFER LIST
Packing Material：Alu.
foil+PVC
Used for:
Tablet, capsule, electric ell, needle, syringe
etc.
Capacity
：12000
plates/h (35,000-230,000 tablet or capsule/h)
Control Method：PLC
control, stepless frequency inverter
Operation
：By
touching Screen
Other functions：Automatic
batch number printing
Mould Cooling：Running
water or recycled cooler
Feeder
: Brush type feeder
Standard plate:
240×150×14mm
Forming area or depth: Max.
240×170×26mm
Die frequency:
6-50 times/min.
Compressed air：0.4-0.6Mpa
Air flow:≥0.3m3/Min.
Power supply：380V
3项
50Hz（May
manufactured as per customer’s request）
Main motor Power：1.5KW
Dimension
：3000×730×1600mm（L×W×H）
Net weight：1400Kg

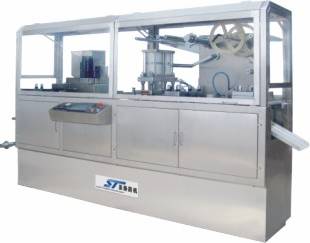

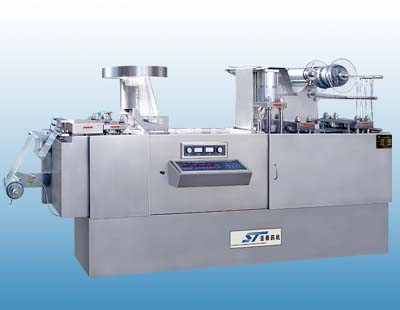

Machine picture:

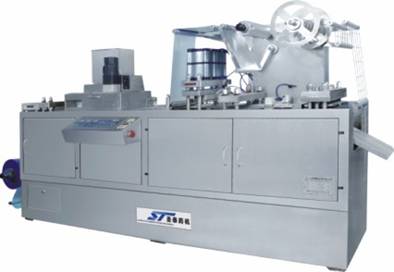

For the type with a cover(see
picture below):
|
