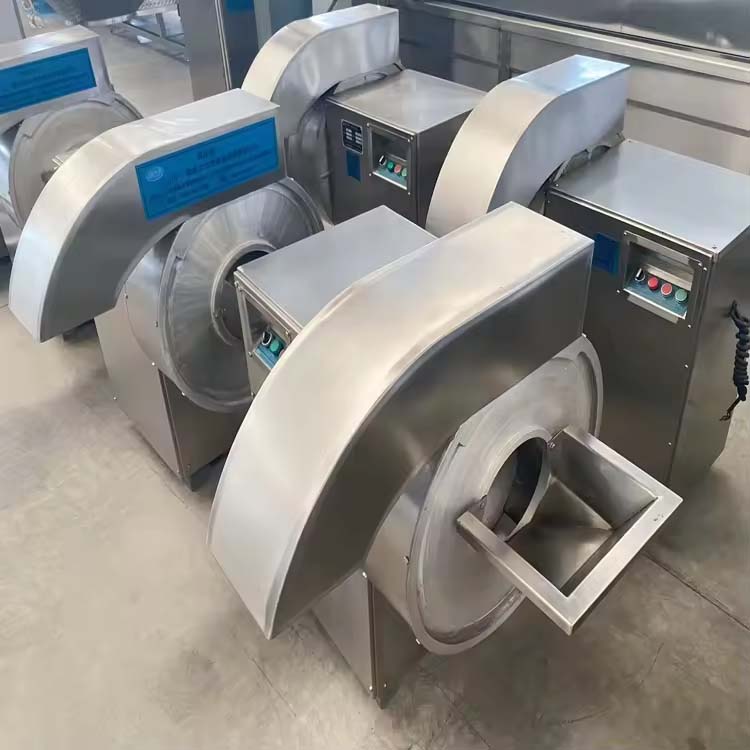

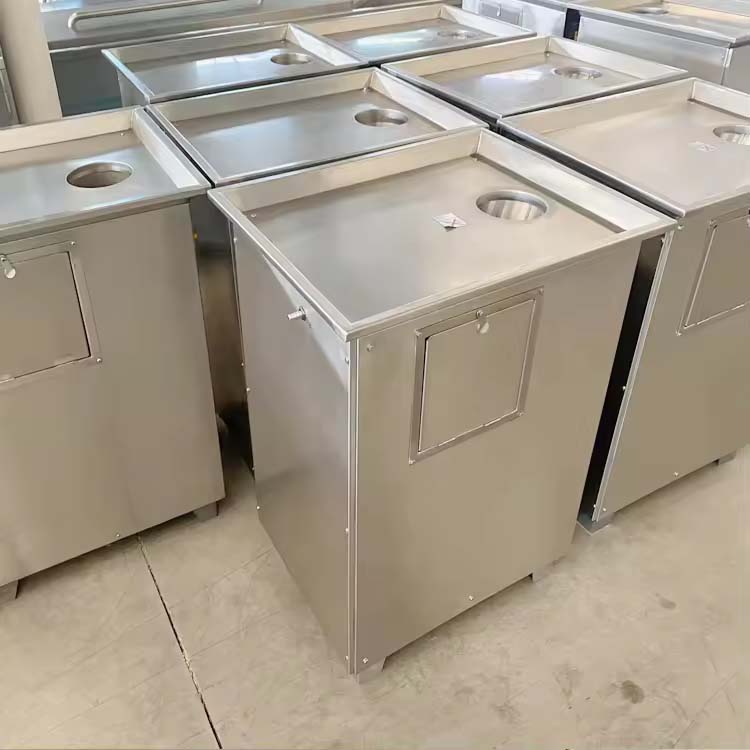

Potato chip and chip machine
Advantages
Reliable quality and convenient operation;
complete one-time cutting;
cut finished products with consistent
dimensions;
smooth and uniform cross-section.
Parameter
|
Model |
Production |
Power |
Voltage |
Dimensions |
|
YYQS400 |
200kg/h |
0.75KW |
220V |
650*510*700mm |
|
YYQS400B |
600kg/h |
0.75KW |
380V |
730*590*920mm |
|
YYQS600 |
800kg/h |
1.5KW |
380V |
955*880*960mm |
|
YYQS600B |
1000kg/h |
1.5KW |
380V |
820*760*1000mm |

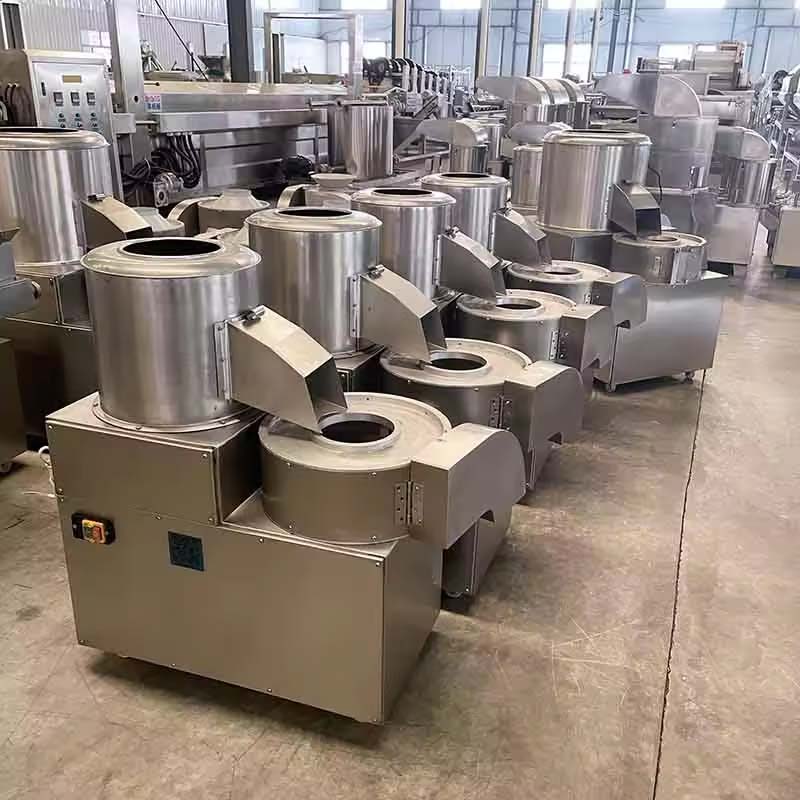

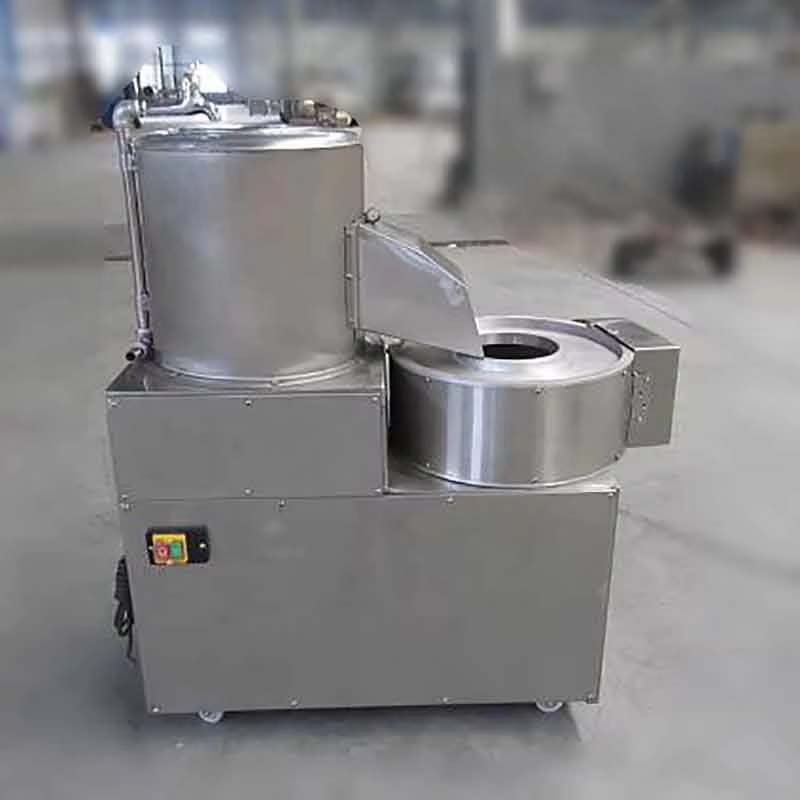

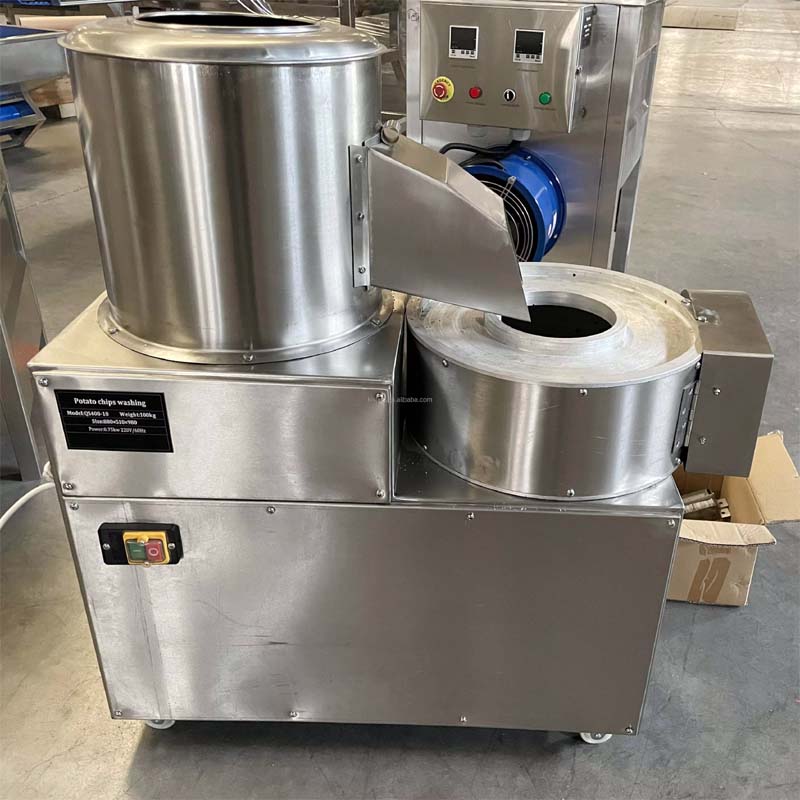

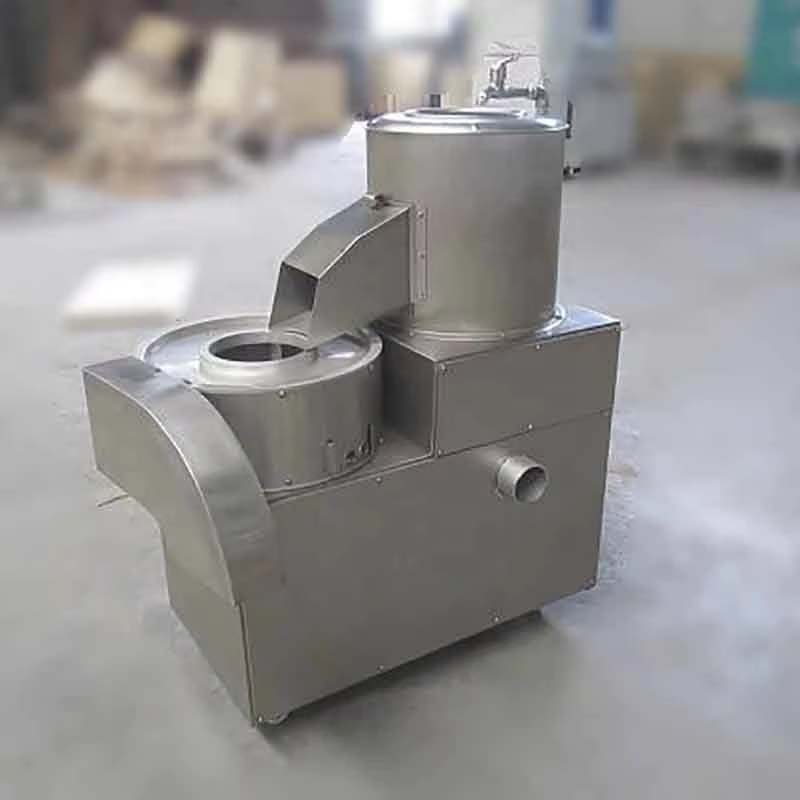

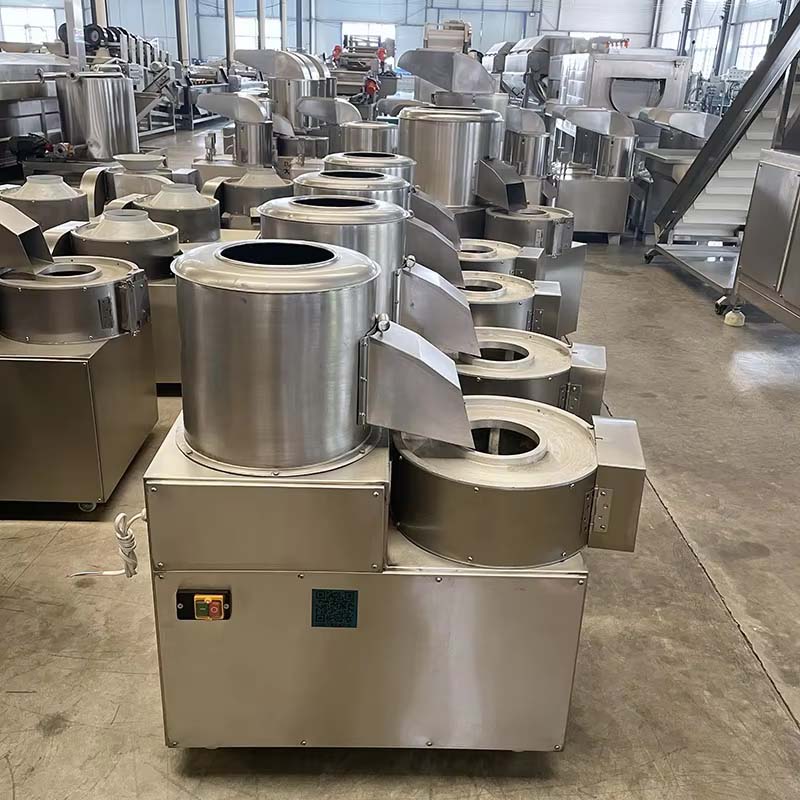

Semi-auto potato chips processing machine Peeling and cutting integrated machine
The equipment has
a simple and elegant appearance, a compact
design, and a small footprint, making it very
suitable for use in small processing plants and
cafeterias and restaurants; It can be peeled or
shredded separately, with more comprehensive and
practical functions; Using diamond sand for
peeling, only removing the skin of potatoes to
avoid waste of raw materials; Slicing,
shredding, and slicing are all possible, making
it versatile and versatile; Made of stainless
steel, durable, rust free, and non polluting
ingredients, it meets national food grade
requirements.
Parameter
|
Model |
Production |
Power |
Voltage |
Dimensions |
|
YYQS400-10 |
100kg/h |
0.75KW |
220V |
880*510*980mm |
|
YYQS400-30 |
200kg/h |
1.1KW |
380V |
1130*660*1130mm |

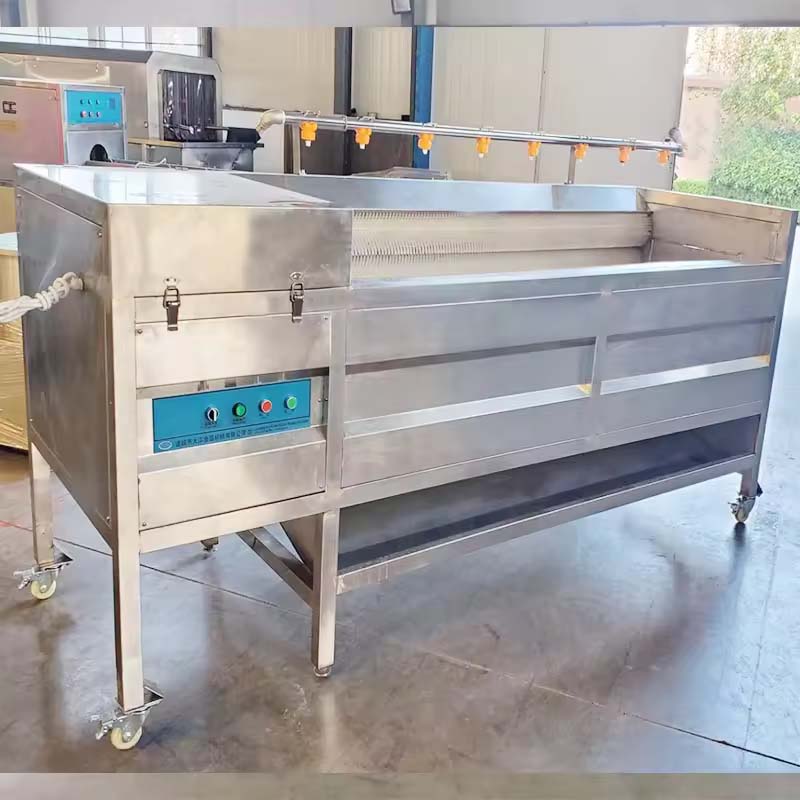

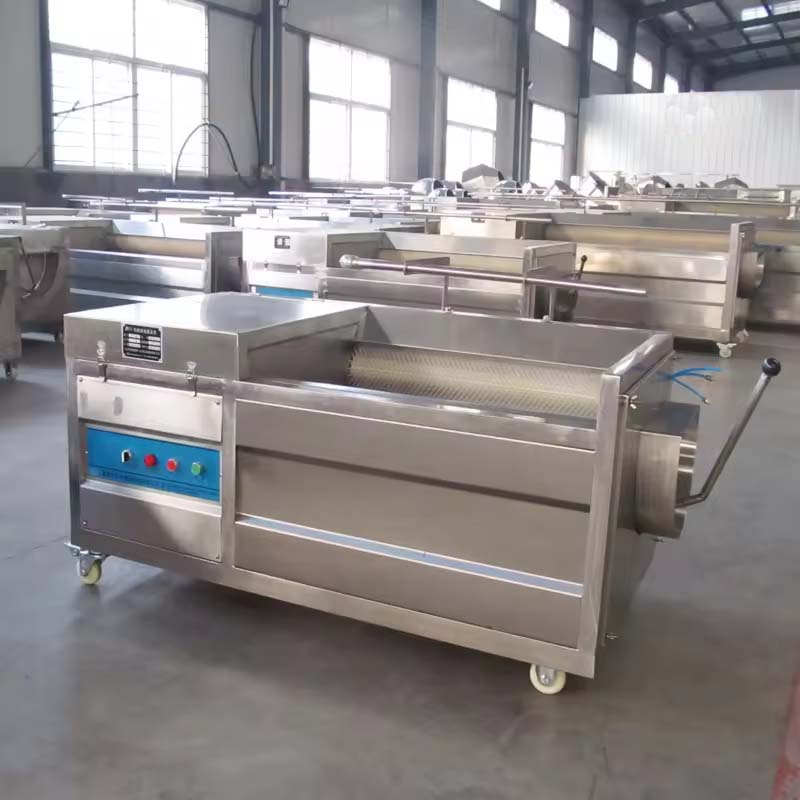

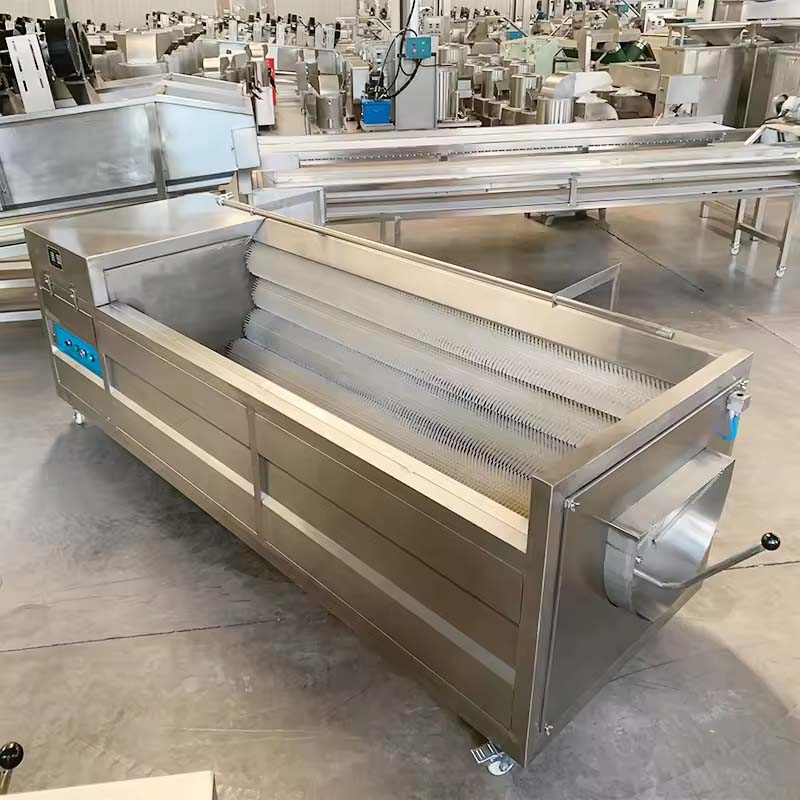

*Washing peeling
machines can remove stubborn impurities on the
surface of materials with high-pressure spray
and brush rollers.
*The rollers are
made of imported nylon wool with good wear
resistance and durability. We can choose the
different hardness of nylon brush rollers
according to the varieties of fruits and
vegetables for you, which can not only clean but
also do not harm the fruits and vegetables.
*This machine is
suitable for potato, carrot, lotus root, onion,
taro, sweet potato, cassava and other root
vegetables cleaning and peeling.
Parameter
|
Model |
Capacity |
power/Voltage |
Weight |
Dimensions |
|
YYMQT800 |
800kg/h |
1.1kw/380V |
260kg |
1600*730*840mm |
|
YYMQT1200 |
1500kg/h |
1.5kw/380V |
300kg |
2120*910*1020mm |
|
YYMQT1500 |
1800kg/h |
2.2kw/380v |
380kg |
2400*910*1020mm |
|
YYMQT1800 |
2000kg/h |
3kw/380v |
400kg |
2550*910*1020mm |
|
YYMQT2000 |
2500kg/h |
3kw/380v |
460kg |
2900*910*1020mm |
|
YYMQT3000 |
3500kg/h |
4kw/380v |
490kg |
2950*1055*1045mm |
|
YYMQT4000 |
4500kg/h |
4kw/380v |
600kg |
3030*1170*1215mm |
|
YYMQT5000 |
5500kg/h |
5.5kw/380v |
700kg |
3050*1250*1310mm |
Other machinery
|
 |
 |
| |
|
|

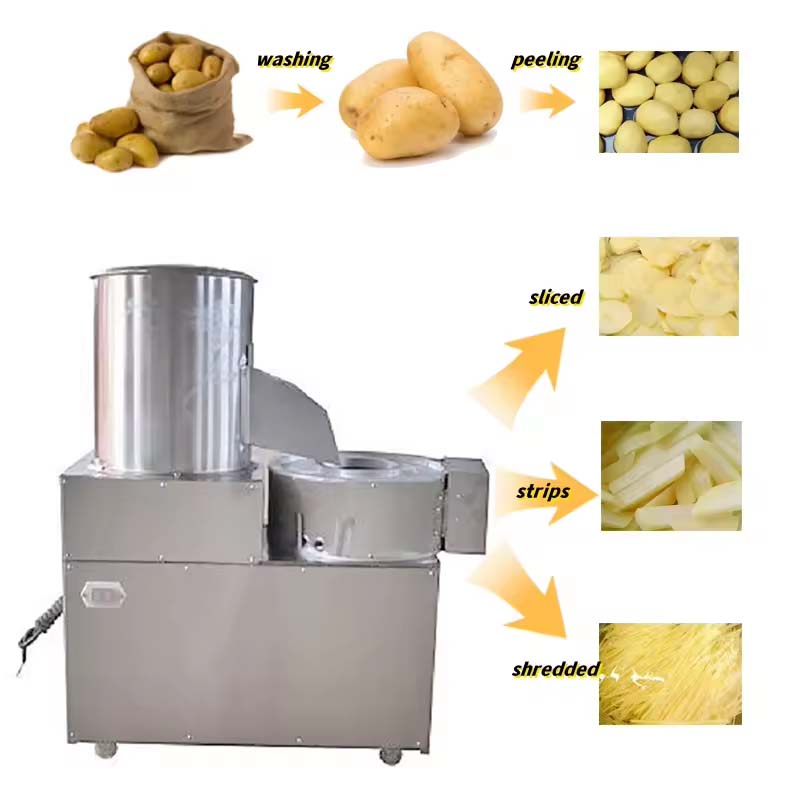

Washing& Peeling& Cutting Machine
3 in 1 machine, can wash, peel and
cut potatoes into slices or sticks. |

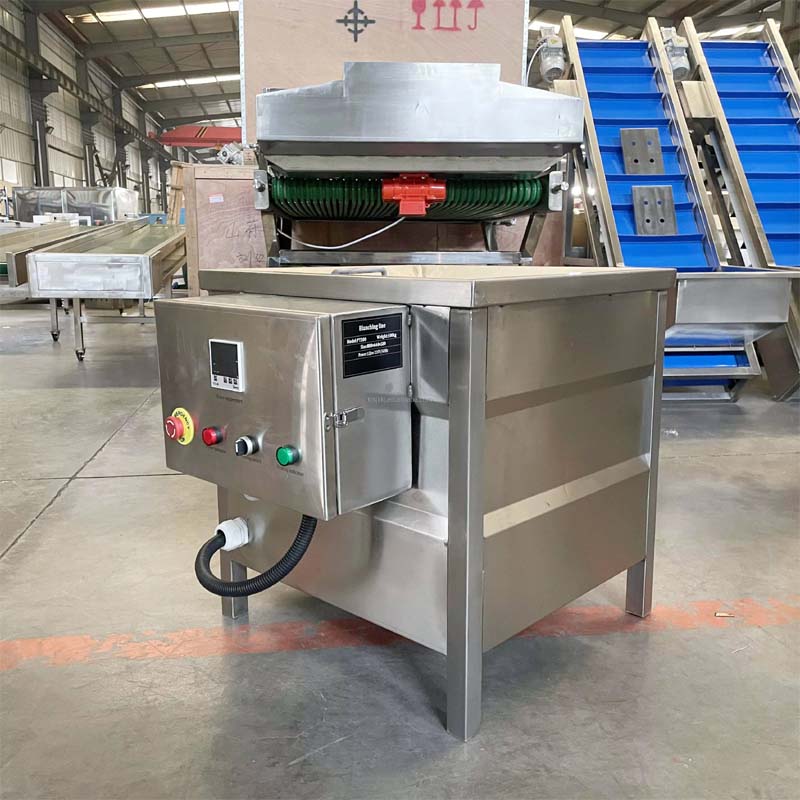

Blanching Machine
Heating and temperature control, and
to make the potato chips much easier
for frying. |
| |
|
|
 |
 |
| |
|
|

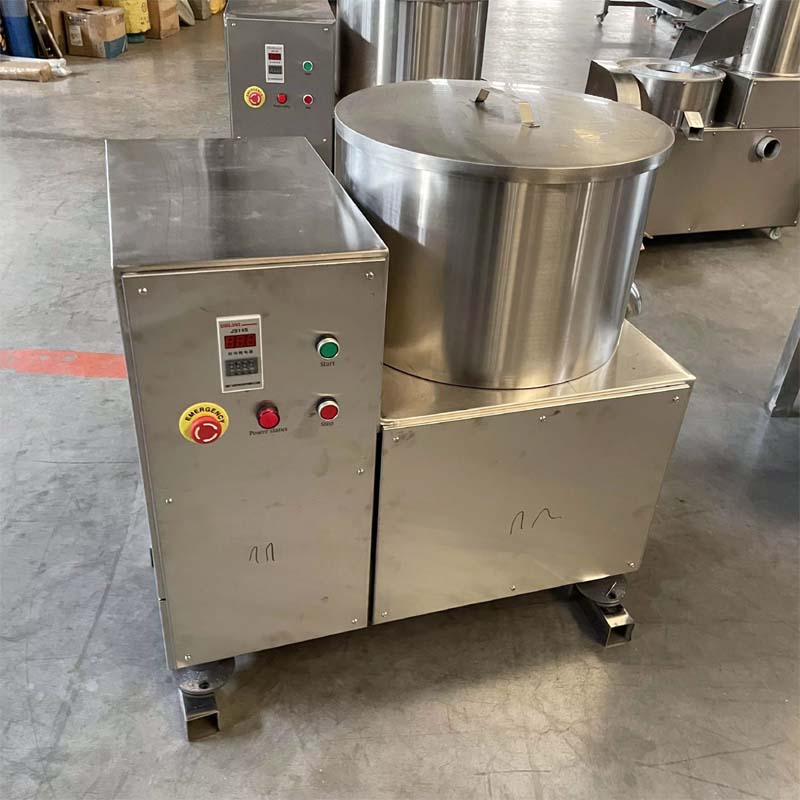

De-Watering/Oiling Machine
Remove the water or oil on the
surface of the fried chips or french
fries. |

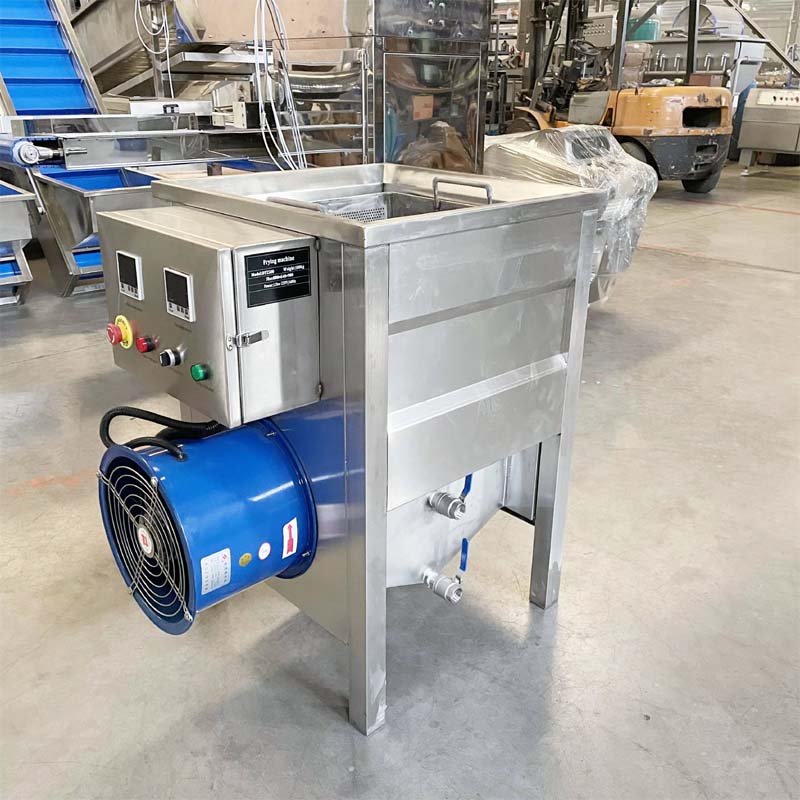

Frying Machine
This machine is used to fry unified
potato chips or french fries. |
| |
|
|
 |
 |
| |
|
|

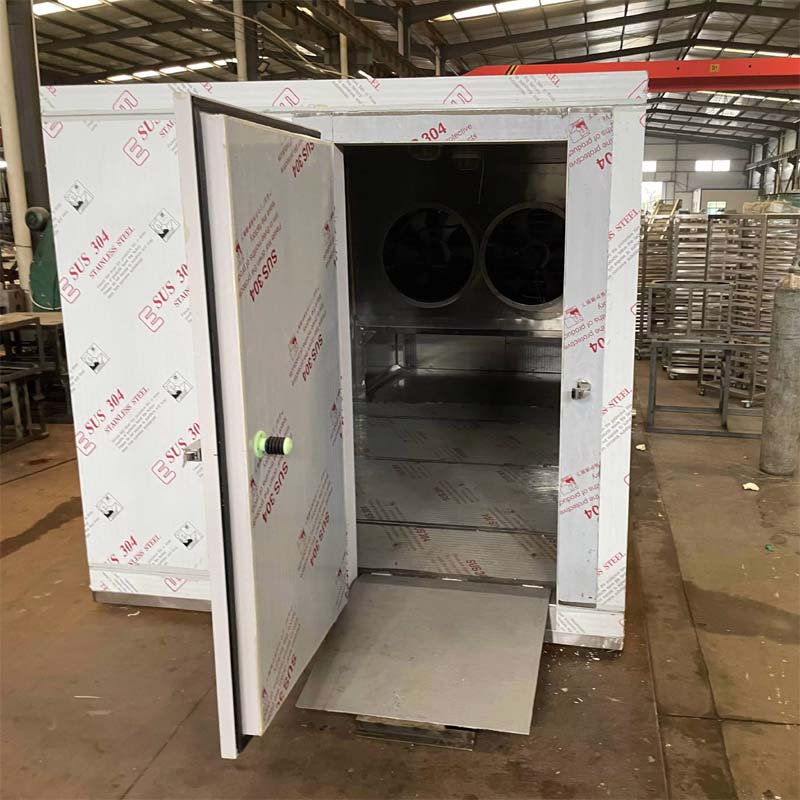

Quick Freezer
Quick freezing machine for frozen
french fries making. |

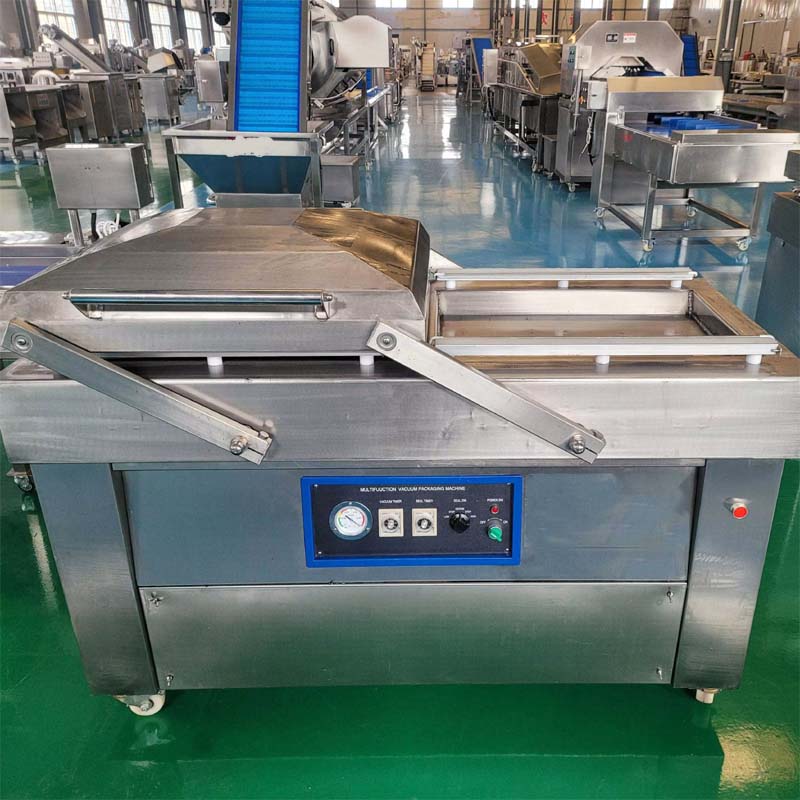

Semi-Auto Packing Machine
Vacuum nitrogen packing machine has
two workrooms, suitable for vacuum
and nitrogen packing of large
quantities of products. |
We can customize the machine according to the
actual production needs of customers. For more
details, please contact me.
|
