YIYUAN can provide automatic
packing palleting of various
coiled materials. Materials
covered include metals,
flexible packaging materials
and other categories. Metals
include copper foil,
aluminum foil and so on;
Flexible packaging materials
include paper rolls,
aluminized film, PP film, PE
film, PVC film and various
coloring films; Others
include yarn rolls, building
materials such as waterproof
rolls.

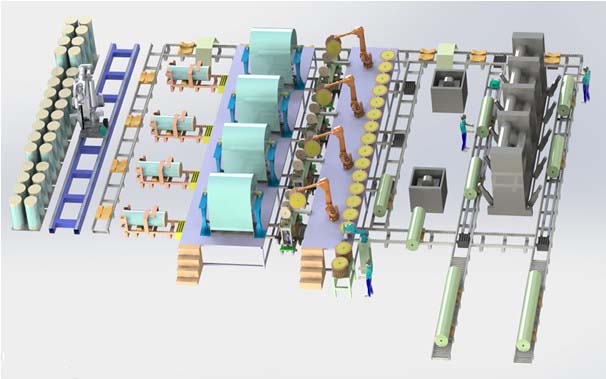

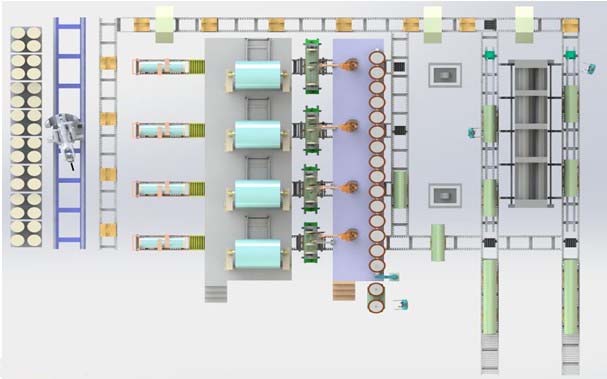

The equipment can realize
the automatic packaging and
stacking of flexible
packaging materials. The

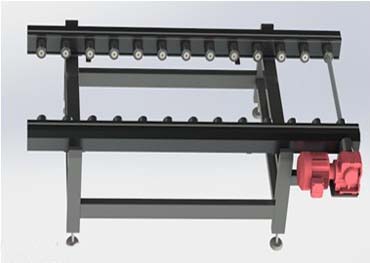

conveying line adopts the
conveyer mode of two ends
drum, which can realize the
backflow of the fixture.
Bubble wrap is used for the
outer packaging of the
product. The packaging
equipment is fully automatic
equipment for coil materials
independently developed by

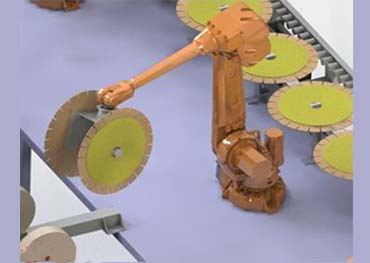

our company. Stacking mode
is robot stacking. The
automatic production line
can greatly improve the
production efficiency,
improve the utilization of
space, and reduce the
production cost of
enterprises.
Specifications
|
Material category |
material |
Material diameter（mm） |
Single roll width
(mm) |
Outer packaging materials |
Conveying method |
|
Metal |
Copper foil roll |
0-1000 |
0-2500 |
Foam, PVC, PE, etc. |
AGV, RGV or conveyor line |
|
Foil roll |
0-1000 |
0-2500 |
|
Flexible packaging |
PP film roll |
0-1500 |
0-4000 |
Bubble film, kraft paper,
PVC, PE, etc. |
AGV, RGV or conveyor line |
|
PE film roll |
0-1500 |
0-4000 |
|
PVC film roll |
0-1500 |
0-4000 |
|
Paper roll |
0-2000 |
0-3000 |
|
other |
Yarn roll |
0-1000 |
0-800 |
PP, PVC, PE, etc. |
AGV, RGV or conveyor line |

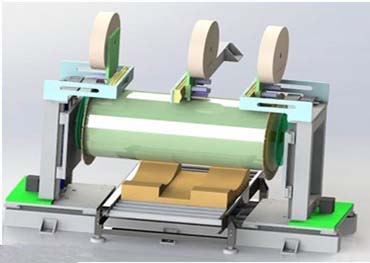

Main equipment model
pictures
|
