1.Description
"YIYUAN" SUT series
palletizing robot produced
from YIYUAN with technical
level reached leading
domestic and international
advanced. its customers have
reached more than 300
domestic and foreign
customers, the market covers
food, beverages, beer, feed,
chemicals, building
materials, grain, medicine,
and appliance industry.
SUT series robots, which
have unique linear
actuators, energy saving arm
design, simple user
interface and leaded
tailoredgrips, can customize
professional robotic
solutions for different
production lines and
materials for our
customers;Its superior
accuracy, speed, a highly
efficient and stable
performance makeone robot to
work with several production
lines, the payload can be up
to 120KG-300KG, andalso can
be applied to feed,
chemicals, grain and oil,
food, building materials,
cosmetics, liquor, beverage,
pharmaceutical, household
appliances, 3C electronics
and other industries.
2.Features
* Unique linear actuators:
Cleverly four-bar linkage,
the robot operation program
easier and more precise
control.
* Energy saving design arm:
high-strength aluminum alloy
non-collection, not only arm
movements more flexible,
while also reducing energy
consumption.

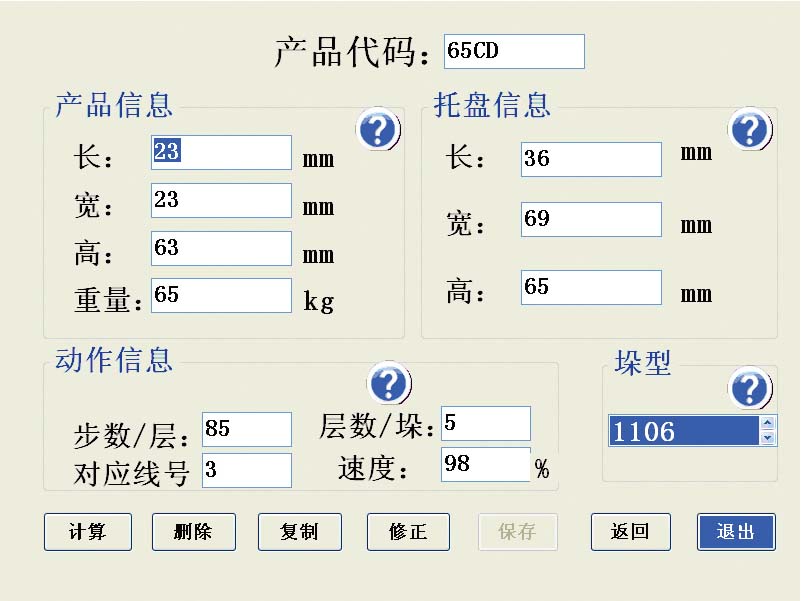

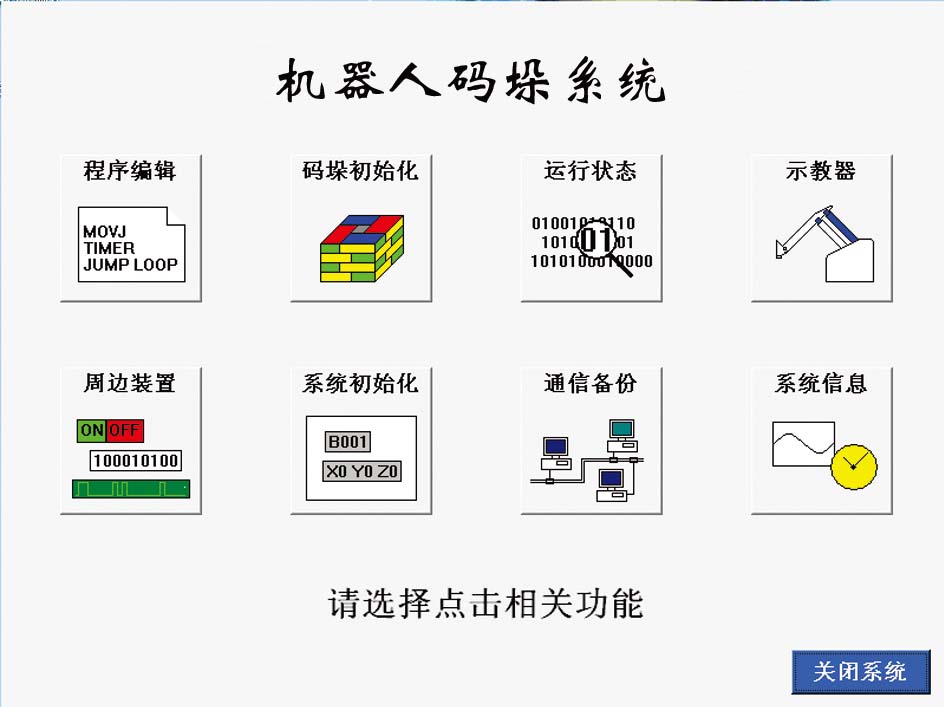

* Compact teaching and
friendly graphical user
interface: less teaching
position,and more compact
interface make easier site
operation, and better
on-site efficiency.
* Real-time site monitoring:
precision-site control
software, can understand the
site program is operating
normally, automatic
interference monitoring to
avoid the collision.
* Pre-layout scene
simulation: using powerful
ROBOPACK-SIMU 3D simulation
/ programming software, you
can easily complete the
robot programming, layout,
collision monitoring,
on-site motion simulation
and other work in the
office, thus greatly
reducing the on-site
commissioning time and
improve the overall
production efficiency.
3.Advantages
*
Flexible programmatically
*
Manual teaching mode
*
Off-line programming mode
*

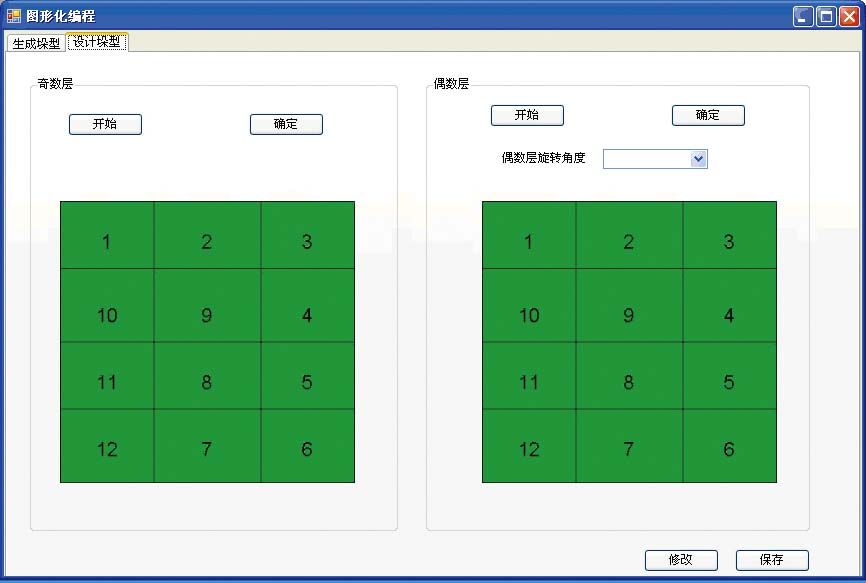

Graphical programming
4.Parameters
|
Project |
Specification |
|
SUT-120 |
SUT-200 |
SUT-300 |
|
DDF |
4 |
|
Installation |
To the ground |
|

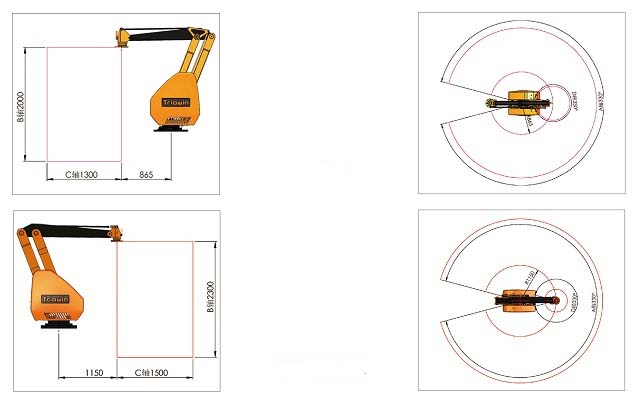

Motion Area |
A(Rotation) |
330° |
330° |
330° |
|
B(Up&Down) |
2000mm |
2300mm |
2300mm |
|
C(Forward&Resever) |
1300mm |
1500mm |
1500mm |
|
D(Gripper) |
330° |
330° |
330° |
|
Playload |
120kg |
200kg |
300kg |
|
Cycle |
1400r/h |
1600r/h |
1000r/h |
|
Driver |
AC Servo Motor |
|
Repeat Pos Precision |
+0.5mm |
|
Power |
4kw |
6.5kw |
8kw |
|
Weight |
750kg |
1100kg |
1500kg |
|
Operation Condition |
Ambient temperature：-30~45度：85% |

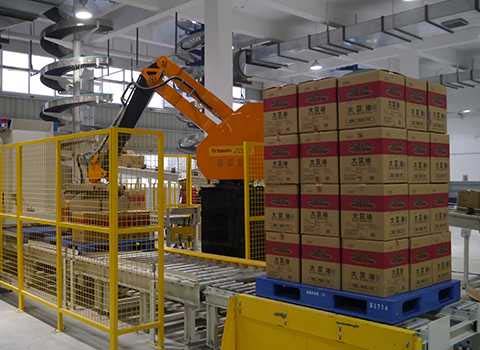

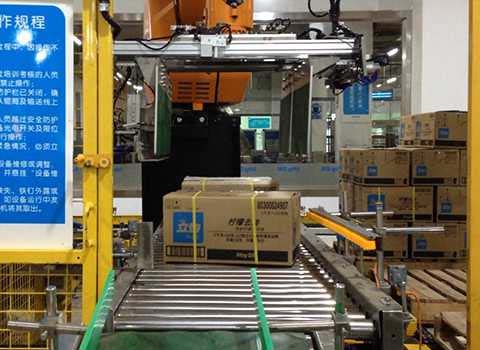

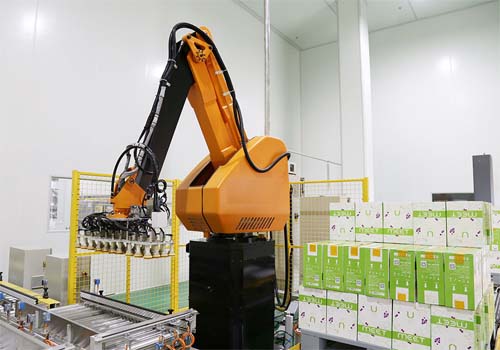

Case
|
