pH meter

pH meter

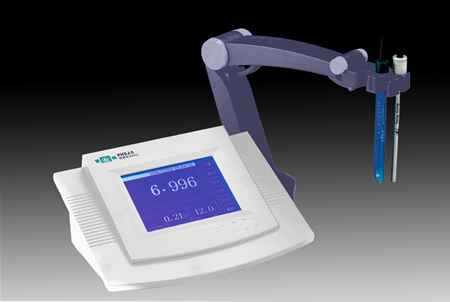

PH METER

Model：PHSJ-5

Specifications

1.With touching LCD displaying, operation easy; 2.To select one or more PH buffer solutions to calibrate the meter; 3.With more calibration functions (max/mum five points calibration); 4.RS-232 interface; 5.Protection from electricity cutting off; 6.Measuring results can be stored, deleted, viewed、communicated and printed.

Characteristics

1. Measuring range:
　　pH: (-2.000~18.000)pH
　　mV: (-1999.9~1999.9)mV
T: (-5.0~105.0) ℃
2. Accuracy :
　　pH: ±0.002pH±1 bit
　　mV: ±0.03%(FS) ±1 bit
　　T: ±0.2℃±1 bit
3. Resolution:
　　pH: ±0.001pH

mV:±0.1mV
　　T: ±0.1℃
4. Range of temp. compensation: (-5.0~105.0) ℃
5.Measured solution temperature: (5~60) ℃

A-N Series Electronic Analytical Balance

Model：PHSJ-4A

Characteristic:

1. Blue screen & LCD displaying;

2. Automatic and manual temperature compensation, automatic calibration and automatic calculation of percentage theoretical slope of electrodes;

3. Measurement results can be stored, deleted, searched and printed. It can store 50 sets of measurement data;

4. Protection from electricity cutting off.;

5. One point or two points automatic calibration can be conducted on the meter with five types of pH buffer solution selected by users within the temperature range of 0-60℃;

6. With RS-232 interface for connecting TP-16 printer using DC 1.0 software of data-collection to communicate with computers;

7. Users can measure the pH value of ultra-pure water, pure water and boiler water through adjustment of equipotential point to select special electrodes.

Specification:

1. Measurement range : pH: (0.000~14.000)pH

mV: (-1999.9~1999.9)mV

Temp.: (-5.0~105.0) ℃

2. Resolution: pH:0.001 pH, 0.01pH, 0.1pH

mV:0.1 mV

Temp.: 0.1 ℃

3. Accuracy pH: ±0.005pH±ibit

mV: ±0.2mV(in the range of ±399.9mV) ±1bit

or ±0.03%(FS)(in the other range) ±1bit

Temp.: ±0.3 ℃±1bit

4. Input impedance:3x 10 ¹²Ω

5. Stability: ±0.005pH ±1bit/3h

6. Temperature compensation range: -5~105.0℃

7. The temperature of the measured solution:5~60℃

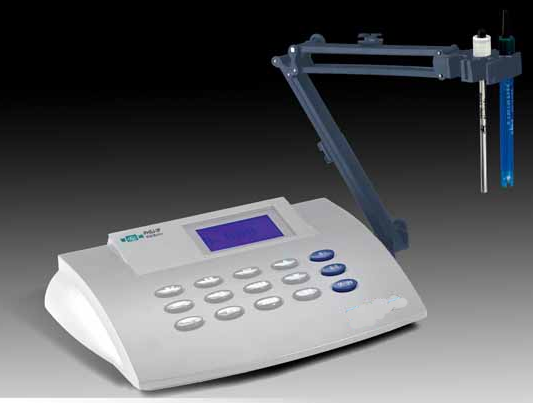

PHSJ-3F pH meter

Model：PHSJ-3F

Characteristics

l Microprocessor technology and dot matrix LCD, easy to operate.

l Automatic or manual temperature compensation, automatic calibration and automatic calculation of percentage theoretical slope of electrodes.

l Measurement results can be stored, deleted, searched and printed. It can store 50 sets of measurement data.

l Protection from electricity cutting off.

l One point or two points automatic calibration can be conducted on the meter with five types of pH buffer solution selected by users within the temperature range of 0-60 °C.

l With RS-232 interface for connecting TP-16 printer using REX DC 1.0 software of data-collection to communicate with computers.

l Users can measure the pH value of ultra-pure water, pure water and boiler water through adjustment of equipotential point and special electrodes selected.

l Patent of external form design is at number: ZL 00308509.0

l Equipped with pH composite electrode of E-201-C and temperature sensor of T-818-B-6 made by Rex.

Specifications

1. Measurement range

pH (-2.00-18.00)pH mV:(-1999-1999)mV, temperature (0.0-100.0) °C

2. Resolution

pH: 0.01 pH, mV: 1 mV; temperature: 0.1 °C

3. Accuracy

pH: ±0.01pH

mV: ±1mV (± 1 digit)

Temperature: ±0.3°C (± 1 digit)

4. Input impedance: 1´10¹² W

5. Stability: ±0.01pH ± 1 digit/3h

6. Temperature compensation range: 0.0-100.0°C.

7. The temperature of the measured solution: 5-60 °C

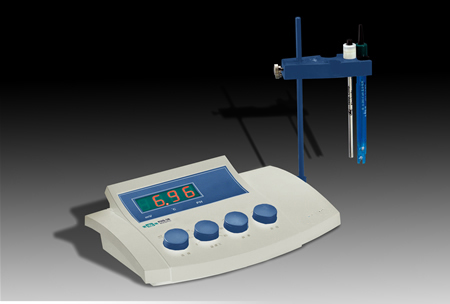

PHS-3B and PHS-3C pH meter

Model：PHS3B & PHS-3C

Characteristics

l 3LED

l Automatic or manual temperature compensation

l Two-points calibration

Specifications

1. Measurement range

pH (0.00-14.000)pH mV:(-1999 ?C1999 )mV, temperature: 0.0-100.0 °C

2. Resolution

pH: 0.01 pH, mV: 1mV; temperature: 0.1 °C

3. Accuracy

pH: ±0.01pH

mV: ±0.1% (FS)

Temperature: ±0.5°C ±1 digit

4. The temperature of the measured solution: 0-60 °C

*PHS-3B: the range of automatic temperature compensation: 0-100°C.

Digital pH meter

Model：PHS-2F

Characteristics

l 3LED

l Manual temperature compensation

l Two-points calibration

Specifications

1. Measurement range

pH (0.00-14.000)pH mV:(-1400 ?C1400 )mV

2. Resolution

pH: ±0.01 pH, mV: 1mV;

3. Accuracy

pH: ±0.01pH, mV: ±2 mV±1 digit

4. The temperature of the measured solution: 0-60 °C

Portable pH Meter

Model：PHBJ-260

Characteristics

l Microprocessor technology.

l Automatic calibration, automatic or manual temperature compensation.

l Measurement results can be stored, deleted, searched and printed. It can store at most 250 sets of measurement data.

l With low voltage display, automatic switching off, protection from electricity cutting off. With 4 pieces of No.5 batteries.

l With RS-232 interface.

Specifications

1. Measurement range

pH (0.00-14.00)pH mV:(-1800 ?C1800 )mV, temperature: 0.0-60.0 °C

2. Resolution

pH: 0.01 pH, mV: 0.1mV; temperature: 0.1°C.

3. Accuracy

pH: ±0.01pH, mV: ±0.1 % FS, temperature: ±0.3 °C

4. The temperature of the measured solution: 0-60 °C
