Wood Door making
production line

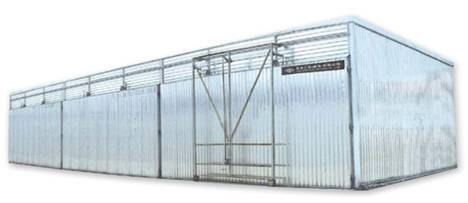

Lumber Dry Kiln
¡¡
Main Technical Parameters
|
Model |
Loading quantity |
Size of Lumber |
Inner size of Dry Kiln |
Electrical machine quantity |
Total Power |
Draught fan type |
Heat Source |
|
CTNMYHG-30 |
30
|
4.0¡Á3.6¡Á4.4 |
4.4¡Á5.0¡Á5.7 |
2 |
6 |
Ø800 |
steam |
|
CTNMYHG-80 |
40 |
4.0¡Á4.6¡Á4.4 |
4.4¡Á6.2¡Á5.7 |
2 |
6 |
|
CTNMYHG-100 |
50 |
6.0¡Á3.8¡Á4.4 |
6.4¡Á5.4¡Á5.7 |
3 |
9 |
|
CTNMYHG-120 |
60 |
6.0¡Á4.6¡Á4.4 |
6.4¡Á6.2¡Á5.7 |
3 |
9 |
|
CTNMYHG-160 |
80 |
6.0¡Á6.2¡Á4.4 |
6.4¡Á8.0¡Á5.7 |
4 |
12 |
|
CTNMYHG-200 |
100 |
8.0¡Á6.0¡Á4.4 |
8.4¡Á8.0¡Á5.7 |
5 |
15 |
|
CTNMYHG-240 |
120 |
10¡Á6.0¡Á4.4 |
10.5¡Á8.0¡Á5.7 |
6 |
18 |
|
CTNMYHG-300 |
150 |
12¡Á6.0¡Á4.4 |
12.6¡Á8.0¡Á5.7 |
8 |
24 |
|
CTNMYHG-400 |
200 |
12¡Á7.0¡Á4.8 |
12.6¡Á9.2¡Á6.1 |
10 |
30 |

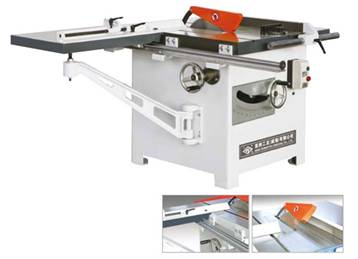

Table-Sliding Circular Saw
¡¡
¡¡
Technique parameter
|
Speed of mainshaft |
3400r/min |
|
Maximum cutting thickness |
75mm |
|
Angle of inclination of saw
web |
0-45¡ã |
|
Saw Blade Size |
Ø300¡ÁØ30¡Á3.2mm |
|
Motor power |
3kW |
|
Boundary dimension |
1680¡Á1390¡Á900mm |
|
Net weight |
440kg |

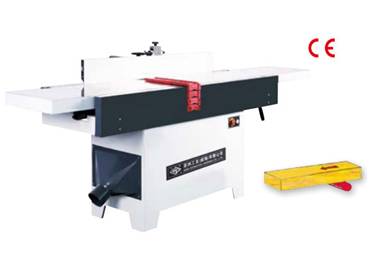

Wood-working Dado Planer
Technique Parameter
| ¡¡ |
¡¡ |
CTNMB503F |
CTNMB504F |
CTNMB505F |
CTNMB506F |
|
Max.
planing width |
mm |
300 |
400 |
500 |
630 |
|
Max.
planing depth |
mm |
4 |
5 |
5 |
5 |
|
Spindle
speed |
r/min |
5600 |
5000 |
5000 |
5000 |
|
Number of
blades |
|
3 |
4 |
4 |
4 |
|
Cutting
diameter |
mm |
Ø87 |
Ø102 |
Ø102 |
Ø102 |
|
Total
length of worktable |
mm |
1800 |
2500 |
2500 |
2500 |
|
Motor
power |
kW |
2.2 |
3.0 |
4.0 |
5.5 |
|
Motor
speed |
r/min |
2840 |
2880 |
2890 |
2900 |
|
Overall
dimensions |
mm |
1800¡Á740¡Á1010 |
2500¡Á810¡Á1050 |
2500¡Á910¡Á1050 |
2500¡Á1040¡Á1050 |
|
Net.weight |
kg |
300 |
450 |
550 |
640 |
¡¡
¡¡

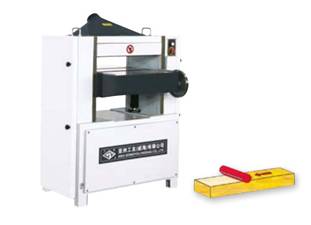

Single-side
Wood-working Thicknesser
Technique parameter
| ¡¡ |
¡¡ |
CTNMB104H
|
CTNMB105H |
CTNMB106H |
CTNMB107H |
|
Max. planing width |
mm |
400 |
500 |
630 |
700 |
|
Max. planing thickness |
mm |
200 |
200 |
200 |
200 |
|
Min. planing thickness |
mm |
8 |
8 |
8 |
8 |
|
Min. planing length |
mm |
220 |
220 |
220 |
220 |
|
Feeding speed |
m/min |
8;10;12 |
8;10;12 |
8;10;12 |
8;12;16 |
|
Max.planing depth |
mm |
5 |
5 |
5 |
5 |
|
Spindle speed |
r/min |
4800 |
4800 |
4800 |
4800 |
|
Blade number |
|
4 |
4 |
4 |
4 |
|
Spindle dia. |
mm |
Ø105 |
Ø105 |
Ø105 |
Ø123 |
|
Motor |
kW |
4 |
4 |
7.5 |
7.5 |
|
Dust outlet dia. |
mm |
Ø100 |
Ø100 |
Ø100 |
Ø100 |
|
Overall dimensions |
mm |
850 ¡Á 830 ¡Á1230 |
950 ¡Á 830 ¡Á 1230 |
1080 ¡Á 830 ¡Á 1280 |
1150 ¡Á 930 ¡Á 1320 |
|
Net.weight |
kg |
445 |
476 |
553 |
663 |
¡¡

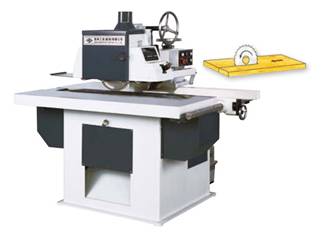

Auto-feed Circle Saw
Technique parameter
| ¡¡ |
¡¡ |
CTNMJ153 |
CTNMJ154 |
|
Min. sawing
length |
mm |
200 |
250 |
|
Sawing
thickness |
mm |
10-85 |
10-110 |
|
Sawblade dia. |
mm |
Ø300 |
Ø400 |
|
Spindle dia. |
mm |
Ø30 |
Ø30 |
|
Spindle speed |
r/min |
5000 |
3800 |
|
Main motor |
kW |
7.5 |
11 |
|
Feeding motor |
kW |
1.5 |
1.5 |
|
Feeding speed |
m/min |
15;20;25;31 |
6~25 |
|
Overall
dimensions |
mm |
1669¡Á1045¡Á1356 |
1809¡Á1175¡Á1490 |
|
Net.weight |
kg |
924 |
1128 |

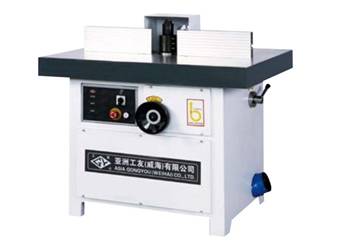

Vertical
Single-spindle Milling Machine
¡¡
Technique
parameter
|
Max. milling
height |
130mm |
|
Min. copy
radius |
R45mm |
|
Cutter dia. |
Ø40mm(Ø35mm
Optional) |
|
Spindle speed |
10000,8000,6000r/min |
|
Table size |
900¡Á700mm |
|
Motor power |
3kW |
|
Overall
dimensions |
900¡Á700¡Á995mm |
|
Net.weight |
260kg |
¡¡

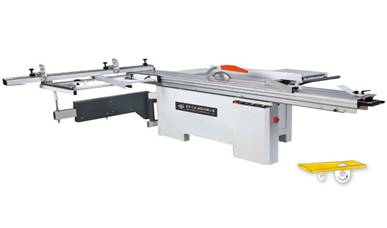

Precision
Panel Saw
Technique
parameter
|
Scoring saw
speed |
9000r/min |
|
Scoring
spindle dia. |
Ø20mm |
|
Scoring
sawblade dia. |
Ø120mm |
|
Scoring saw
motor power |
0.75kW |
|
Overall
dimensions |
2710¡Á2920¡Á856mm |
|
Net.weight |
620/630kg |
|
Max.moveable
distance of table |
2800mm |
|
Max.sawing
thickness |
60mm |
|
Main sawblade
dia. |
Ø300mm |
|
Main spindle
dia. |
Ø30mm |
|
Main spindle
speed |
5400/3800r/min |
|
Main motor
power |
4kW |
¡¡

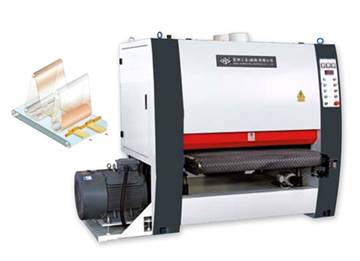

Two-head
Wide Belt Sander
¡¡
Technique
parameter
|
|
|
CTNBSG2213W |
CTNBSG2210W |
|
Max.Sanding
width |
mm |
1000 |
1300 |
|
Max.Sanding
thickness |
mm |
110 |
110 |
|
Min.Sanding
length |
mm |
200 |
200 |
|
Sand belt
speed(Group1) |
m/s |
20 |
20 |
|
Sand belt
speed(Group2) |
m/s |
16 |
16 |
|
Sand belt
size |
mm |
1020¡Á2000 |
1330¡Á2200 |
|
Total power |
kW |
30 |
55 |
|
Motor for
sand belt Group1 |
kW |
15 |
30 |
|
Motor for
sand belt Group2 |
kW |
11 |
22 |
|
Motor for
conveyer belt |
kW |
1.5 |
4 |
|
Table lifting
motor |
kW |
/ |
0.37 |
|
Brushing
roller motor |
kW |
/ |
0.37 |
|
Feeding speed |
m/min |
5-25 |
1-30 |
|
Pressure of
compr |
MPa |
>0.55 |
>0.55 |
|
Consumption
of compressed air |
m³/min |
/ |
1.35 |
|
Air flow of
air blower for dust
collector |
m³/h |
/ |
7900 |
|
Air speed for
dust collector pipe |
m/s |
¡Ý25 |
25 |
|
Overall
dimensions |
mm |
/ |
2230¡Á1950¡Á2260 |
|
Net.weight |
kg |
2000 |
2800 |
¡¡

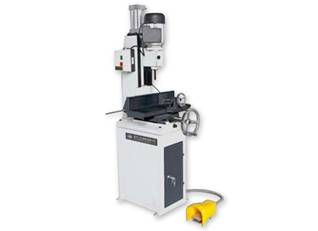

Vertical
Single Spindle Mortising Machine
Technique
parameter
|
Max.mortising depth |
125mm |
|
Max.mortising width |
soft 10~25mm hard 10~20mm |
|
Worktable longitudinal
stroke |
400mm |
|
Worktable cross stoke |
90mm |
|
Motor power |
1.1/220kw/v |
|
Spindle speed |
2800r/min |
|
Overall dimensions |
515x760x1530mm |
|
Net.weight |
180kg |
¡¡
|
