Infrared moisture tester

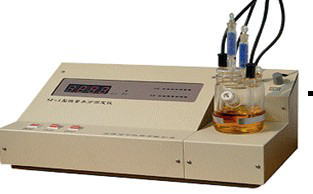

YSF-1 Micro water meter
Product introduction
This
tester adopts Carle Fischer coulometer
method to test the moisture of the
samples. It overcomes the low accuracy,
high quantity reagent, operation
inconvenient of the Carle Fischer
titration tester. This tester has used
the big electrolysis electric current
and the electric current automatic
control, produces the titrant through
the electrolysis (iodine), thus enables
the reagent to be possible to duplicate
the continual use, the determination
result direct digit demonstrated that
has the parsing process short (a general
1 minute result), the simplicity of
operator, the precision is high, strong
automaticity and so on characteristics,
this tester is suitable for the
petroleum, in the chemical industry
production process and the product the
moisture content determination; In
oil-filled electric appliance equipment
insulating oil moisture content
determination; Materials and so on
medicine, agricultural chemicals, grain,
blasting explosive, pigment, paint,
mineral raw material moisture content
test.
¡¡
Technical Parameter
|
Display system |
Four figures of decimalization |
|
Unit |
µgH2O |
|
Electro analysis and current
|
0-300mA auto control |
|
Testing scope |
5µg-80mg H2O,£¨5ppm~100% moisture
content£© |
|
Precision |
1µgH2O£¨1ppm £© |
|
Error |
(no including sampling error)
when 5 ¦Ì g ~ 1mg ( H2O ) the
error is not more than ¡À 0.3%,
when above 1mg ( H2O ) the error
is not more than plus or minus
0.5%. |
|
Electrical source |
220V ¡À 10% 50Hz, power£º40W |
|
Whisk mode |
Magnetic force whisking |
|
Use environment |
Temperature:5-40 ¡æ, humidity:
¡Ü80% |
|
Appearance size
|
430*230*180mm£¬ net weight£º6kg£¬
carton packing |
¡¡
Packing list
|
1¡¢ |
Host |
1 piece |
|
2¡¢ |
Electrolytic cell |
1 set |
|
3¡¢ |
Electric source line |
1 piece |
|
4¡¢ |
Clamp holder |
1 pair |
|
5¡¢ |
Using introduction |
1 copy |
|
6¡¢ |
Certificate |
1 copy |
|
7¡¢ |
Stirrer |
1 piece |
|
8¡¢ |
0.5µL micro sample injector |
1 branch |
|
9¡¢ |
50µL micro sample injector |
1 branch |
|
10¡¢ |
1mlL sample injector |
1 branch |
|
11¡¢ |
Closed needle |
1 piece |
|
12¡¢ |
Silicone rubber pad |
1 branch |
|
13¡¢ |
Silicone rubber pad |
10 pieces |
|
14¡¢ |
Discoloration silica gel |
2 tubes |
|
15¡¢ |
electrolyte |
1 bottle |
|
16¡¢ |
fuse£¨1A£© |
2 pieces |
|
17 |
Solid sampling device (optional) |
1 piece |
¡¡
The keywords of related product:
moisture content meter, moisture content
tester, coulometer moisture content
tester, capacity moisture content
tester. |
¡¡ |
¡¡
|
