Infrared moisture tester

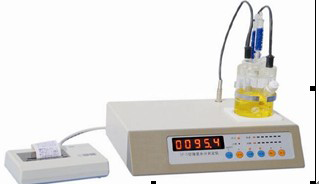

YSF-5B Micro-moisture content tester
¡¡
Product introduction
This tester adopts Carle Fischer
coulometer method to test the moisture
of the samples. It overcomes the low
accuracy, high quantity reagent,
operation inconvenient of the Carle
Fischer titration tester. This tester
has used the big electrolysis electric
current and the electric current
automatic control, produces the titrate
through the electrolysis (iodine), thus
enables the reagent to be possible to
duplicate the continual use, the
determination result direct digit
demonstrated that has the parsing
process short, the simplicity of
operator, the precision is high, strong
automaticity and so on characteristics,
this tester is suitable for the moisture
testing in the process of producing
petroleum, chemical product. Oil filled
electrical equipment insulation oil
determination of water content. Do the
Test moisture in the medicine,
pesticides, food, explosives, pigment,
paint, mineral raw materials and other
materials.
¡¡
Technical Parameter
|
Titration mode |
Carle Fischer coulometer method |
|
Display |
Four figures LED digital display |
|
Testing scope |
0.1¦Ìg~100mgH2O£¨0.1ppm~100%moisture
content£© |
|
Exceeding iodine display |
Exceeding iodine light |
|
Unit |
µgH2O |
|
Electro analysis and current
|
0-300mA auto-control |
|
Sensitivity |
0.1µg (H2O) |
|
Accuracy |
(no including sampling error)
when 0.1¦Ì g ~ 1mg ( H2O ) the
error is not more than ¡À 0.3%,
when above 1mg ( H2O ) the error
is not more than plus or minus
0.5%. |
|
Auto examination
|
Tester could auto examine. |
|
Electric source |
¡¡220V ¡À 10% 50Hz, power: less
than 40W |
|
Use environment |
¡¡ Temperature: 5-40 C; humidity:
less than 80% |
|
Appearance size |
320 * 260 * 90mm |
|
¡¡ |
