Infrared moisture tester

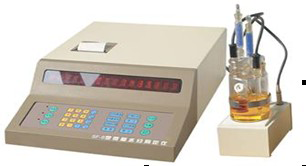

YSF-6 Micro-moisture content tester
¡¡
Product introduction
It
is employing the Carle Fischer
coulometer method for the determination
of liquid, solid and gas samples in the
trace moisture, and the use of advanced
computer control technology, the
instrument of intelligent and strong,
high degree of automation. Have the
advantages of high detection
sensitivity, operational functions,
automatic conversion of PPM, the
percentage, and the determination
results, date printing, equipment fault
self-diagnosis function. It is a high
efficiency and automatic trace moisture
tester.
¡¡
Technical Parameter
|
Name |
Guideline |
|
Test mode |
Control with microprocessor
under Carle Fisher coulometer
|
|
Test scope |
3¦Ìg-150mgH2O£»£¨3ppm~100%£© |
|
Accuracy |
(no including sampling error)
when 1¦Ìg~1mg ( H2O ) the error
is not more than ¡À 0.3%, when
above 1mg ( H2O ) the error is
not more than plus or minus 0.5% |
|
Electro analysis and current |
Auto-control, maximum 400mA |
|
Electro analysis speed |
2.4mgH2O/min(maximum)£» Liquid
sample analysis time less than 3
minutes. |
|
Sensitive threshold |
0.1¦ÌgH2O |
|
End-point display |
Display and buzzer,
displayed:¦ÌgH2O£¬ppm£¬% |
|
Auto-dated |
Year, month, date, hour, minute |
|
calculation |
Content calculation (ppm¡¢%)£¬statistics
calculation(average, standard
deviation, change rate),
conversion |
|
Printer |
20 piece character printer,
paper wide 58 mm |
|
Auto-examination |
Press key, display, printer,
control all the tester¡¯s
auto-examination |
|
Whisk mode |
Magnetic whisking |
|
Using environment |
Temperature£º5-35¡æ£¬humidity£º¡Ü80% |
|
Electric source |
AC220V¡À10%£¬ 50Hz£¬ power£ºless
than 60VA |
|
Appearance size |
Ö÷»ú490*310*120(L x W x H)mm£¬weight:9kg |
¡¡
Standard collocation:
|
No. |
Name |
Type |
Unit |
Quantity |
|
1 |
Micro-moisture content tester
host |
YSF-6 |
Piece |
1 |
|
2 |
stirrer |
¡¡ |
Piece |
1 |
|
3 |
electrolytic cell
|
¡¡ |
Set |
1 |
|
4 |
micro sample injector |
0.5µl |
Branch |
1 |
|
5 |
micro sample injector |
50µl |
Branch |
1 |
|
6 |
micro sample injector |
100µl |
Branch |
1 |
|
7 |
injector |
1ml |
Branch |
1 |
|
8 |
injector needle |
9# |
Piece |
1 |
|
9 |
Form |
¡¡ |
Piece |
1 |
|
10 |
thermo sensitive form |
Width 57mm |
Rolls |
2 |
|
11 |
Silicone rubber pad |
40g |
Box |
1 |
|
12 |
Silicone rubber pad |
¡¡ |
Pieces |
10 |
|
13 |
Electric source line |
¡¡ |
Piece |
1 |
|
14 |
Fuse |
1A |
Branches |
2 |
|
15 |
electrolyte |
500ml |
Bottle |
1 |
|
16 |
Using introduction
|
¡¡ |
Piece |
1 |
|
17 |
Product certificate |
¡¡ |
Piece |
1 |
|
18 |
Solid sampling device (optional) |
¡¡ |
Piece |
1 |
¡¡
