Electronic Weighing Packaging Machine

Use:weighing and packing for granule products

Model:CTNYQYH420/520

Capacity:50-60bag/min,10-50bag/min

Product Description

Specifications

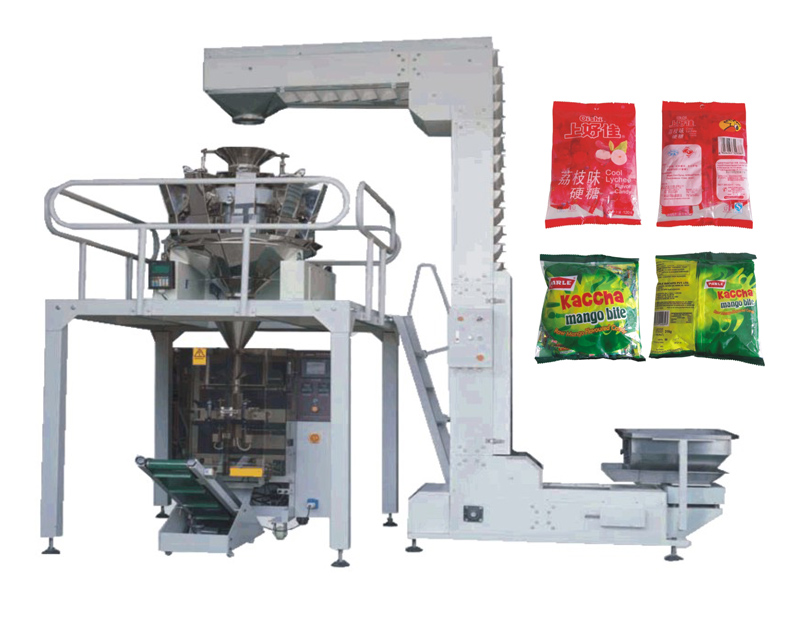

10 Head Automatic Weighting and Vertical Packing Machine

1. PLC CONTROL

2.Automatic weighting

10 Head Automatic Weighting and Vertical Packing Machine

MAIN COMPONENTS:

1.Main Frame 2. 10 heads weighter 3.Z type bucket elevator

2. Vibration feeder 5. Supporting platform

It’s suitable to use in packing the high accuracy and easy fragile material, such as : puffy food, crispy rice, jelly candy, pistachioapple slices, dumpling, chocolate, medicine, pet food, small hardwares etc.

AUTOMATIC VERTICAL PACKAGING MACHINE

SPECIFICATION:

Max.width of roll film	420mm	520mm
Bag length	80-300mm(L)	80-350mm (L)
Bag width	50-200mm(W)	80-250mm (W)
Packaging rate	50-250bag/min(depends on the size)	50-250bag/min(depends on the size)
Measuring range	150-1200ml	2000ml(MAX)
Power voltage	220V/2.2kw	220V/4kw
Dimension	(L)1320(W)950(H)1360mm	(L)1750×(W)1150×(H)1800
Weight of machine	540kg	800kg

10 HEAD WEIGHTER

Measure number	10
Range of single weighing	50-1000g
Quantity precision	0.1-1.5g
Average tolerance of single bag	0.2-0.7g
Hopper capacity	1300ml
Net/gross	300/370Kg
Overall size	(L)1400(W)1130(H)1120
