Digital Load Cell

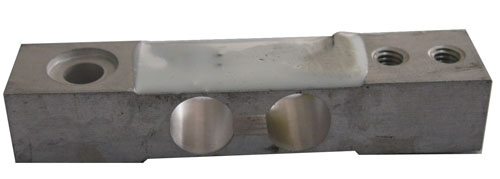

  Load cell for Kitchen scale

Feature:

SIZE	11×12.7×60
CAPACITY	Kg	1、3、5
Combined error		0.02
Rated Output	mV/V	1.0±0.15
Non-Linearity	%F.S	±0.02
Non-repeatability	%F.S	±0.02
Hysteresis	%F.S	±0.02
Creep	(5min)%F.S	±0.02
Temp.effect on Zero	%F.S/10℃	±0.2
Temp.effect on Output	%F.S/10℃	±0.03
Zero balance	mV/V	±0.1
Input Resistance	Ω	400±10
Output Resistance	Ω	350±2
Insulation	MΩ	≥2000
Recommended Excitation	V	≤10
Operation Temp. Range	℃	-10--+40
Safe overload	%F.S	150

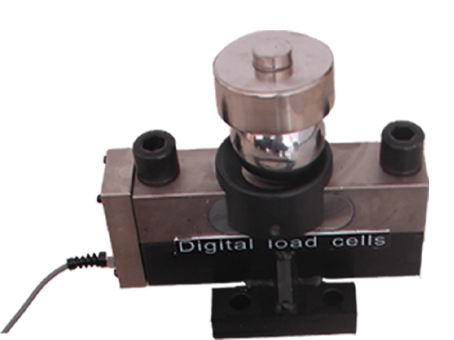

        YYDQS digital load cell

Specification:

1. Connetor：RS485（2 line） 2. Baud rate：38400 3. Comminication distance：≤1000M 4. Max. unite：32pcs 5. Address range：0-31 6. Dictate answer time：<2ms 7. Power supply：6－10V 8. Input current：<50mA 9. Capacity： Model Cap.（EMax） Accuracy YYDQS-10 10t C3 YYDQS-15 15t C3 YYDQS-20 20t C3 YYDQS-30 30t C3 YYDQS-40 40t C3 YYDQS-50 50t C3

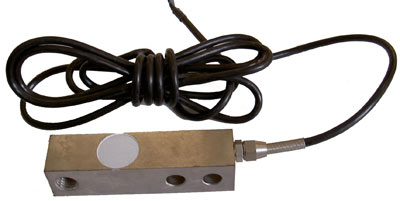

     Shear beam load cell

Features:

shear beam load cell Steel ------- 1T, 2T, 3T, 5T; 2.0mv/v

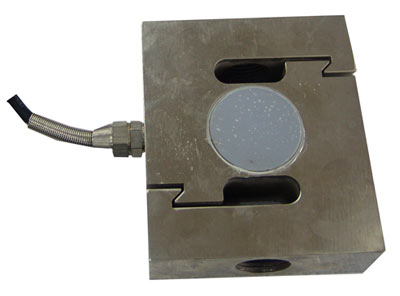

"S" type load cell

Features:

Capacity: 1T, 2T,3T, 5T,10T.

General performance:

Nominal Output: 2.0+/-0.1mV/V Non - Linearity: 0.02% FS Non - Repeatability: 0.02%FS Creep (30 min): 0.02% FS Zero Balance: 0.02% FS Output Temperature Balance: 0.02% FS Zero Output: +_ 0.2mV Input Resistance: 404 +_ 3 Ohms Output Resistance: 350 +_ 3 Ohms Insulation Resistance: >= 5,000,000,000 Ohms Excitation Voltage: 25V (DC/AC) Permit Voltage: (5 - 20 VDC/AC)
