Centrifugal Machine
YLW
SERIES HORIZONTAL SCROLL DECANTER
CENTRIFUGAL MACHINE

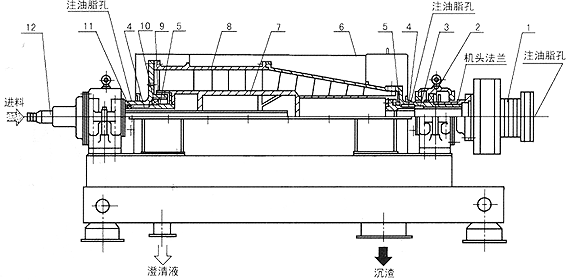

1.differential
2.base bearing
3.oil seal 1
4.light and right copper bearing bush
5.oil seal 2
6.outside shell
7.spiral 8.revolving
drum
9.oil seal
3
10. bearing
11. oil seal 4 12.feed pipe

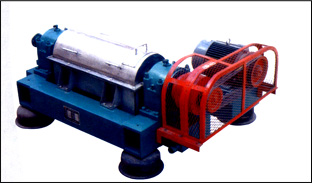

YLW series horizontal
scroll decanter
centrifuges””Once the
suspended liquid enters
the drum, the solids
settle on the drum wall
under the centrifugal
force. The scroll
conveys the solids from
the separation chamber
(cylinder chamber) and
discharges them out of
the drying chamber
(conical chamber). The
clarified liquid flows
out from the hole. The
liquid and solids are
separated continuously.
The machines are
applicable to
dewatering,
concentration and
clarification.
technical
data:
|
Model |
drum diameter (mm) |
rotation rate (r/min) |
drum length (mm) |
ratio |
separation factor |
output capacity(m³/h) |
motor power (kw) |
weight (kg) |
size (mm) |
|
YLW150*150 |
150 |
6770 |
450 |
3 |
3700 |
0.2-1.0 |
5.5-7.5 |
750 |
1600*1100*500 |
|
YLW220*880 |
220 |
5000 |
880 |
4 |
3038 |
0.5-2.0 |
7.5-11 |
900 |
1820*1200*570 |
|
YLW220*660 |
220 |
4500 |
660 |
3 |
2495 |
0.5-1.5 |
11-15 |
850 |
1600*1200*570 |
|
YLW300*900 |
300 |
4000 |
900 |
3 |
2688 |
3.0-5.0 |
11-15 |
1500 |
2100*1400*900 |
|
YLW300*1140 |
300 |
4000 |
1140 |
3.8 |
2688 |
3.0-6.0 |
11-15 |
1700 |
2400*1400*900 |
|
YLW355*887.5 |
355 |
3400 |
887.5 |
2.5 |
2266 |
3.0-7.0 |
15 |
1300 |
2385*1050*1000 |
|
YLW355*1420 |
355 |
3700 |
1420 |
4 |
2722 |
2.0-6.0 |
15-22 |
2000 |
3000*1050*1000 |
|
YLW400*1200 |
400 |
3500 |
1200 |
3 |
2744 |
4.0-10 |
18.5-22 |
2500 |
2400*1800*950 |
|
YLW400*1600 |
400 |
3500 |
1600 |
4 |
2744 |
5.0-15 |
18.5-22 |
2750 |
2800*1800*950 |
|
YLW450*1440 |
450 |
3000 |
1440 |
3.2 |
2268 |
7.0-15 |
22-30 |
3000 |
3100*2100*1200 |
|
YLW500*1600 |
500 |
2800 |
1600 |
3.2 |
2352 |
10-20 |
27-30 |
3200 |
3000*1500*1000 |
|
YLW500*2000 |
500 |
2800 |
2000 |
4 |
2352 |
10-20 |
30-37 |
3600 |
3500*1500*1000 |
|
YLW530*2014 |
530 |
2700 |
2014 |
3.8 |
2671 |
10-30 |
30-45 |
4000 |
2800*2000*1000 |

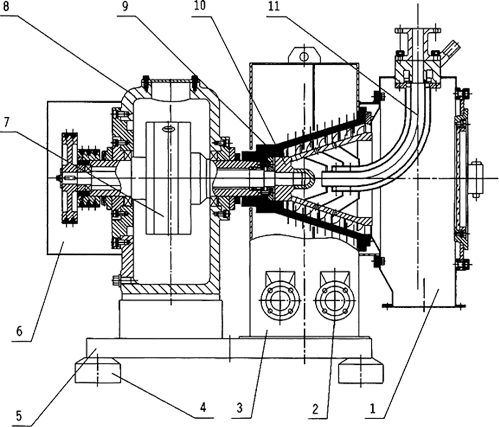

YLWL HORIZONTAL SCROLL CENTRIFUGAL
MACHINE
YLWL
horizontal scroll centrifuge is the one
with low energy consumption, stable
performance and good separating
effectiveness. It is widely applied to
chemical, foodstuffs, salts, mining and
pharmacy industries. The separation
processing from feeding to dewatering,
cleaning and discharging is continuous
with high processing efficiency and
degree of automation. It is the advanced
separation equipment.
Given the working principle and its
structure, this model of centrifuges is
not applied to all materials. So it
needs to test and analyze the materials
before selecting this model.
technical data:
|
model |
feed quantity (m³/h) |
power (kw) |
separation factor |
length (mm) |
width (mm) |
height (mm) |
weight (kg) |
|
YLWL200 |
1.5 |
3.0 |
2200 |
700 |
880 |
570 |
230 |
|
YLWL250 |
3.5 |
5.5 |
2000 |
910 |
1050 |
800 |
560 |
|
YLWL320 |
7.0 |
7.5 |
2000 |
940 |
1165 |
950 |
700 |
|
YLWL350 |
10 |
11 |
2000 |
1150 |
1500 |
970 |
900 |
|
YLWL400 |
15 |
15 |
2000 |
1150 |
1500 |
1150 |
1000 |
|
YLWL450 |
20 |
22 |
1900 |
1150 |
1500 |
1150 |
1100 |
|
YLWL520 |
25 |
30 |
1900 |
1480 |
1920 |
1470 |
1800 |
|
YLWL600 |
35 |
37 |
1800 |
1560 |
2000 |
1470 |
2000 |
|
YLWL700 |
50 |
55 |
1700 |
2150 |
2100 |
1650 |
4000 |
|
YLWL1000 |
100 |
90 |
950 |
2600 |
2700 |
2600 |
8000 |

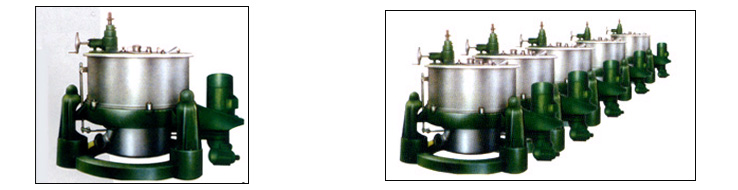

YSXC
SERIES 3-STANDS BOTTOM DUMP
DECANTER CENTRIFUGAL MACHINE
technical data:
|
Model |
drum |
motor power (kw) |
separation coefficient |
weight (kg) |
size (mm) |
|
diameter (mm) |
height |
volume
(kg) |
rotation speed (r/min) |
charge capacity (L) |
|
YSXC800 |
800 |
400 |
140 |
1200 |
100 |
7.5 |
645 |
1800 |
1950*1550*1250 |
|
YSXC1000 |
1000 |
450 |
220 |
1000 |
160 |
7.5 |
560 |
2600 |
2050*1750*1400 |
|
YSXC1000 |
1250 |
500 |
420 |
900 |
280 |
15 |
566 |
4000 |
2550*1980*1600 |

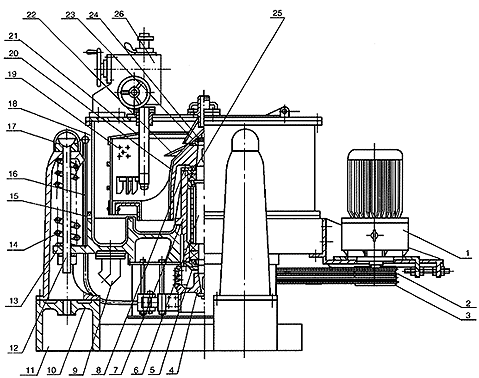

YSG VERTICAL SCRAPER BOTTOM DUMP
CENTRIFUGAL MACHINE
PLC based
control with programmable setup.
Automatic operation with no operator
attention monitors the whole process
including feeding, first cycle
filtration, cleaning, intensive
filtration and discharging
Frequency converter for speed regulation
makes startup smooth. Separation factor
is adjustable.
Dynamic braking without friction will
not produce dusts.
Leak-proof structure with silicone
rubber or fluoroelastomers seals. It is
of anti-explosion with nitrogen
protecting the machine inside.
Reasonable design of structure with
automatic online cleaning system ensures
meeting clean requirements in accordance
with GMP standards.
Programmed electromechanical feeding
control
Safety protection: rotation rate
detection, vibration protection, motor
overload and overheat protection, dual
control with both electrical and
mechanical to scrapers and the lifting
device, interlocking the scraper and
drum .
technical data:
|
|
drum |
|
|
separation coefficient |
machine weight
(kg) |
|
|
diameter
(mm) |
available
height
(mm) |
max
volume
(kg) |
rota£
tional
speed
(r/min) |
max
charge capacity
(L) |
|
SG800
|
800 |
400 |
150 |
1200 |
102 |
1.5 |
6.5/8 |
645 |
2400 |
1950”Į1550”Į1850 |
|
SG1000 |
1000 |
420 |
210 |
1000 |
140 |
2.2 |
9/11 |
560 |
3400 |
2250”Į1750”Į2000
|
|
SG1200
|
1200 |
500 |
370 |
960 |
248 |
3 |
18.5/22 |
619 |
4600 |
2250”Į1980”Į2460
|
|
SG1250
|
1250 |
500 |
420 |
900 |
281 |
3 |
18.5/22 |
565 |
4900 |
2250”Į1980”Į2460 |
|
|
