Crushing Machine

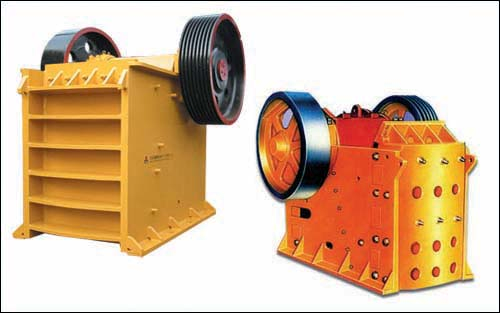

Jaw Crusher
Description:
Use: It is
widely used in mineral, quarry, building
materials, road, railway and water
conservancy and hydroelectric power.
Features:
It has features of simple structure.
large crushing ratio, high capacity,
even particles, convenient maintenance,
low production cost and so on.
YRTPEF
system
technical data:
|
Model |
Feeding Size (mm) |
Adjustable Scope (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions
(L*W*H) (mm) |
Weight (kg) |
|
YRTPEF150×250 |
125 |
10-40 |
1-3 |
5.5 |
896×745×935 |
700 |
|
YRTPEF-250×400 |
210 |
20-80 |
4-14 |
15 |
1430×1310×1340 |
2800 |
|
YRTPEF-400×600 |
350 |
40-160 |
20-120 |
30 |
1700×1732×1653 |
6428 |
|
YRTPEF-500×750 |
425 |
45-180 |
40-160 |
55 |
2035×1921×200 |
10300 |
|
YRTPEF-600×900 |
480 |
72-200 |
56-192 |
75 |
2300×2280×2600 |
17625 |
|
YRTPEF750×1060 |
685 |
230-290 |
100-250 |
90 |
2530×2380×2900 |
29000 |
YRTPEX
system
technical data:
|
Model |
Feeding Size (mm) |
Adjustable Scope (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions
(L*W*H) (mm) |
Weight (kg) |
|
YRTPEX150×250 |
120 |
10-40 |
2-7 |
5.5 |
896×745×935 |
700 |
|
YRTPEX150×750 |
120 |
18-48 |
8-30 |
15 |
1380×1658×1025 |
3500 |
|
YRTPEX250×750 |
210 |
25-60 |
15-40 |
30 |
1545×1667×1330 |
5500 |
|
YRTPEX250×1000 |
210 |
25-60 |
30-95 |
37 |
1550×1964×1380 |
6370 |
|
YRTPEX250×1200 |
210 |
25-60 |
40-100 |
37 |
1900×2192×1430 |
8750 |
|
YRTPEX350×750 |
300 |
15-50 |
16-40 |
30 |
1650×1869×1597 |
6500 |
YZCPEF
system
technical data:
|
Model |
Feeding size (mm) |
Adjustable scope
(mm) |
Capacity(m3/h) |
Speed (r/min) |
Power (kw) |
Weight (kg) |
|
YZCPEF150X750 |
125 |
10-40 |
1-3 |
285 |
7.5 |
700 |
|
YZCPEF200X300 |
165 |
20-70 |
2-8 |
265 |
11 |
800 |
|
YZCPEF250X400 |
210 |
20-80 |
5-20 |
310 |
18.5 |
3000 |
|
YZCPEF400X600 |
340 |
40-90 |
10-40 |
275 |
30 |
7200 |
|
YZCPEF350X750 |
290 |
30-55 |
20-50 |
300 |
37 |
8900 |
|
YZCPEF500X750 |
425 |
50-100 |
34-68 |
275 |
55 |
11320 |
|
YZCPEF600X900 |
480 |
75-200 |
40-120 |
255 |
75 |
17600 |
|
YZCPEF750X1060 |
630 |
80-200 |
80-160 |
250 |
90 |
30530 |
|
YZCPEF900X1200 |
750 |
100-200 |
110-200 |
250 |
110 |
50000 |
|
YZCPEF1000X1200 |
850 |
195-265 |
315-500 |
200 |
110 |
55000 |
|
YZCPEF1200X1500 |
1020 |
150-300 |
400-800 |
180 |
160 |
100000 |
|
YZCPEX150X750 |
125 |
10-40 |
5-15 |
300 |
15 |
3600 |
|
YZCPEX250X750 |
210 |
15-55 |
10-32 |
300 |
30 |
7350 |
|
YZCPEX250X1200 |
210 |
15-60 |
12-38 |
300 |
37 |
8700 |
|
PEX300X1300 |
250 |
20-90 |
16-65 |
300 |
55 |
11600 |
|
Model |
Feeding size(mm)
|
Discharging range
(mm) |
Capacity (t/h) |
Power
(kw) |
Weight
(t) |
Dimension
(mm) |
|
PE 6OOX900-1 |
600x900 |
65-160 |
70-120 |
75 |
15.5 |
2536×1877×2340 |
|
Model |
Feeding size(mm)
|
Discharging range
(mm) |
Capacity (t/h) |
Power
(kw) |
Net
Weight
(t) |
Dimension
(mm) |
|
PE 6OOX900-2 |
600x900 |
65-160 |
90-180 |
55 |
16.8 |
2290×2206×2370 |
|
Model |
Max
Feeding size (mm)
|
Discharging range
(mm) |
Capacity
(m3/h) |
Power
(kw) |
|
PE 6OOX900-3 |
500 |
65-180 |
30-85 |
55-75 |
Impact Crusher
Description:
Use: It is
widely used for crushing hard materials
in the following industries: mineral,
quarry, water conservancy and
hydropower, high way, rail way, chemical
industry, building materials and so on.
Features:
It features of simple structure, zero
key connection and special impact liner.
I t is more efficient than other types,
especially used to crush harder and
causticity material, such as carborundum,
emery, magnesium sand.
YRTPF system
technical data:
|
Model |
Specifications(mm) |
Feeding size Opening (mm)
|
Feeding Size (mm)
|
Capacity
(t/h) |
Power(kw) |
Weight
(kg) |
Height （t） |
|
YRTPF-0807 |
Φ850×700 |
400×730 |
300 |
15-30 |
30-45 |
10000-40000 |
8 |
|
YRTPF-1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
55-75 |
10000-40000 |
13 |
|
YRTPF-1210 |
Φ1250×1050 |
400×1080 |
350 |
70-120 |
110-132 |
20000-60000 |
16 |
|
YRTPF-1214 |
Φ1250×1400 |
400×1430 |
350 |
130-180 |
132-160 |
20000-60000 |
22 |
|
YRTPF-1315 |
Φ1320×1500 |
860×1520 |
500 |
160-250 |
180-260 |
20000-60000 |
25 |
Hammer crusher
Description:
This
series of crusher is applicable for
crushing of brittle minerals, such as
coal, salt, plaster, alum, brick, tile
and limestone with compression strength
no more than 100mpa and humidity no more
than 15%.
YRTPC
system
technical data:
