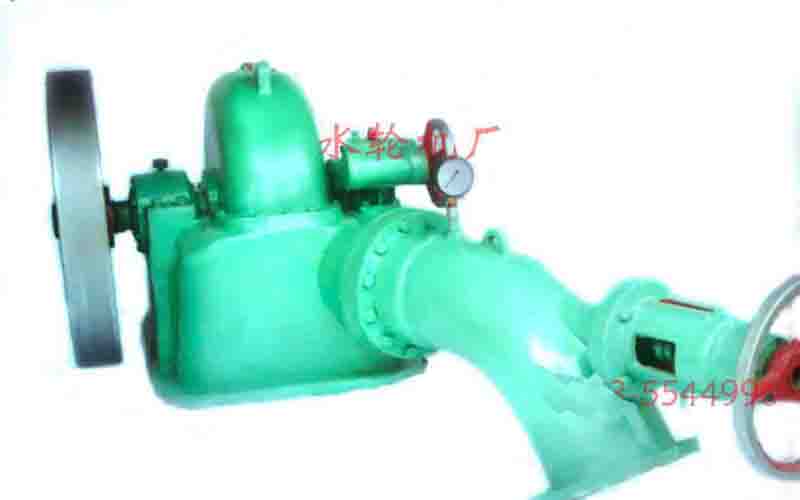

Slope-Flow Hydroelectric
Generator

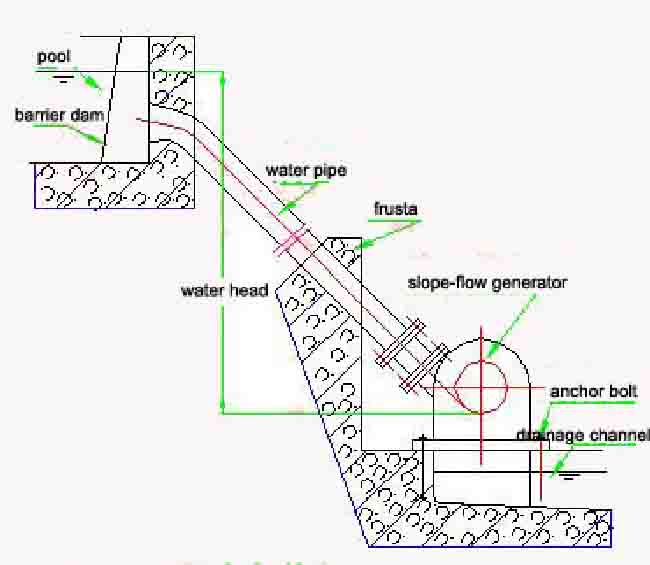

Scheme of installation
Customer can get final and exact
model information of our
products by providing gross
head, low water flow, general
water flow, designed installed
capacity, and elevation.
Technical Data
|
Mini Slope-Flow
Generator Set
Kitting List |
Gross head
(m) |
Machine group model |
Designed water
head (m) |
Designed water
flow (m3/s)
|
Runner diameter (m) |
Output of water
turbine
(kw) |
Generator power (kw)
|
Water pipe diameter
(mm)
|
|
18-28 |
XJ16-1DT4-Z
|
16 |
0.013 |
0.12 |
1.18 |
1 |
125 |
|
20 |
0.01 |
0.12 |
1.18 |
1 |
125 |
|
24 |
0.008 |
0.12 |
1.18 |
1 |
100 |
|
20-28 |
XJ18-1.5DT4-Z
|
18 |
0.017 |
0.12 |
1.76 |
1.5 |
150 |
|
22 |
0.013 |
0.12 |
1.76 |
1.5 |
125 |
|
26 |
0.012 |
0.12 |
1.76 |
1.5 |
125 |
|
23-30 |
XJ21-2DT4-Z
|
21 |
0.019 |
0.12 |
2.35 |
2 |
150 |
|
24 |
0.017 |
0.12 |
2.35 |
2 |
125 |
|
28 |
0.015 |
0.12 |
2.35 |
2 |
125 |
|
24-50 |
XJ22-3DT4-Z
|
22 |
0.027 |
0.15 |
3.49 |
3 |
150 |
|
25 |
0.023 |
0.15 |
3.49 |
3 |
150 |
|
28 |
0.021 |
0.15 |
3.49 |
3 |
150 |
|
32 |
0.018 |
0.15 |
3.49 |
3 |
125 |
|
36 |
0.016 |
0.15 |
3.49 |
3 |
125 |
|
40 |
0.015 |
0.15 |
3.49 |
3 |
125 |
|
44 |
0.013 |
0.15 |
3.49 |
3 |
125 |
|
33-50 |
XJ30-5DT5-Z
|
30 |
0.032 |
0.15 |
5.81 |
5 |
150 |
|
33 |
0.029 |
0.15 |
5.81 |
5 |
150 |
|
36 |
0.027 |
0.15 |
5.81 |
5 |
150 |
|
39 |
0.025 |
0.15 |
5.81 |
5 |
150 |
|
42 |
0.024 |
0.15 |
5.81 |
5 |
150 |
|
45 |
0.022 |
0.15 |
5.81 |
5 |
150 |
|
40-50 |
XJ38-7.5DT4-Z
|
38 |
0.038 |
0.15 |
8.72 |
7.5 |
175 |
|
42 |
0.035 |
0.15 |
8.72 |
7.5 |
175 |
|
46 |
0.033 |
0.15 |
8.72 |
7.5 |
175 |
|
44-70 |
XJ40-10DT4-Z
|
40 |
0.047 |
0.2 |
11.63 |
10 |
200 |
|
44 |
0.042 |
0.2 |
11.63 |
10 |
200 |
|
48 |
0.038 |
0.2 |
11.63 |
10 |
175 |
|
52 |
0.035 |
0.2 |
11.63 |
10 |
175 |
|
56 |
0.033 |
0.2 |
11.63 |
10 |
150 |
|
60 |
0.031 |
0.2 |
11.63 |
10 |
150 |
|
50-75 |
XJ45-12DT4-Z
|
45 |
0.05 |
0.2 |
14 |
12 |
200 |
|
50 |
0.044 |
0.2 |
14 |
12 |
200 |
|
55 |
0.04 |
0.2 |
14 |
12 |
175 |
|
60 |
0.037 |
0.2 |
14 |
12 |
175 |
|
65 |
0.034 |
0.2 |
14 |
12 |
175 |
|
70 |
0.033 |
0.2 |
14 |
12 |
175 |
|
50-75 |
XJ45-15DT4-Z
|
45 |
0.064 |
0.2 |
17.4 |
15 |
200 |
|
50 |
0.057 |
0.2 |
17.4 |
15 |
200 |
|
55 |
0.05 |
0.2 |
17.4 |
15 |
200 |
|
60 |
0.047 |
0.2 |
17.4 |
15 |
200 |
|
65 |
0.044 |
0.2 |
17.4 |
15 |
175 |
|
70 |
0.042 |
0.2 |
17.4 |
15 |
175 |
|
55-75 |
XJ50-20DT4-Z
|
50 |
0.077 |
0.2 |
23.3 |
20 |
250 |
|
55 |
0.067 |
0.2 |
23.3 |
20 |
250 |
|
60 |
0.061 |
0.2 |
23.3 |
20 |
200 |
|
65 |
0.057 |
0.2 |
23.3 |
20 |
200 |
|
70 |
0.055 |
0.2 |
23.3 |
20 |
200 |
