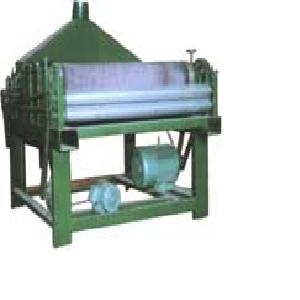

Horizontal Double-Sand Sander
Coating
Series
|
YWSG213 |
Technical parameters
Belt Size: Width 1330 * 1800
Perimeter
Feed speed: 13.4 m / min
Belt speed: 497 m / min
Equipped with power: General
Type: 4kw motor 2 sets,
1.1kw motor 1 set, With
dust-type: 5.5kw motor 2
sets, 1.1kw motor 1
set,1.5kw blower 1 set
Overall dimensions (LXWXH)
mm
Net weight
1200kg |
Single -Sand Bottom Sanding
Machine
|
YWSG113B
|
Technical parameters
Belt states: width 1330 *
Perimeter 2200
Feed speed: 6.7 m / min
Belt speed: 497 m / min
Equipped with power: 7.5kw (or
11kw) 1 set, 1.1kw motor 1 set,
1.5kw blower 1 set,
Used for Blockboard , bottom
sand flat made by multilayer
with the technology of second
forming
Overall dimensions (LXWXH)
mm
Net weight
kg
|
|
