Weighing indicator

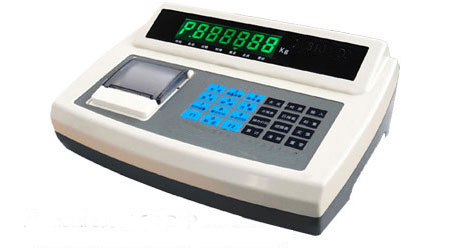

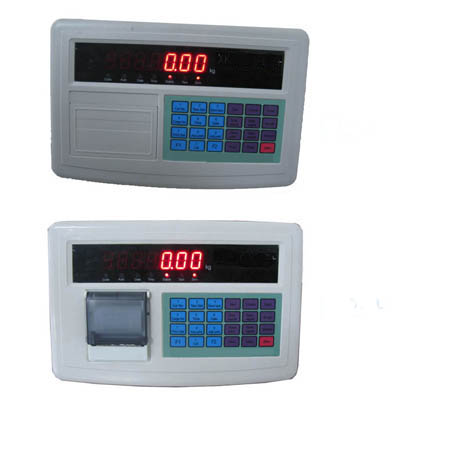

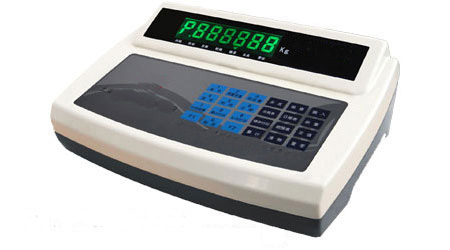

       Digital weighing indicator YYXK3100-D2 series/D2P series (with thermal printer)

Features:

＊ 7 digit 0.8 inch LED/LCD display ＊ A3+ with RS232 to connect external printer A3+P with mini printer(thermal)+RS232 to connect external printer ＊ DC power supply, low power consumption design ＊ RS485 connector, can mostly connect 16pcs digital load cell ＊ can connect with micro-printer, 9pin, 24pin parallel printer, panel print ＊ 1000 car No. and tare weight, 1000 cargo No., 1000 group weighing records ＊ Different format daily report, work report ,total report, can be printed separately ＊ with record printing,1 to 3 page printing, blank- filling printing ＊ I/O isolated from the print port ＊ User can set the Car No, Cargo No. to let the indicator suit for different floor scale, weighing bridge, platform scale etc. ＊ With special protocol to work with YOUSHENG digital load cell.

YYXK3100-P2+ Weighing Indicator

Feature:

* 8keys with weighing, counting, percentage function * up and low limit setting for alarm control Function * 6 digits 0.8inch LED display, 24mm high for simbol * RED LED, battery can be used for 60-80 hours * Display speed can be selectable, 5 speed for select from slowest to fastest, the fastest speed is mainly used for food packing, the slowest speed is mainly used for animal weighing * Standard RS232 for option * Up to 4 load cell connection (4×350Ω) * Application: Platform scale, floor scale, select warning, etc.

YYXK3100-E2+ Weighing Indicator

Feature:

* 8keys with weighing, counting, percentage function * up and low limit setting for alarm control Function * 6 digits 0.8inch LED display, 24mm high for simbol * RED LED, battery can be used for 60-80 hours * Display speed can be selectable, 5 speed for select from slowest to fastest, the fastest speed is mainly used for food packing, the slowest speed is mainly used for animal weighing * Standard RS232 for option * Up to 4 load cell connection (4×350Ω) * Application: Platform scale, floor scale, select warning, etc.

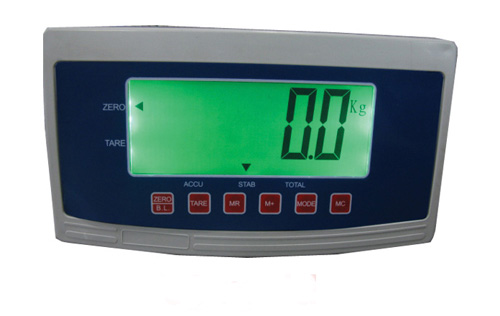

2 inch Weighing Indicator

Specification:

1．Display	-6 digits 2 inch display, 6 status light, 3 Battery status lights, and 1 AC power light.
2．A/D converting theory	24bits （Σ-Δ）ADC
3．Sample rate	50~100 SPS
4．Maximum inner code	16,000,000 counts
5．Division	2000, 2500,3000,4000,5000,6000,7500,12000,15000 counts selectable.
6．Non-linearity-	≤0.01%FS
7．Stimulating voltage for the Load cell	DC 5 voltage.
8．Input signal range	-6mv~21mv
9．Load cell quantity	six 350Ω Load cell or twelve 700Ω Load cell
10．Keyboard	6 keys
11．Communication interface	Standard RS-232, 1200 2400 4800,9600 baud rate selectable
12．Power supply	AC:～220V (＋10％～－15％)、50 Hz 110V/60Hz, DC: Rechargeable battery ( 6V, 4Ah )
13．Power consumption	AC: < 5W DC: Normal<0.7W; Sleep<0.4W
14．Storage-humidity	≤70％ RH
15．Operation -humidity	≤90％ RH
16．Storage-temperature	-10℃～＋50℃
17．Operation-temperature	0℃～＋40℃
18．Fuse	1 A
19．External dimension	310×245×200 (mm)
20．Weight	2.73 kg(Battery included)
