Weighing indicator

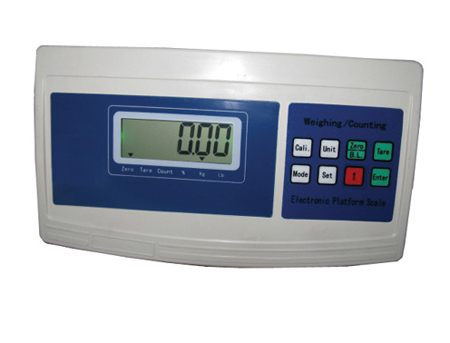

YYXK3100-B2
Weighing Indicator
Function:
|
weighing, counting,
percentage, up and low limit
setting for alarm control
Function |
Application:
|
Platform scale, floor scale,
select warning, etc. |
Feature:
*
8keys with weighing,
counting, percentage
function
* up and low limit setting
for alarm control Function
* 6 digits 0.8inch LCD
display, 24mm high for
symbol
* LCD with backlight,
battery can be used for
100-120 hours option to have
+5V digital I/O output or
replay output alarm control
* Display speed can be
selectable, 5 speed for
select from slowest to
fastest, the fastest speed
is mainly used for food
packing, the slowest speed
is mainly used for animal
weighing
* Standard RS232 for option
* Up to 4 load cell
connection (4¡Á350¦¸)
* Application: Platform
scale, floor scale, select
warning, etc. |

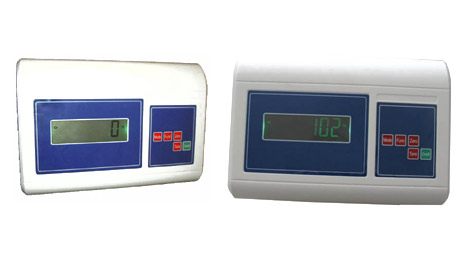

YYXK3100-B1
Series Weighing Indicator
Summary:
| It
is a kind of general
weighing indicator. It
adopted the AD IC of famous
semiconductor factory in
USA. The conversion speed >
50/s. It has internal 60,000
counts of resolution and
many benefits such as easy
to use, high precision, high
stability, high credibility,
zero code adjust and widely
of the input signal, upper
and lower limit setting and
alarm, peak test
(selectable). The indicator
can be made many kinds of
electronic scale connected
with load cells easily such
as platform scale, ground
scale, vehicle scale, oil
scale and animal scale. It
is a perfect indicator which
can be used in
business£¬industry and etc. |
Main Function of
YYXK3100-B1:
1.
With AC/DC power supply, 6V
4Ah no-maintenance battery
and high efficiency
recharging circuit
2. Low power cost, can be
used for 100 hours after
recharging
3. Upper and lower limit
setting, in range alarm or
out range alarm selecting,
with +5V control
signal output (selectable)
4. Peak test (selectable)
5. Auto adjust of zero code
(tare automatically), input
signal range: - 6 mv -----
+21 mv
6. Calibrate with digital
keyboard (locked by hardware
and software)
7. 5 digits LCD display, 24
mm high of symbol, backlight
can be selected
8. Zero auto track
9. Several divisions and
point selecting, calibrate
with any point
10. Low voltage check,
calibration self-check,
overload warning and error
information |

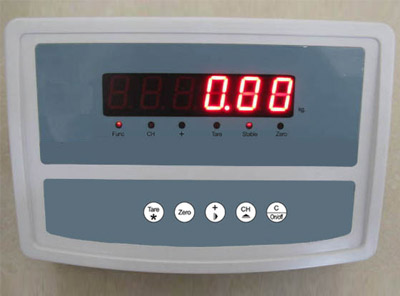

YYXK3100-B3N+
high precision Weighing Indicator
Specification:
-
New mold popular outlook
- 5 key simple operation,
high precision with new AD
and CPU
- 6 digit 0.8 inch RED LED
display
- Low power consumption
design, powered with 4V
rechargeable battery or 4V
AC adaptor
- Quick response, anti-knock
function
- weighing, weight
accumulate function
- Display speed can be
selectable, 5 speed for
select from slowest to
fastest, the fastest speed
is mainly used for food
packing, the slowest speed
is mainly used for animal
weighing
- One or 4 pcs load cell
connection(350¦¸) |

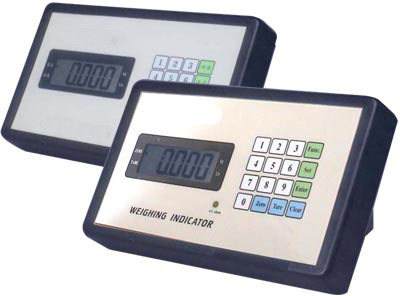

YYXK3100-B2P
high precision Weighing Indicator
Specification:
1.
New mold popular outlook
2. 5 key simple operation,
high precision with new AD
and CPU
3. black LCD with backlight
or green LCD negative
display
4. Low power consumption
design, powered with
rechargeable battery or AC
adaptor
5. Quick response,
anti-knock function
6. Auto zero-tracing range,
auto zero-setting range and
some other technical data
can be set by user.
7. Switch among weighing,
counting, unit transfer.
Function of setting upper
and lower limit alarm under
weighing state. |

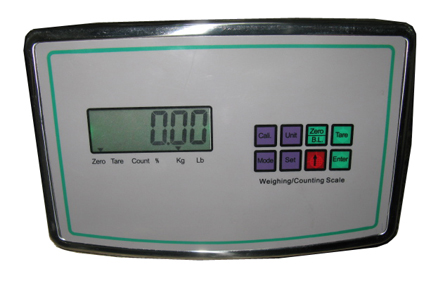

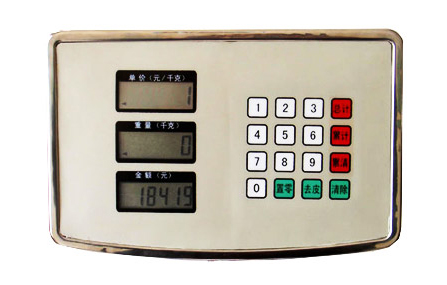

Waterproof
series indicator

Specification:
*waterproof
indicator (price
computing/weighing/counting)
---waterproof design
---Stainless steel cover |
