1

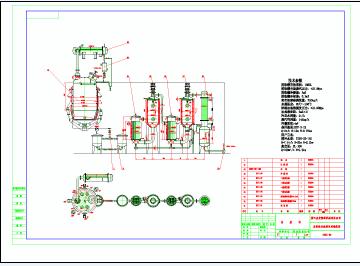

layout of equipment:
extracting tank (shape
of positive cone)
.
condensator.
cooler. water oil
separator, skimmer.
Duplexstrainer , a
and two-effect
heater .a and
two-effect
evaporator .
condensator . tank
of liquid receiver .
cleaning ball
sampling valve .
controlling box .
Connecting tube of the system
adopt the material
of
SUS304.
2
Superficial
treatment ; The
internal surface of
equipment is handled
by acid cleaning
and polishing.
3
Thickness of
material ;
liner of
extracting tank is¦Ä=6mm;
jacket is¦Ä=6mm
insulating course is¦Ä=2mm
evaporator is¦Ä=4mm,heater
is
¦Ä=3mm£¬collecting
tank is¦Ä=3mm.
4
hot- reflux pump;
flow rate
3t/h
pump lift
12m power
0.75kw
5
Wet part is made of
stainless stee£¨SUS304£©.
6
category of vessel ;
¢ñtype
|
l
