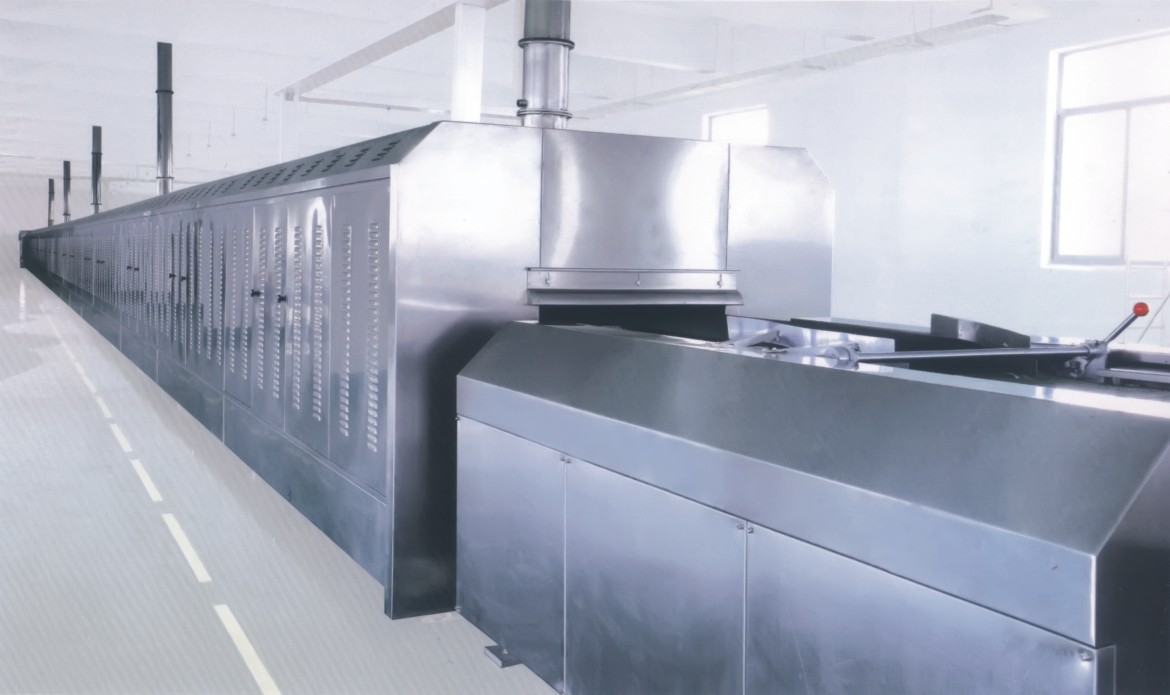

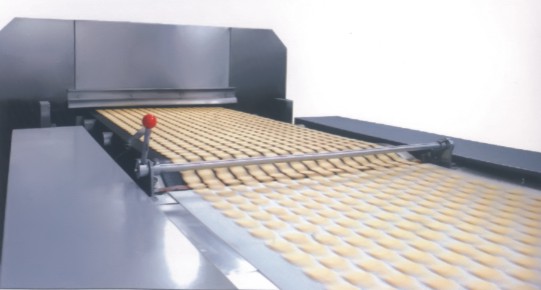

Far Infrared Tunnel Electric Oven

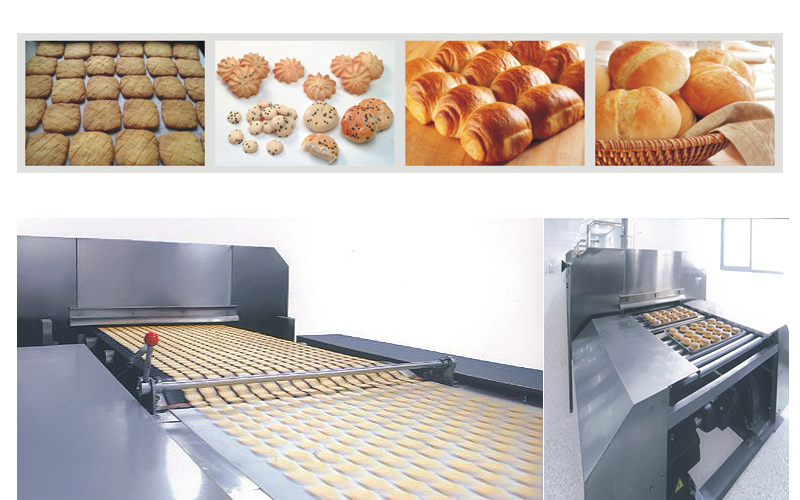

Use: Baking electric oven for biscuit.
Cake, wafer, cake, cookies, bread.
Model: CTNYQYH250/400/600/800/1000/1200
Capacity: 100/250/500/750/1000/1250KG/HR
1.This tunnel oven is composed of oven tunnel, mesh
belt , belt driving system, chimney, electric heating
pipes and control cabinet.
2.The heater temperature infrared heating to make the
biscuit baking Temperature
3.Frequency inverters control cabinet makes more
accurate temperature controlling and wider temperate
regulate range
4.The oven temperature to several individual heating
zones as per different formulas. Each Zone has can be
regulated individually.
5.Set the temperature as per different formulas not
only can save the energy, but also meet the production
demand
|
MODEL |
CTNYQYH
250 |
CTNYQYH
400 |
CTNYQYH
600 |
CTNYQYH
800 |
CTNYQYH
1000 |
CTNYQYH
1200 |
|
CAPACITY(KG/HR) |
100 |
250 |
500 |
750 |
1000 |
1200 |
|
POWER(KW) |
60 |
180 |
280 |
360 |
680 |
800 |
|
OVEN LENGTH(M) |
16 |
28 |
40 |
40 |
60 |
60 |
|
BAKING TEMP(℃) |
190-240 |
190-240 |
190-240 |
190-240 |
190-240 |
190-240 |
|
WEIGHT(KG) |
2000 |
5000 |
12000 |
15000 |
20000 |
23000 |
|
