| Chocolate Holding Tank
Use: Storage tank
for chocolate syrup
Model:30L/100L/500L/1000L/1000-5000L
Capacity: 30L/100L/500L/1000L/1000-5000L
Uses:
This machine is used for storage the chocolate
material from Grinder machine
This equipment is used for store the grinded chocolate
mass in constant temperaturer.It is equiped with
automatic temperaturer control system.
Characteristics:
Keep the temperature at the rated. With mix equipment,
can completely mixer the chocolate and other essence.
Temperature keep the same will keep the flavor of
chocolate. And also has the function of degassing,
deodorization tad he bubble discharge ect.
Parameters:
|
Model / Items |
30L |
100L |
500L |
1000L |
1000-5000L |
|
Maximum capacity(L) |
30 |
100 |
500 |
1000 |
1000-5000 |
|
Main Axle Rotating Speed(rpm) |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
|
Main Motor Power(kw) |
0.37 |
0.75 |
1.1 |
1.5 |
1.5-5 |
|
Electric heating power(kw) |
1 |
2.5 |
5 |
7.5 |
7.5*15 |
|
Weight(kg) |
1 |
2.5 |
2.5 |
2.5 |
2.5-5 |
|
Outside dimension(mm) |
60 |
200 |
515 |
785 |
1010-3000 |

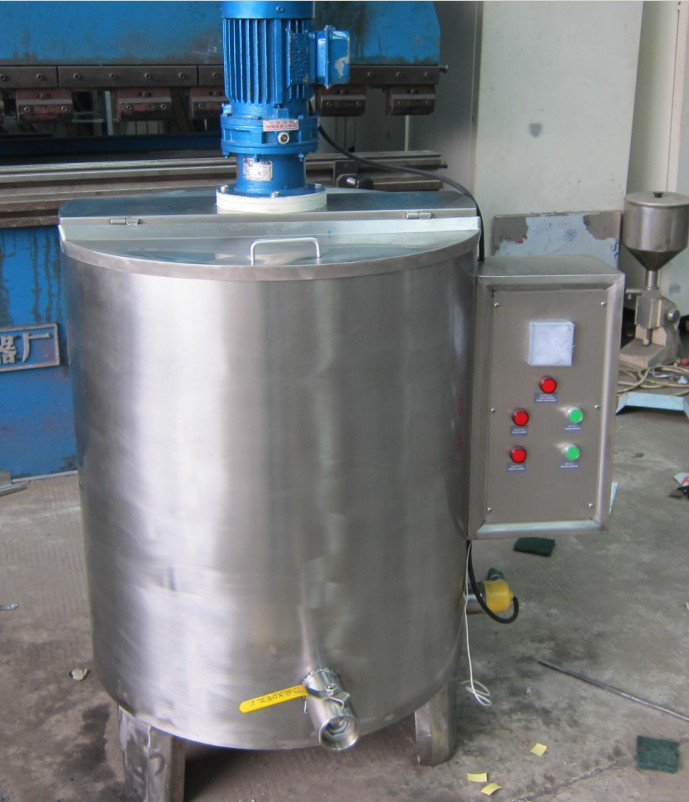

500L CHOCOLATE HOLDING
TANK
This equipment is used for store the grinded chocolate
mass in constant temperaturer.It is equiped with
automatic Temperature control system.
Characteristics:
Keep the temperature at the rated. With mix equipment,
can completely mixer the chocolate and other essence.
Temperature keep the same will keep the flavor of
chocolate. And also has the function of degassing,
deodorization tad he bubble discharge ect.
Parameters:
Parameter:500L
principal axis rotating speed: 22.5r/min
Total capacity:8.6kw
Outside Dimension: ø 1035*1480mm
Total weight: 515kg
|
