Deposited Lollipop Production Line



Use: single color/double color/stripe colors lollipop, layer candy, and central filled lollipop
Model : CTNYQYH150B/300B/450B/600B
Capacity:150/300/450/600 kg/hr

Product Description


Product Description:

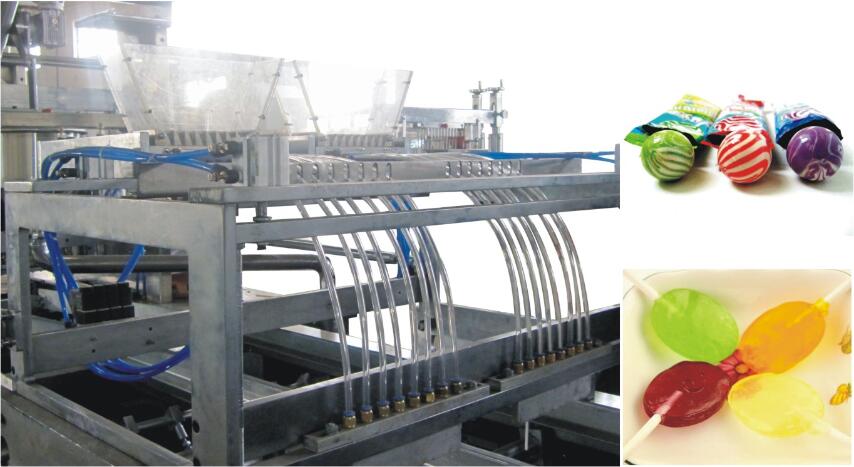

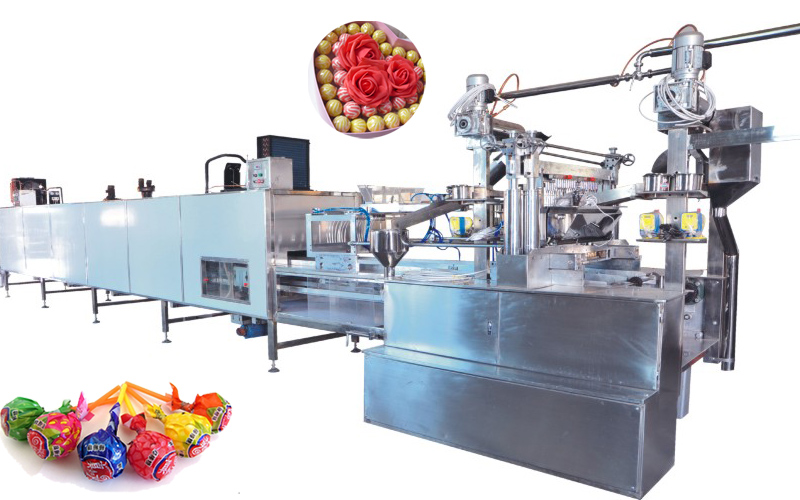

The CTNYQYHB series lollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop.The line is a full-automatic plant equipped with an automatic stick insertion system.
Moreover, just change the moulds ,tt is available to produce both hard candy and lollipop on the same depositing line.



Working process




Parameters


MODEL

CTNYQYH150B

CTNYQYH300B

CTNYQYH450B

CTNYQYH600B

Capacity(kg/hr)

150

300

450

600

Max candy weight

26g

26g

26g

26g

Lollipop Diameter

Flat:18-28mm            Ball:Max 25mm

Depositing speed

55-65n/min

55-65n/min

55-65n/min

55-65n/min

Stick Specification

60-100mm

60-100mm

60-100mm

60-100mm

Compressed air requirement

0.2m³/min,
0.4-0.6Mpa

0.2m³/min,
0.4-0.6Mpa

0.2m³/min,
0.4-0.6Mpa

0.2m³/min
,0.4-0.6Mpa

Working condition

Temp:20-25
Humidity:55%

Temp:20-25
Humidity:55%

Temp:20-25
Humidity:55%

Temp:20-25
Humidity:55%

Total Power

18kw/380V

27kw/380V

34kw/380V

38kw/380V

Total Length

17m

19m

19m

22m

Total Weight

3500kg

4000kg

4500kg

5000kg
