Syrup Cooking Equipment



Syrup Cooking Equipment
Use:cookers for syrup
Model : CTNYQYH300/400/450/600
Capacity:300/400/450/600 KG/HR kg/hr

Product Description


Automatic Weighing and Mixing System
CTNY
QYH600/1200 Syrup preparation system not only offers automatic weighing,dissolving and mixing of raw material with inline transport to one or more production units but also forms a basis for the continuous production.It is an automatic ingredient weighing and mixing system for the slurry pre cooking of confectionery and beverage solution.
The sugar.glucose and other raw materials are automatic weighing and mixing installation.the recipe is programmed and stored in the memory;,the ingredients are weighed correctly to keep on going into the mixing vessel.Once the total ingredients are fed into the vessel,after the mixing,the syrup then will he transferred to the holding tank for other solutions.

Model

CTNYQYH600

CTNYQYHl200

Capacity

500kg

1000kg

Power

 8Kw

12Kw

Steam Requirement

0.3-0.6MPalOOkg/h

0.3-0.6MPa180kg/h

Compressed air requirement

0.4-0.6MPa0.5L/h

0.4-0.6MPa0.7L/h

Dimension

 2500X1300X3500mm

3000X1500X3500mm

Weight

1600kg

2000kg

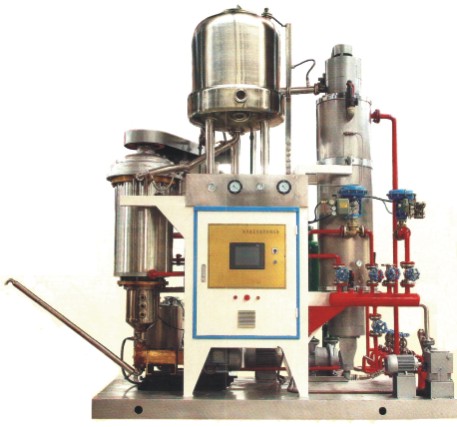

Continuous Vacuum Cooker
The cooker is comprised of an insulated steel steam pressure vessel,One variable speed product dosing pump,a slurry heating coil,a steam extraction chamber and two receiving vessel,all of which are mounted on a common base plate.the special designed continuously vacuum cooker can guaranteethe quality of the condensed syrup with stably running,sanitary and humanization designing,and easy to operate and maintain.



Parameters:
Capacity : 350-400kg/h
Heating area:2.45㎡
Steam Requirement :0.5~0.7MPa;约100kg/h
Temp of the syrup before cooking:110-115℃
Temp of the syrup after cooking :135-145℃
Dimension:1900×1700×2300mm
Power :Dosing pump 0.75kw, Vacuum pump 5.5kw
Weight:800kg



Continuous Vacuum Micro-film Cooker
The micro-fil m cooker is composed of dosing pump,pre-heater cooking chamber,vacuum pump,discharging pump,pressure and temperature in strument,and control cabinet,etc.All these parts are
fixed on the main frame.

Parameters:
Capacity : 300、450、600kg/h
Steam Consumption:150/200/250kg/h
Steam pressure Needed:0.5-0.8MPa
Power:16.2/16.2/18.2kw
Dimension:2400x2000x2400mm
Weight:1200/1300/1400kg



Continuous Cooking,Mixing And Aerating Machine For Soft-milk Candy
This cooking unit is designed special for cooking soft-milk candy mass based on the aboard advanced technology.It can combine traditional manual processes to a compact unit via the automatic mechanical and electrical control.The unit can do the cooking, concentrating.inflation,stirring,and mixing automatically.such can make a good quality air-inflation candies.the chews candy,nougat,soft-milk candy,toffee candy,candy bar can be cooked by this machine.


Parameters:
Capacity300kg/h
Compressed air requirement :<0.25m3; 0.6MPa
Inflating pressure:<0.0.3MPa
Vacuum:-0.04Mpa
Main motor power:11kw
Vacuum pump power:4kw
Steam Requirement :<200kg/h; 0.7Mpa
Temp of the syrup before cooking:120-130℃
Temp of the syrup after cooking:0.75kw
Weight:1500kg
Dimension:2500×1500×3800mm



Toffee Candy Mass Cooker
The cooker is spedal~designed for producing the high-quality toffee candy mass.It uses the steam jacket cooking style.It is also equipped with the rotating speed-adjus ted scrapers to avoid the burning during the cooking.111e toffee candy,caramel candy, eclar ccandv mass can be cooked by this equipment.


Parameters:
Capacity:300kg/h
Batch cooking time:35min
Power :5.5kw
Steam Requirement :300kg/h 0.7Mpa
Weight:1500kg
Dimension:1800×1450×2350mm
Weight of each batch :160kg



Marshmallow Mass Aerator
This cooker is continuously cooking and aerating style equipment.It can be used for marshmallow candy,aerated chocolate,nougat and cake masses cooking.(The density of the cooked candy mass is about 0.5kg/L or less).
Parameters:
Capacity :00-400kg/h
Power :8kw
Dimension:2500×900×1500mm
