Rice color sorter
RA4
RA6
RA8

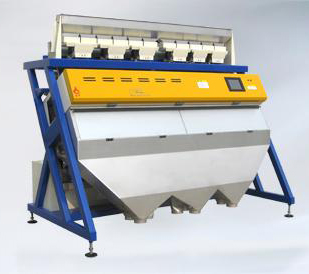

RA Rice Color Sorter
|
Name |
RA4 |
RA6 |
RA8 |
|
Type |
6SXM-160A-CK |
6SXM-240A-CK |
6SXM-320A-CK |
|
Channels |
160 |
240 |
320 |
|
Throughput（t/h） |
<6.0 |
<9.0 |
<12.0 |
|
Sorting accuracy(%) |
>99.98 |
>99.98 |
>99.98 |
|
Optimized carryover (bad
:good) |
>8:1 |
>8:1 |
>8:1 |
|
Channels preset for primary
sorting and re-sorting |
120:40 |
160:80 |
240:80 |
|
Voltage (V) |
~220(50Hz) |
~220(50Hz) |
~220(50Hz) |
|
Power of main machine (kW) |
1.5 |
2.2 |
3.0 |
|
Air Pressure (MPa) |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
|
Air consumption (m3/min) |
<1.8 |
<2.5 |
<3.0 |
|
Weight (kg) |
750 |
850 |
900 |
|
Dimension (L×W×H)（mm） |
1423×1410×2040 |
1920×1410×2040 |
2043×1410×2040 |
RB6
RB8
RB Rice Color Sorter
|
Name |
RB6 |
RB8 |
|
Type |
6SXM-240B-CK |
6SXM-320B-CK |
|
Channels |
240 |
320 |
|
Throughput（t/h） |
<9.0 |
<12.0 |
|
Sorting accuracy(%) |
>99.98 |
>99.98 |
|
Optimized carryover(bad
:good) |
>8:1 |
>8:1 |
|
Channels preset for primary
sorting and re-sorting |
160:80 |
240:80 |
|
Voltage (V) |
~220(50Hz) |
~220(50Hz) |
|
Power of main machine (kW) |
2.2 |
3.0 |
|
Air Pressure (MPa) |
0.6~0.8 |
0.6~0.8 |
|
Air consumption (m3/min) |
<2.5 |
<3.0 |
|
Weight (kg) |
850 |
900 |
|
Dimension (L×W×H)（mm） |
1920×1410×2040 |
2043×1410×2040 |
SS-B_K-CK Intelligentized Rice Color
Sorter
|
Type |
SS-B120K-CK |
SS-B160K-CK |
SS-B200K-CK |
SS-B240K-CK |
|
Channels
|
120
|
160
|
200
|
240
|
|
Output (t/h)
|
3.6～9
|
4.8～12
|
6～15
|
7.2～18
|
|
Sorting accuracy
|
>99.98%
|
>99.98%
|
>99.98%
|
>99.98%
|
|
Optimized carryover (bad
:good)
|
>8:1
|
>8:1
|
>8:1
|
>8:1
|
|
Channels preset for
primary and secondary
sorting
|
80:40
|
120:40
|
140:60
|
180:60
|
|
Voltage (V)
|
～220V 50Hz
|
～220V 50Hz
|
～220V 50Hz
|
～220V 50Hz
|
|
Power of main machine
(kw)
|
0.8
|
0.9
|
1.3
|
1.4
|
|
Power of heater (kw)
|
0.6
|
0.8
|
1.0
|
1.2
|
|
Pressure at air source
(MPa)
|
≥0.6
|
≥0.6
|
≥0.6
|
≥0.6
|
|
Air consumption (L/min)
|
600～1500
|
800～2000
|
1000～2500
|
1200～3000
|
|
Weight (Kg)
|
460
|
500
|
600
|
660
|
|
Dimension (L×W×H)
|
1600×1100×1918
|
1600×1100×1918
|
2200×1100×1918
|
2200×1100×1918
|
SS-B_C-CK CCD Rice Color Sorter
|
Type |
SS-B160C-CK |
SS-B200C-CK |
SS-B240C-CK |
SS-B320C-CK |
|
Channels |
160 |
200 |
240 |
320 |
|
Throughput (t/h) |
4.8~12 |
6~15 |
7.2~18 |
8.0~20 |
|
Sorting accuracy |
>99.98% |
>99.98% |
>99.98% |
>99.98% |
|
Optimized carryover (bad
:good) |
>8:1 |
>8:1 |
>8:1 |
>8:1 |
|
Channels preset for primary
sorting and re-sorting |
120：40 |
140：60 |
160：80 |
192：168 |
|
Voltage (V) |
~220V/ 50Hz |
~220V/ 50Hz |
~220V/ 50Hz |
220V/ 50Hz |
|
Power of main machine (kw) |
0.9 |
1.1 |
1.3 |
1.4 |
|
Power of heater (kW) |
0.8 |
1.0 |
1.2 |
1.0 |
|
Air Pressure (MPa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
|
Air consumption (L/min) |
800~2000 |
1000~2500 |
1200~3000 |
1200~3400 |
|
Weight (Kg) |
900kg |
900kg |
950kg |
950kg |
|
Dimension (L×W×H) |
1892×1180×1936 |
1892×1180×1936 |
2043×1180×1936 |
2043×1252×1936 |
Note:
All the performance data listed
above is taken the 5%-contaminant
yellow bean with output capacity 3
t/h as example, and the actual index
is to be altered subject to the
material and content of the
contaminants.
Photoelectric Rice Color Sorter
|
Type |
CKZ128 |
CKZ160 |
CKZ192 |
CKZ256 |
CKZ320 |
|
Throughput (t/h) |
1.25~3 |
2~4 |
2.25~5 |
2.5~7 |
3~10 |
|
Sorting accuracy |
>99.9% |
>99.9% |
>99.9% |
>99.9% |
>99.9% |
|
Optimized carryover (bad
:good) |
>12:1 |
>10:1 |
>10:1 |
>10:1 |
>12:1 |
|
Voltage (V) |
~220V/ 60Hz |
~220V/ 60Hz |
~220V/ 60Hz |
220V/ 60Hz |
220V/ 60Hz |
|
Power of main machine (kw) |
1.8 |
2.0 |
2.2 |
2.5 |
2.8 |
|
Weight (Kg) |
800 |
850 |
900 |
950 |
1000 |
|
Dimension (L×W×H)(MM) |
1480×1203×1625 |
1480×1203×1625 |
1850×1203×1625 |
1850×1203×1625 |
2100×1203×1625 |
CCD Rice Color Sorter
|
Type |
J4 |
J5 |
J6 |
J8 |
J10 |
|
Throughput (t/h) |
1~3 |
1.5~4 |
2~5 |
2.5~6.5 |
3~10 |
|
Sorting accuracy |
>99.99% |
>99.99% |
>99.99% |
>99.99% |
>99.99% |
|
Optimized carryover (bad
:good) |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
|
Voltage (V) |
220V/ 50Hz~60Hz |
220V/ 50Hz~60Hz |
220V/ 50Hz~60Hz |
220V/ 50Hz~60Hz |
220V/ 50Hz~60Hz |
|
Power of main machine (kw) |
1.8 |
2.0 |
2.2 |
2.5 |
2.8 |
|
Weight (Kg) |
700 |
750 |
800 |
850 |
950 |
|
Dimension (L×W×H)(MM) |
1850×1290×1175 |
1850×1290×1175 |
2100×1290×1175 |
2100×1290×1175 |
2100×1290×1175 |
CCD Rice Color Sorter
|
Type |
CCD160 |
CCD240 |
CCD280 |
|
Channels |
160 |
240 |
280 |
|
Throughput (t/h) |
5~10 |
6.5~12 |
8~15 |
|
Sorting accuracy |
>99.98% |
>99.98% |
>99.98% |
|
Optimized carryover (bad
:good) |
>1:0.125 |
|
Channels preset for primary
sorting and re-sorting |
120：40 |
140：60 |
160：80 |
|
Voltage (V) |
~220V/ 50Hz |
~220V/ 50Hz |
~220V/ 50Hz |
|
Power of main machine (kw) |
0.9 |
0.9 |
1 |
|
Power of heater (kW) |
1 |
1.3 |
1.5 |
|
Work
Air Pressure (MPa) |
0.25±0.02 |
|
Air Pressure (MPa) |
0.6-1.0 |
|
Air consumption (L/min) |
500~3000 |
700~3500 |
1000~4000 |
|
Weight (Kg) |
700kg |
900kg |
1000kg |
|
Dimension (L×W×H) |
1687×2050×2300 |
1100×1200×1200 |
1853×2003×2030 |
Rice Color Sorter
|
Type |
YJT-120H |
YJT-160H |
YJT-200H |
YJT-240H |
|
Channels |
120 |
160 |
200 |
240 |
|
Throughput (t/h) |
3.5~10 |
4.5~12 |
6.4~16 |
8.0~20 |
|
Sorting accuracy |
>99.98% |
>99.98% |
>99.98% |
>99.98% |
|
Optimized carryover (bad
:good) |
>1:0.125 |
|
Voltage (V) |
~220V/ 50Hz |
~220V/ 50Hz |
~220V/ 50Hz |
220V/ 50Hz |
|
Power of main machine (kw) |
0.2-0.4 |
|
Power of heater (kW) |
1.0 |
0.6 |
0.8 |
1.6 |
|
Work
Air Pressure (MPa) |
0.25±0.02 |
|
Air Pressure (MPa) |
0.6-1.0 |
|
Air consumption (L/min) |
500~2500 |
|
Weight (Kg) |
700kg |
600kg |
800kg |
900kg |
|
Dimension (L×W×H) |
1900×1000×1900 |
1433×1000×1900 |
1900×1000×1900 |
1900×1000×1900 |
