Tea color sorter

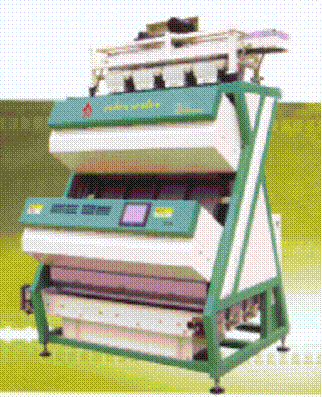

T3/T4 Digital
Intelligent Tea Color Sorter
（Double）
| |
T3 |
T4 |
|
Type |
6CSX-90SE |
6CSX-120SE |
|
Channels
|
90
|
120
|
|
Throughput (kg/h) |
<270 |
<360 |
|
Sorting
accuracy(%) |
99 |
99 |
|
Voltage
(V) |
220(50Hz) |
220(50Hz) |
|
Power of
main machine (KW) |
2.4
|
3.0 |
|
Air
pressure (MPa) |
0.6-0.8 |
0.6-0.8 |
|
Weight
(kg) |
1000 |
1000 |
|
Dimension
(LxWxH) (mm) |
2050x1599x2978 |
2050x1599x2978 |

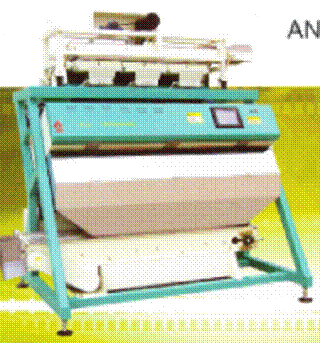

T6/T8 Digital
Intelligent Tea Color Sorter
（Single）
| |
T6 |
T8 |
|
Type |
6CSX-240DB |
6CSX-320DB |
|
Channels
|
240
|
320 |
|
Throughput (kg/h) |
<400 |
<530 |
|
Sorting
accuracy(%) |
99 |
99 |
|
Voltage
(V) |
220(50Hz) |
220(50Hz) |
|
Power of
main machine (KW) |
2.0
|
2.4 |
|
Air
pressure (MPa) |
0.6-0.8 |
0.6-0.8 |
|
Air
consumption (m3/min) |
<2.5 |
<3.0
|
|
Weight
(kg) |
850 |
900 |
|
Dimension
(LxWxH) (mm) |
2121x1410x2254 |
2208x1410x2254 |
Note:
All the performance data listed
above is taken the 5%-contaminant
yellow bean with output capacity 3
t/h as example, and the actual index
is to be altered subject to the
material and content of the
contaminants.
|
Type |
YJT-T8A |
|
Throughput (kg/h) |
≤500 |
|
Voltage
(V) |
220(50Hz) |
|
Power of
main machine (KW) |
3 |
|
Air
pressure (MPa) |
0.6-1.0 |
|
Working
pressure (MPa) |
0.25 |
|
Air
Consumption (L/min) |
≤3000 |
|
Size (mm) |
1687*1404*2650 |
|

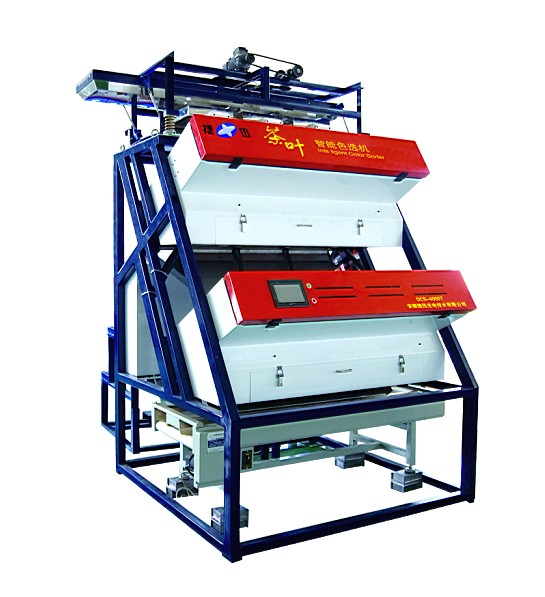

Type |
DCS-4000T |
|
Throughput (kg/h) |
400 |
|
Sorting
accuracy |
99.9 % |
|
No .of
stagers |
2 |
|
Voltage
|
220/380
v/3Ph /50Hz +/- 10% |
|
No .of CCD
Cameras |
8 (2x4) |
|
Power of
main machine (KW) |
3.2 |
|
No. Ejectors |
256
(120X2 ) |
|
Weight (kg) |
1160
|
|
Size（mm） |
1965×1427×2700 |
