Sealer
|
Solid-Ink Coding
Continuous Band
Sealer - TFRM-1010
Series
¡¡ |
|
TFRM-1010 I
TFRM-1010 II
¡¡
¡¡
TFRM-1010 III
TFRMC-1010 III
|
Product Description
The
machines adopt electronic
constant temperature control
system and stepless speed
adjusting transmission
mechanism. It can seal
plastic films of various
materials.
The machine adopt solid-ink
coding device can print the
desired designs
simultaneously with sealing,
the characters clear and
conspicuous. The colors are
selectable and uneasy to
decay and unchangeable,
instant printing and instant
dry, with strong adhesion.
It can print R type two
lines of No.4 characters
(PT18) of three lines of
No.5 characters (PT10.5). If
necessary, counting device
can be fixed to it as well.
TFRM-1010 Series Adopts
novelty designed, advanced
making craft and ideal
mechanism. Model
TFRMC-1010III has air
suction function while
sealing and printing.
TFRM-1010 series has more
models including horizontal
model (TFRM-1010I), vertical
model (TFRM-1010II), console
model (TFRM-1010III), and
console model with aerating
function (TFRMC-1010III).
|
Specifications |
TFRM-1010I
|
TFRM-1010II
|
TFRM-1010III
|
TFRMC-1010III
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Motor Power (W)
|
60
|
|
Suction Pump Power
(W)
|
- |
1200
|
|
Sealing Power (W)
|
300¡Á2
|
|
Printing Heating
Power (w)
|
40¡Á2
|
|
Speed (m/min)
|
0-12 (0-16)
|
|
Sealing Width (mm)
|
8 10
|
|
Temperature Range( ¡æ
)
|
0-300
|
|
Printing Type
|
Solid-Ink Roller
|
|
Distance From
Sealing Center to
the Conveyor (mm)
|
10-40
|
200-320
|
10-40
|
|
Conveyor Size (L¡ÁW)
(mm)
|
950 ¡Á 180
|
|
Max. Conveyor
Loading for Single
Bag (kg)
|
¡Ü 1
|
|
Overall Conveyor
Loading (kg)
|
¡Ü 3
|
|
Dimension (L ¡Á W ¡Á
H) (mm)
|
950¡Á460¡Á430
|
950¡Á460¡Á640
|
1065¡Á550¡Á900
|
|
Net Weight (kg)
|
54
|
60
|
54
|
74
|
|
|
|

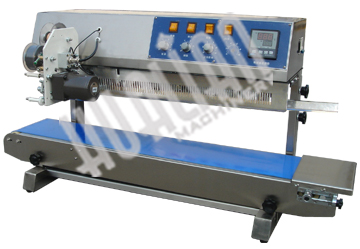

Color Ribbon Printing Continuous
Band Sealer - TFRS-1010 Series
¡¡ |
|
TFRS-1010 I
TFRS-1010 II
¡¡
TFRS-1010
III
TFRSC-1010III
|
Product Description
The
machines adopt electronic
constant temperature control
system and stepless speed
adjusting transmission
mechanism. It can seal plastic
films of various materials.
The machine adopt Color Ribbon
printing device can print the
desired designs simultaneously
with sealing, the characters
clear and conspicuous. The
colors are selectable and uneasy
to decay and unchangeable,
instant printing and instant
dry, with strong adhesion. If
necessary, counting device can
be fixed to it as well.
TFRS-1010 Series Adopts novelty
designed, advanced making craft
and ideal mechanism. Model
TFRSC-1010III has air suction
function while sealing and
printing.
TFRS-1010 series has more models
including horizontal model
(TFRS-1010I), vertical model
(TFRS-1010II), console model
(TFRS-1010III), and console
model with aerating function
(TFRSC-1010III).
|
Specifications |
TFRS-1010I
|
TFRS-1010II
|
TFRS-1010III
|
TFRSC-1010III
|
|
Voltage (V/Hz)
|
AC
220/50 110/60
|
|
Motor Power (W)
|
60
|
|
Suction Pump Power (W)
|
- |
1200 |
|
Sealing Power (W)
|
300¡Á2
|
|
Printing Heating Power
(w) |
50¡Á2 |
|
Speed (m/min)
|
0-12 (0-16)
|
|
Sealing Width (mm)
|
8
10 |
|
Temperature Range( ¡æ )
|
0-300
|
|
Printing Type
|
Color Ribbon
|
|
Distance From sealing
Center to the Conveyor
(mm) |
10-40
|
200-320
|
10-40
|
|
Conveyor Size (L ¡Á W)
(mm) |
1065 ¡Á 180
|
|
Max. Conveyor Loading
for single bag (kg)
|
¡Ü 1
|
|
Overall Conveyor Loading
(kg) |
¡Ü 3
|
|
Dimension (L ¡Á W ¡Á H)
(mm) |
1065¡Á460¡Á500
|
1065¡Á540¡Á640
|
1065¡Á540¡Á1325
|
|
Net
Weight (kg)
|
58
|
64
|
67
|
76
|
|
|
Solid-Ink Coding Continuous Band
Sealer - TFRM-1120 Series
¡¡ |
|
TFRM-1120W
TFRM-1120K |
|
Product Description
The
machines adopt electronic
constant temperature control
system and stepless speed
adjusting transmission
mechanism; the height of
conveyor also can be
adjusted. It can seal
plastic films of various
materials.
The machine adopt solid-ink
coding device or color
ribbon printing device can
print the desired designs
simultaneously with sealing,
the characters clear and
conspicuous. The colors are
selectable and uneasy to
decay and unchangeable,
instant printing and instant
dry, with strong adhesion.
If necessary, counting
device can be fixed to it as
well.
|
Specifications |
TFRM-1120W
|
TFRM-1120K
|
|
Voltage (V/Hz)
|
AC
220/50 110/60
|
|
Motor Power (W)
|
100
|
|
Sealing Power (W)
|
300¡Á2
|
|
Printing Heating Power
(w) |
40¡Á2 |
40¡Á2 |
|
Speed (m/min)
|
0-10 |
|
Sealing Width (mm)
|
8
10 |
|
Temperature Range( ¡æ )
|
0-300
|
|
Printing Type
|
Solid-Ink Roller |
|
Distance From Sealing
Center to the Conveyor
(mm) |
20-80
|
|
Height From Head to
Floor (mm)
|
---- |
|
Conveyor Size (L¡ÁW) (mm)
|
1100¡Á205 |
1400¡Á250 |
|
Max. Conveyor Loading
for Single Bag (kg)
|
2.5
|
|
Overall Conveyor Loading
(kg) |
7.5
|
|
Dimension (L¡ÁW¡ÁH) (mm)
|
1100¡Á610¡Á1030
|
1450¡Á620¡Á1030 |
|
Net
Weight (kg)
|
85
|
95 |
|
|
Solid-Ink Coding Continuous Band
Sealer - TFRM-1120L Series
¡¡ |
|
TFRM-1120L
TFR-1120AL/S
¡¡
¡¡
TFRM-1120LD
TFR-1120LD/S |
Product Description
The
machines adopt electronic
constant temperature control
system and stepless speed
adjusting transmission
mechanism; the height of
conveyor also can be adjusted.
It can seal plastic films of
various materials. The machine
adopt solid-ink coding device or
color ribbon printing device can
print the desired designs
simultaneously with sealing, the
characters clear and
conspicuous. The colors are
selectable and uneasy to decay
and unchangeable, instant
printing and instant dry, with
strong adhesion. If necessary,
counting device can be fixed to
it as well.
The height of model
TFRM-1120LD¡¯s head and conveyor
both can be adjusted, so as to
making widely using, it also
match to operate with production
line.
|
Specifications |
TFRM-1120L |
TFR-1120AL/S |
TFRM-1120LD |
TFR-1120LD/S |
|
Voltage (V/Hz)
|
AC
220/50 110/60 |
|
Motor Power (W)
|
230 |
230 |
|
Sealing Power (W)
|
300¡Á2
|
300¡Á4 |
300¡Á2 |
300¡Á4 |
|
Printing Heating Power
(W) |
40¡Á2 |
|
Speed (m/min)
|
0-10 |
|
Sealing Width (mm)
|
8
10 |
|
Temperature Range( ¡æ )
|
0-300 |
|
Printing Type
|
Solid ink roller |
|
Distance From Sealing
Center to the Conveyor
(mm) |
100-500 |
100-700 |
|
Height from Head to
Floor (mm)
|
700-1100 |
|
Conveyor Size (L¡ÁW) (mm)
|
1400¡Á250 |
|
Max. Conveyor Loading
for Single Bag (kg)
|
5 |
|
Overall Conveyor Loading
(kg) |
15 |
|
Dimension (L¡ÁW¡ÁH) (mm)
|
1450¡Á680¡Á1480 |
1450¡Á680¡Á1480 |
|
Net Weight(kg)
|
100 |
108 |
108 |
|
|
Color Ribbon Printing Continuous
Band Sealer - TFRS-1120W
¡¡ |
|
TFRS-1120W |
Product Description
The
machines adopt electronic
constant temperature control
system and stepless speed
adjusting transmission
mechanism. It can seal plastic
films of various materials.
The machine
adopt Color Ribbon printing
device can print the desired
designs simultaneously with
sealing, the characters clear
and conspicuous. The colors are
selectable and uneasy to decay
and unchangeable, instant
printing and instant dry, with
strong adhesion. If necessary,
counting device can be fixed to
it as well.
|
Specifications |
TFRS-1120W |
|
Voltage (V/Hz)
|
AC
220/50 110/60 |
|
Motor Power (W)
|
100 |
|
Sealing Power ((W)
|
300¡Á2 |
|
Printing Heating Power
((W) |
50¡Á2 |
|
Speed (m/min)
|
0-10 |
|
Sealing Width (mm)
|
8
10 |
|
Temperature Range( ¡æ )
|
0-300 |
|
Printing Type
|
Color ribbon |
|
Distance From Sealing
Center to the Conveyor
(mm) |
20-80 |
|
Conveyor Size (L¡ÁW) (mm)
|
1100¡Á205 |
|
Max. Conveyor Loading
For Single Bag (kg)
|
2.5 |
|
Overall Conveyor Loading
(kg) |
7.5 |
|
Dimension (L¡ÁW¡ÁH) (mm)
|
1100¡Á610¡Á1030 |
|
Net
Weight (kg)
|
85 |
|
|
Heavy-Duty Continuous Band
Sealer - TFR-1120AL Series
¡¡ |
|
TFR-1120AL/SL
TFR-1120AL/ST
TFRM-1120AL/SM |
Product Description
The machine
is specially designed for
thicker bags, which is suitable
for sealing weight of under
5kgs, 10kgs & 20kgs
respectively.
TFR-1120AL/ST match to operate
with production line.
|
Specifications |
TFR-1120AL/SM |
TFR-1120AL/SL
|
TFR-1120AL/ST
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Motor Power (W)
|
370
|
750
|
100
|
|
Sealing Power (W)
|
300 ¡Á 4
|
|
Speed (m/min)
|
8
|
0-10
|
|
Sealing Width (mm)
|
8 10
|
|
Temperature Range( ¡æ
)
|
0-300
|
|
Distance From
Sealing Center to
the Conveyor (mm)
|
330-530
|
450-900
|
--
|
|
Height From Sealing
center to floor (mm)
|
1300
|
|
Conveyor Size (L¡ÁW)
(mm)
|
1900¡Á300
|
2400¡Á350
|
--
|
|
Max. Conveyor
Loading for Single
Bag (kg)
|
¡Ü10
|
¡Ü20
|
--
|
|
Overall Conveyor
Loading (kg)
|
¡Ü30
|
¡Ü60
|
--
|
|
Dimension (L¡ÁW¡ÁH)(mm)
|
1950¡Á550¡Á 1100 |
2430¡Á740¡Á1450
|
1125¡Á620¡Á1680
|
|
Net Weight (kg)
|
150
|
250
|
80
|
|
|
