Sealer
|
¡¡ |
|
Automatic Heat
Sealer of Heavy-Duty
Bag - TFBH Series
¡¡ |
|
TFBH-32+1P
TFBH-32+1P+C5
|
|
Product Description
The
machine can continuously
seal thick PE or PP plastic
bags, laminated bags of
paper/PE file and laminated
bags of AL/PE film with high
performance and speed, it¡¯s
widely used in the fields of
chemical material, medical
material, rice foodstuff &
feeds.
According to different
materials and different
thickness of bags, we have
divided this series into
relevant suitable model,
including TFBH-22,
TFBH-32+1P, TFBH-33.
The machines adopt Poly
Tetra Fluoric Ethylene
(Teflon) sealing belt, which
could make the bags quickly
cool down after heating,
seeing surface smooth and
plain, so as to guarantee
its sealing quality.
The
optional devices include
trimmer for bag edge,
deduster and exhausting
device etc.
|
Specifications |
TFBH-22
|
TFBH-32+1P
|
TFBH-43+1P
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Motor Power (W)
|
0.4
|
|
Speed (m/min)
|
Stepless speed
adjusting 7-12
|
|
Film Material
|
PE PP Compound
film
|
|
Film Thickness
|
¡Ü 0.4 |
¡Ü 0.5 |
|
Sealing Width (mm)
|
8 10
|
|
Temperature Range( ¡æ
)
|
0-400 |
|
Height From Sealing
Center to Floor (mm)
|
950-1450 |
|
Heating Capacity (W)
|
500¡Á4
|
500¡Á6
|
|
Cooling Type
|
Air cooling
|
|
Dimension (L¡ÁW¡ÁH)
(mm)
|
2100¡Á750¡Á1700
|
2550¡Á750¡Á1900
|
|
Net Weight (kg)
|
145
|
180 |
|
|
Electromagnetic Induction
Capper - TDGYF Series
¡¡ |
|
TDGYF-S500A
TDGYF-S500B
¡¡
TDGYF-S500C
TDGYF-S500D
|
Product Description

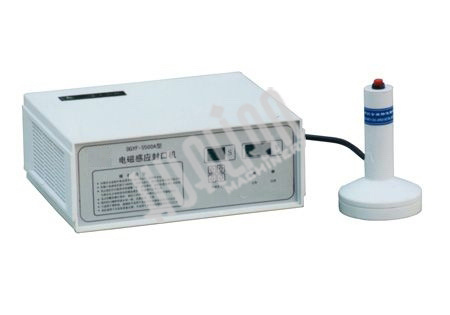

TDGYF-S500A is mainly
applicable of capping
operation of non-metal
bottleneck (i.e. plastics,
glass) which features of
flat threaded cap, but not
applicable of capping
operation of metal &
non-threaded pressing cap,
cap with ¦Õ20-100 diameter
and active handle, high cap
with over 3 mm spacing
between cap surface &
bottleneck after screwed in,
Especially, it is suitable
for the customers who
carrying out continuous
capping operation for large
output and lot.
TDGYF-S500B is major
suitable for capping
operation of high threaded
cap (e.g. mineral water
bottle cap with suction
nozzle) that is made of
non-metal materials such as
plastic, glass, but it is
not suitable for metal &
non-threaded bottleneck, or
bottleneck whose caliber is
ranging ¦Õ15-35. Especially,
it is suitable for the
customers who carrying out
noncontinuous capping
operation for small output
and lot.
TDGYF-S500C is mainly
applicable of capping
operation of big nonmetal
bottleneck (i.e. plastics,
glass) of flat threaded cap
or high active-handled cap,
but not applicable of
capping operation of metal &
non-threaded cap, cap with
¦Õ60-130 diameter,
especially, it is suitable
for the customers who
carrying out noncontinuous
capping operation for small
output and lot.

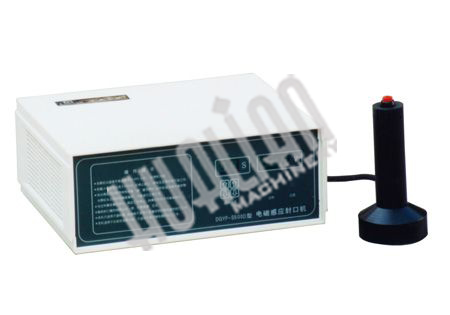

TDGYF-S500D is mainly
suitable for capping
operation of nonmetal
bottleneck (e.g. plastic,
glass etc.) with handle
(such as engine oil bottle
etc.). But not suitable for
capping operation of metal &
non-threaded cap or high
seamful bottleneck, or cap
with the diameter < ¦Õ20mm &
> ¦Õ60mm. it is specially
suitable for customers who
carrying out noncontinuous
capping operation for small
output & lot.
|
Specifications |
TDGYF-S500A
|
TDGYF-S500B |
TDGYF-S500C |
TDGYF-S500D |
|
Voltage (V/Hz) |
AC 220/50 110/60
|
|
Power( W) |
500W |
600W |
500W
|
|
Seal diameter ( mm)
|
¦Õ20-¦Õ100
|
¦Õ15-¦Õ35
|
¦Õ60-¦Õ130
|
¦Õ20-¦Õ60
|
|
Dimension (L¡ÁW¡ÁH)
(mm) |
340¡Á290¡Á150(mm)
|
|
Weight (kg)
|
5kg
|
|
|
Continuous Induction Sealing
Machine - THL-2000 Series
¡¡ |
|
THL-2000A |
Product Description
It¡¯s
applicable to seal container
in any type of plastic
material, with function of
self-examination; machine
could be protected against
over-currency, over-voltage
and over-heat. The power is
adjustable, high sealing
speed, it also can match to
operate with production
line.
Material appliances: PE,
PET, PP, PVC, ABS, glass
bottle etc. (Metal and metal
lid are unsuitable.)
The optional devices include
bottle neatening machine and
bottle rejecting machine.
|
Specifications |
THL -2000A
|
THL-2000B
|
THL -2000C
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Power (W)
|
2000 (Adjustable)
|
|
Sealing Diameter
(mm)
|
¦Õ 16-50
|
¦Õ 50-80
|
¦Õ 70-120
|
|
Sealing Speed
(m/min)
|
2.4-12( ¦Õ30mm PE
container,
120pcs/min)
|
|
Container Height
(mm)
|
30-260 (customize
available)
|
|
Inductor Size (mm)
|
850¡Á120¡Á90
|
950¡Á180¡Á130 |
|
Dimension (L¡ÁW¡ÁH)
(mm)
|
Main body:
600¡Á450¡Á1200
conveyor:1800¡Á500¡Á1300
|
|
Net Weight (kg)
|
Main body:90
conveyor:80
|
Main body: 90
conveyor :90
|
|
|
Blister Sealing Machine - TXBF
Series
¡¡ |
|
TXBF-500 |
Product Description
The
machine has been widely used
for the package of hardware,
toys, date used articles and
electrical elements. The
commodity packed is featured
as transparent, damp proof,
dustproof, secure and
pleasing to eye.
|
Specifications |
TXBF-500
|
TXBF-700
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Sealing Power (W)
|
1500
|
1800
|
|
Pressure Board Area
(mm)
|
500¡Á300
|
700¡Á450
|
|
Turntable Area
|
¦Õ1000
|
¦Õ1250
|
|
Package Height (mm)
|
150
|
|
Max. Conveyor
Loading (kg)
|
110
|
130
|
|
Dimension (L¡ÁW¡ÁH)
(mm)
|
1000¡Á510¡Á1410
|
1220¡Á1400¡Á1520
|
|
Net Weight (kg)
|
70
|
72
|
|
|
Pneumatic Sealer - TQF-600L
¡¡ |
|
TQF-600L |
Product Description
The
machine is suitable for
sealing various plastic film
bags and Al-plastic compound
bag with max sealing length
of 600mm and max carrying
load of 50kg . It adopts
compressed air as motive
power with adjustable
sealing pressure and
reliable sealing quality,
and its sealing operation
can be controlled by manual
or by foot stamping. For
thicker bags, TQF-600L /S
double heating sealer is
adopted. According to
special order, its sealing
length can be lengthened to
700mm , 800mm , 1000mm . It
also can match to operate
with production line.
|
Specifications |
TQF-600L |
TQF-600L/S |
|
Voltage (V/Hz)
|
AC 220/50 110/60 |
|
Sealing Power (W)
|
250 |
500 |
|
Air compressor
|
Equipped by user
|
|
Sealing Length (mm)
|
600/700/800/1000 |
|
Sealing width (mm)
|
8-10 |
|
Distance from
sealing center to
floor (mm)
|
1120 |
|
Film thickness (mm)
|
¡Ü0.10 |
¡Ü0.18 |
|
Height of packing
bag (mm)
|
450-750 |
|
Max. Sealing Loading
(kg)
|
50 |
|
Pressing Head¡¯s
Adjustable Angle
|
20 |
|
Dimension (L ¡Á W ¡Á
H) (mm)
|
720¡Á560¡Á1340 |
|
Net Weight (kg)
|
80 |
84 |
|
|
Hand Impulse Sealer- TFS
Series
¡¡ |
|
.jpg)
TFS-200/FS300
TFS-200(ABS)
TFS-200B |
Product Description
TFS
series hand impulse sealer
is the most convenient and
economical sealing
equipments for shops,
families and factories to
use, are suitable for
sealing all kinds of
poly-ethylene and /of
polypropylene film
recombined materials and
aluminum-plastic film as
well, and can be widely used
in the industries of food
native products, sweets,
tea, medicine, hardware
etc, Type B can print words
along with sealing.
|
Specifications |
TFS-100 |
TFS-200 |
TFS-300 |
TFS-400 |
TFS-500 |
|
Voltage (V/Hz) |
AC 200/50 110/60
|
|
Impulse power (W) |
180
|
260 |
430
|
600
|
800
|
|
Sealing Length (mm) |
100
|
200
|
300
|
400
|
500 |
|
Sealing width (mm) |
2
|
2
|
3 |
3
|
3 |
|
Max. Seal Thickness
(mm) |
0.2
|
0.2
|
0.3
|
0.3
|
0.3 |
|
Heat Time (s) |
0.2-1.3
|
|
Dimension
(L¡ÁW¡ÁH)(mm) |
230¡Á72¡Á170 |
325¡Á80¡Á225 |
450¡Á85¡Á255 |
540¡Á85¡Á280 |
550¡Á85¡Á280 |
|
Net Weight (kg) |
1.4
|
2.1
|
3.7
|
4.4
|
7.5
|
|
Specifications |
TFS-200(ABS)
|
TFS-300(ABS)
|
TFS-200B
|
TFS-300B
|
|
Voltage (V/Hz) |
AC 200/50 110/60
|
|
Impulse power (W) |
260 |
300 |
500 |
650 |
|
Sealing Length (mm) |
200 |
300 |
200 |
300 |
|
Sealing width (mm) |
2 |
2 |
8 |
8 |
|
Max. Seal Thickness
(mm) |
0.2 |
0.3 |
0.2 |
0.3 |
|
Heat Time (s) |
0.2-1.3
|
|
Dimension
(L¡ÁW¡ÁH) (mm) |
325¡Á75¡Á225
|
440¡Á83¡Á255
|
325¡Á75¡Á225
|
440¡Á83¡Á255
|
|
Net Weight (kg) |
1.4 |
1.8 |
2.8 |
3.7 |
|
|
|
