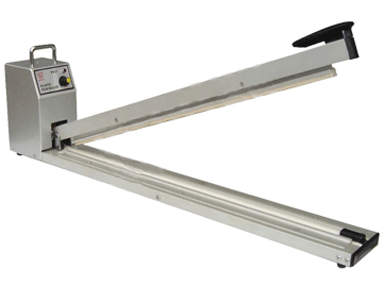

Sealer
FS
Extended Hand
pressure sealing
machine
¡¡ |
![](image/cp1_004.gif)
|
Product Description
This series sealer is
simple, the heating time
adjustable power supply can
be connected to work,
suitable for all kinds of
plastic film, composite
film, and aluminum sealing
film. Can be widely used in
food, souvenirs, candy, tea,
medicine, hardware and other
industries. Shops, families,
factories, the most
economical sealing
equipment. Use, easy to use.
Consumption and low points.
Specifications |
FS-500H |
FS-600H |
FS-700H |
Voltage (V/Hz) |
220V/50HZ 110V/6HZ |
Sealing
Power (W) |
650 |
780 |
910 |
Sealing Length (mm) |
500 |
600 |
700 |
Maximum sealing
thickness (mm) |
0.01-0.4 |
Sealing width (mm) |
2.8 |
Adjustable time
heating (s) |
0.2-3 |
Dimension (L¡ÁW¡ÁH)
(cm) |
77¡Á14.5¡Á27 |
87¡Á14.5¡Á27 |
97¡Á14.5¡Á27 |
Net Weight (kg) |
5 |
5.5 |
6 |
|
|

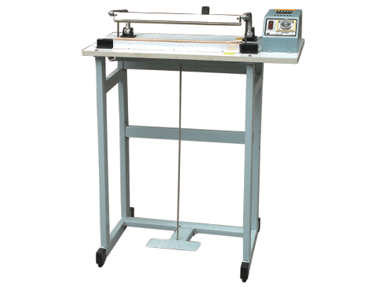

SF-600
OVERPASS SIMPLE PEDAL SEALING
MACHINE
¡¡
|
![](image/cp1_005(2).gif)
|
Product Description
The
kind series sealing machines are
easy to operate, heating time
can be adjusted, once you
connect to the electrical power,
it begins to work. They are
apply to the sealing of PVC
film.
MODEL |
SF-400 |
SF-500 |
SF-600 |
Power (W) |
500 |
600 |
700 |
Sealing Length (mm) |
400 |
500 |
600 |
Sealing Width (mm) |
2 |
Net
Weight (kg) |
9.5 |
10.8 |
12 |
|

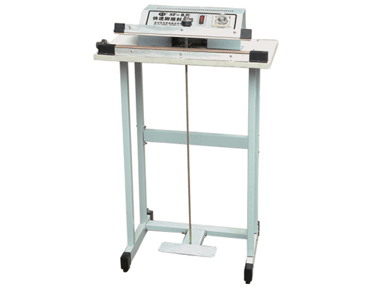

SF300-1000SIMPLE PEDAL SEALING
MACHINE
¡¡ |
![](image/cp1_006.gif)
|
Product Description
This series
of sealing machine is easy to
operate; the heating time
adjustable. It woks once the
power is connected. It is
applicable to all kinds of
plastic, composite and aluminum
film sealing. It is widely used
in food, special food, sweat,
tea, pharmacy, hardware
industries etc. It is the most
economical sealing equipment for
the shop, family and factory.
Easy to handle and low power
compsumption.
MODEL |
SF-300 |
SF-500 |
SF-700 |
SF-900 |
SF-1000 |
Voltage (V/Hz)
|
AC220V/50Hz |
Power (W)
|
200 |
350 |
600 |
650 |
700 |
Sealing Length (mm)
|
300 |
500 |
700 |
900 |
1000 |
Sealing
Thickness
(mm)
|
2¡Á0.10mm |
Sealing Width (mm)
|
2 |
Weight (kg)
|
7 |
8.6 |
12.5 |
13.5 |
14.6 |
|

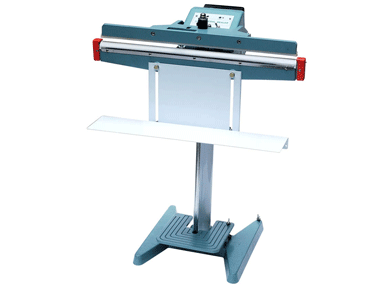

SF-350/450/650/800
Aluminum frame pedal sealing
machine
¡¡ |
![](image/cp1_007.gif)
|
Product Description
The
series of sealing machines
have all function and
characters of pedal sealing
machine. It can stick
polyethylene, polypropylene
and multilayer composite
plastic. It equipped with
super large power
transformer, height
adjustable sealing shelf.
Quick sealing, high
efficiency and has
irreplacable function of
normal sealing machines. It
is easy to operate, heating
time can be adjusted. It
begins to work once
connecting to the electrical
power,. They are apply to
the sealing of all kinds of
plastic film. The sealing is
firm and neat. Long service
life, steady working
performance and wide usage.
It is one of the best
sealing machine with
excellent quality but cheap
price
¡¡
MODEL |
SF-350 |
SF-450 |
SF-650 |
SF-800 |
Voltage (V/Hz)
|
220-240V/50-60Hz |
Motor Power (W)
|
1200 |
1400 |
1600 |
1800 |
Sealing Length (mm)
|
350 |
450 |
650 |
800 |
Sealing Width (mm)
|
8 |
Sealing
Thickness
(mm)
|
2¡Á0.3 |
Weight (kg)
|
20 |
23 |
26 |
¡¡¡¡¡¡30 |
|

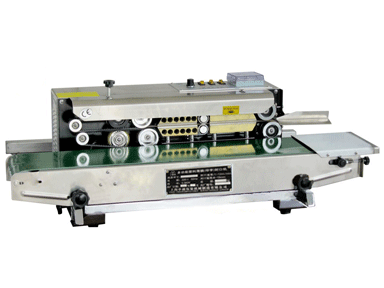

FK900CONSECUTIVE PLASTIC SEALING
MACHINE
¡¡ |
![](image/cp1_008.gif)
|
Product
Description
This series
of sealing machine adopts
electronic thermostat control
and steeples speed transmission
system. It can automatically
finish sealing continuously. The
sealing length is not limited
and the sealing can be finished
at one time. It can be set at
horizontal and ground stand.
Print sealing machine can seal
and at the same time print the
manufacture date. The mark and
printing is clear, color
optional and wearable. It also
have the advantage of quick
printing, quick dry and
character can be easily changed.
This machine is used on the
single-layer film and all kinds
of composite film in sealing and
bag making. This series of
sealing machine are abroad
applied in food, pharmacy, seed
packaging, chemical and light
industry etc.
Specifications |
FK900 |
Electrical Power
(V/Hz) |
AC
220/50 |
Sealing Speed (m/min) |
0-12 |
Sealing Width (mm) |
5-13 |
Temperature Range(¡æ) |
0-300 |
Loading Of Convey (KG) |
¡Ü5 |
Word Number |
¡Ü39pcs |
Gross Weight (kg) |
20 |
|

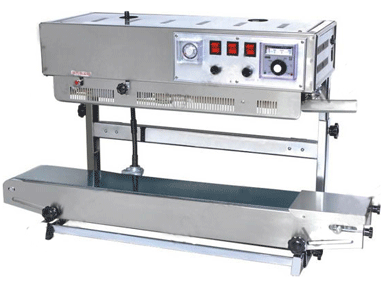

FK900A
Dual vertical and horizontal film
sealing machine
¡¡ |
![](image/cp1_009.gif)
|
Product Description
This series of
sealing machine adopts electronic
thermostat control and steeples speed
transmission system. It can
automatically finish sealing
continuously. The sealing length is not
limited and the sealing can be finished
at one time. It can be set at horizontal
and ground stand. Print sealing machine
can seal and at the same time print the
manufacture date. The mark and printing
is clear, color optional and wearable.
It also have the advantage of quick
printing, quick dry and character can be
easily changed. This machine is used on
the single-layer film and all kinds of
composite film in sealing and bag
making. This series of sealing machine
are abroad applied in food, pharmacy,
seed packaging, chemical and light
industry etc.
Specifications |
FK900A |
Voltage
(V/Hz) |
AC 220/50
|
Power
(W) |
500 |
Sealing
Speed (m/min) |
0-12 |
Sealing
Width (mm) |
5-13 |
Temperature Range( ¡æ )
|
0-300 |
Word Number |
¡Ü20Pcs |
Dimension
(L ¡Á W ¡Á H) (mm)
|
810¡Á370¡Á1200 |
Gross
Weight
(kg) |
30 |
|
|

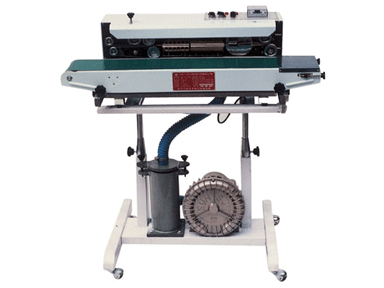

Automatic inflating film sealing
machine
¡¡ |
|
Product Description
This series
of sealing machine adopts
electronic thermostat control
and steeples speed transmission
system. It can automatically
finish sealing continuously. It
can be set at horizontal and
ground stand. This machine is
used on the single-layer film
and all kinds of composite film
in sealing and bag making. This
series of sealing machine are
abroad applied in food,
pharmacy, seed packaging,
chemical and light industry etc.
Main
Features
Applicable
to the anti-vibration packing
for fragile items, such as
puffed food. It improves shatter
resistant property after
inflating packing
MODEL |
FK900C |
Voltage (V/Hz)
|
AC
220/50
|
Motor Power (W)
|
680 |
Speed (m/min)
|
0-12
|
Sealing Width (mm)
|
5-13 |
Film Thickness (mm) |
¡¡0.10-0.80 |
Temperature Range( ¡æ )
|
0-300
|
Word Number
|
¡Ü20Pcs |
Loading Of Convey
(kg)
|
¡Ü5 |
Overall Conveyor Loading
(kg) |
¡Ü 3
|
Dimension (L¡ÁW¡ÁH) (mm)
|
920¡Á390¡Á600 |
Net
Weight (kg)
|
42
|
|
